CH-LA046 factory supplied low cost prefab house
factory supplied low cost prefab house
Cheaper and easier than normal buildings, our factory supplied prefab house is the best choice to create a modern, colorful life and a movable space. Instead of bricks and concrete used by traditional construction, steel structure is adopted as the skeleton and sandwich panel as insulation by our factory supplied low cost prefab house. Consequently, a long term durability and a good thermal resistance can be obtained by our factory prefab house. What the most exciting thing, is that the appearance and interior space layout of our factory prefab house can be customer designed and you can locate the prefab house anywhere you want.
CH-LA046 factory supplied low cost prefab house
CH-LA046 factory supplied low cost prefab house
CH-LA046 factory supplied low cost prefab house
Description of our factory supplied low cost prefab house
CH-LA046 factory supplied low cost prefab house
Mechanical performance of our low cost prefab house | |
Roof bearing load |
0.75KN/m2 |
Floor bearing load |
2.0KN/m2 |
Wind resistance |
12-Level |
Seismic resistance |
10-Magnitude |
Fire resistance |
B1 Grade |
Temperature range |
-25 to 50 oC |
Thermal conductivity |
<0.036W/(m×K) |
Noise reduction |
40db |
Lifespan |
Up to 25 years |
CH-LA046 factory supplied low cost prefab house
Sizes of our low cost prefab house | ||||
20ft prefab house | ||||
Model |
External Size(L*W*H) |
Thickness of insulation(mm) |
Internal Size (L*W*H) |
Weight |
20FT-50 |
6058*2438*2896 |
50 |
5890*2260*2600 |
2000-2500KG |
20FT-75 |
6058*2438*2896 |
75 |
5840*2210*2550 |
|
20FT-100 |
6058*2438*2896 |
100 |
5790*2160*2500 |
|
40ft prefab house | ||||
Model |
External Size(L*W*H) |
Thickness of insulation(mm) |
Internal Size (L*W*H) |
Weight |
40FT-50 |
12116*2438*2896 |
50 |
11950*2260*2600 |
3500-4500KG |
40FT-75 |
12116*2438*2896 |
75 |
11900*2210*2550 |
|
40FT-100 |
12116*2438*2896 |
100 |
11850*2160*2500 |
|
CH-LA046 factory supplied low cost prefab house
| Material details of our low cost prefab house | ||
Steel framework |
Top beam frame |
Q345,3mm galvanized channel steel, color-painted |
Base beam frame | ||
Column | ||
Purlin |
Q345,rectangle steel pipe |
|
Wall |
External wall panel |
75/100mm PU/EPS/rockwool sandwich pannel |
Internal wall panel |
50 mm PU/EPS/rockwool sandwich pannel |
|
Decorative board |
PVC |
|
Roof & Ceiling |
Roof insulation |
75mm PU/EPS/rockwool sandwich pannel |
Ceiling |
PVC panel or Gypsum board |
|
Floor |
Insulation layer |
75mm PU/EPS/rockwool sandwich pannel |
Decorative board |
PVC, bamboo plywood or floor leather |
|
Door & Window |
External door |
Sandwich door with aluminum frame/security door |
Inner door |
Sandwich door with aluminum frame/PVC door |
|
Window |
PVC sliding window/Aluminum alloy window, shutter |
|
Optional system |
Drainage system |
16-20mm diameter PVC pipe, Provide design and installation |
Electric system |
Provide design and installation |
|
Exhaust fan or air exchange hole |
steel or PVC, 250mm*250mm |
|
What can our factory supplied low cost prefab house do?

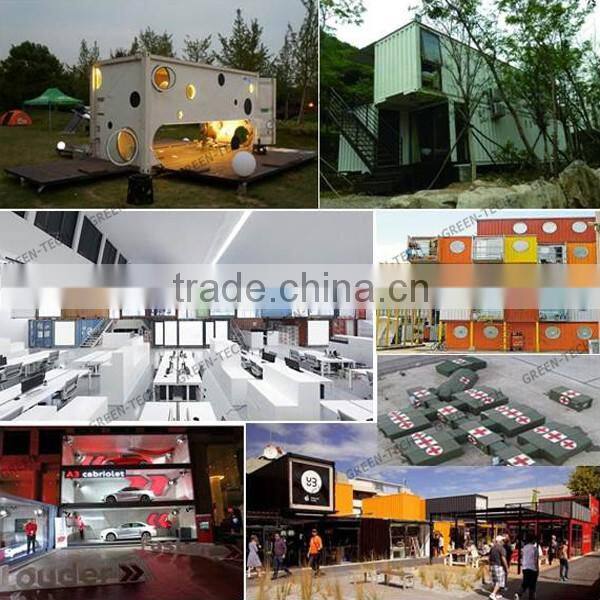

Because of easy transportation and high remoldability, our factory supplied low cost prefab house are widely used as holiday house, villa, apartment, hotel, office, shop, exhibition room, medical station, booth, kiosk, showroom, restaurant, etc.
Why choose our factory supplied low cost prefab house?
1. High remoldability, the appearance and space layout of the factory prefab house can be designed based on customer’s requirements;
2. Good thermal and sound insulation, good fire resistance and completely water proof, which can make the factory prefab house safe and comfortable;
3. Light weight but high strength enough for our factory prefab house to withstand 12 grade wind and 10 magnitude earthquake;
4. Easy transporting and relocating, you can locate the prefab house any where you want.
Why Us?
Green (Tianjin) Technology Development Co., Ltd. locates in Tianjin with total investment of 25 million U.S. dollar. Our company has always been focusing on environment improving and energy saving products, steel further processing products and corresponding all-around services.
We strictly follow the modern enterprise management mechanism and have passed the authorization and audit of ISO system. Our company owns the qualification of Environmental Engineering Contractor ( Grade Ⅲ), Steel Structure Engineering Contractor ( Grade Ⅲ) and possesses more than 20 patents.
Professional technical support |
First-class design team can give you technical advices due to the climate where you want to settle the prefab house |
Low cost |
factory price will make your cost low |
Efficient shipment |
We make every effort to ensure the optimal cargo arrangement and the lowest transportation cost |
Timely communication |
Professional sales team with more than 10 years’ experience makes the whole procedure high efficient and safe |
Contact:
CH-LA046 factory supplied low cost prefab house
For any information, please do not hesitate to contact us!
