High Density Radio Shuttle Drive-in Metal Storage Racking
1. Radio Shuttle Rack concept

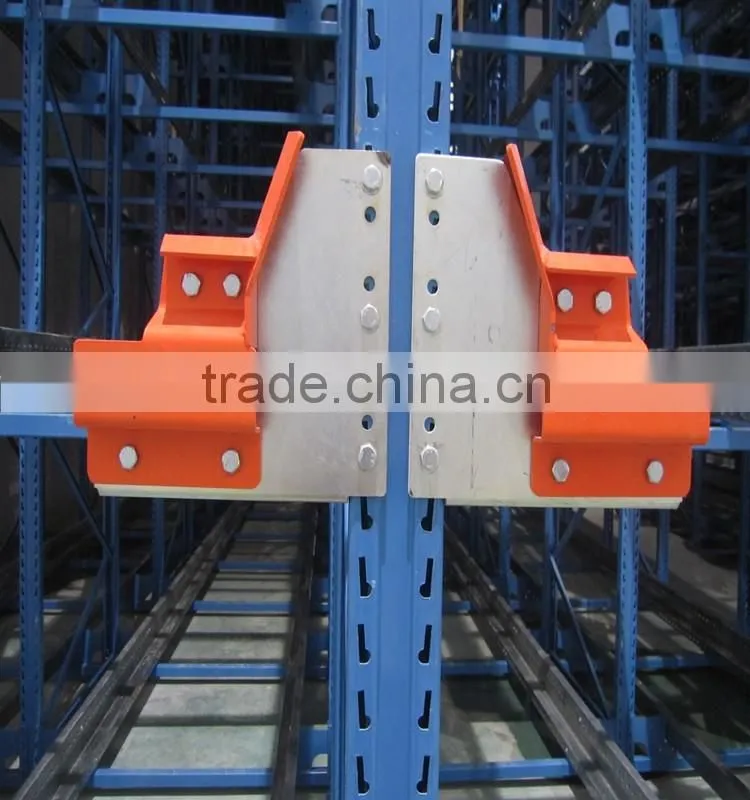

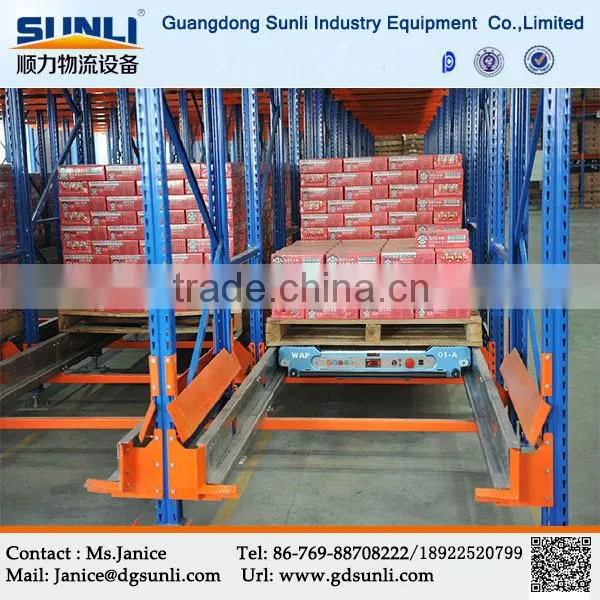

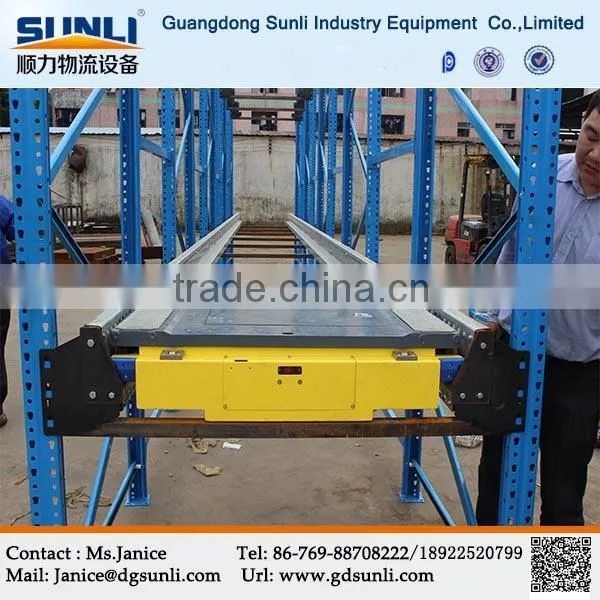

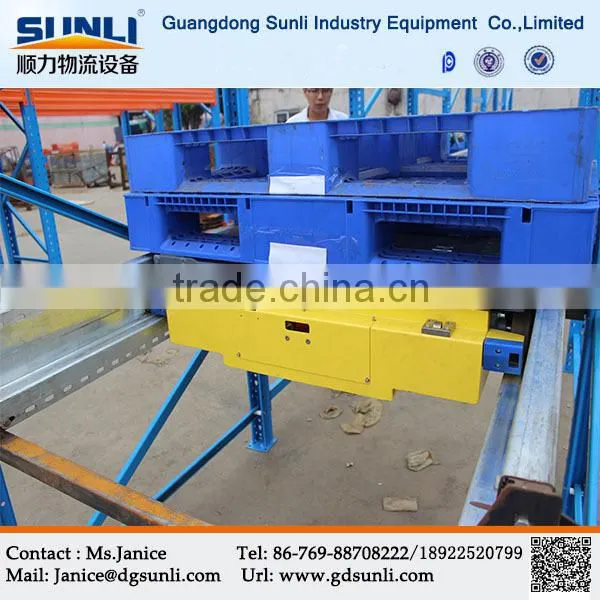

Radio Shuttle shuttle Racking system consists of supporting rack, shuttle rails and a Radio shuttle cart (Also Called Pallet Runner or Pallet Mole). The Radio shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.
When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift.
All the movements of the shuttle cart are controlled with a hand held remote control. The shuttle cart is placed in the desired lane with a forklift.
2. Advantages

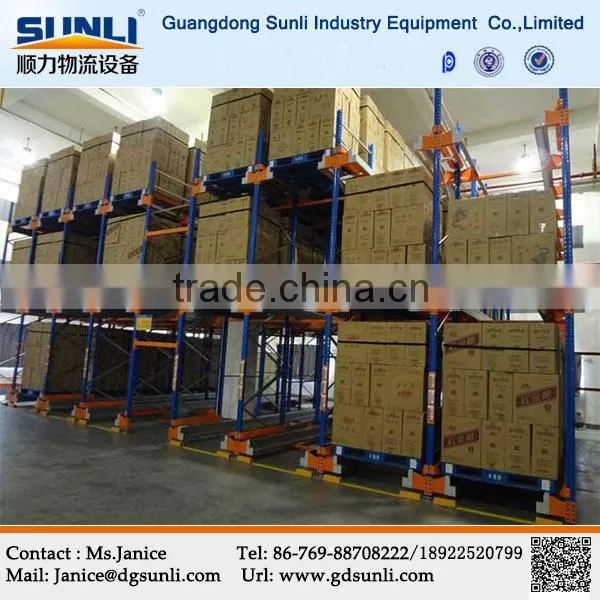

Radio Shuttle Cart is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items. Radio shuttle rack system allows for more pallets to be stored in a given area when compared to normal static rack .It also minimizes damage to the rack because the forklift does not have to travel into the racking, as is the case with drive-in rack. Accessibility is increased because all the levels can be accessed at any time. In a drive-in rack system the bottom level must be cleared first in order to be able to access the higher levels.
- Goods can be stored in the warehouses with highest density and low cost.
- Storage Style: FIFO or FILO, Optional tunnel picking.
- As each pallet only needs to be positioned at the beginning of the deep lane storage it increases efficiency within operations.
- Better safety and anti-seismic performance than drive in racks.
- Technical Specifications.
- Nominal Loading capacity : 500 KGS~1200KGS
- Running Speed: Max.1.1M/S
- Operation Methods: To be operated manually or vehicle-mounted or Radio remote control
- Temperature in the freezer:-30°C
Whole procedures for manufacturing rack:

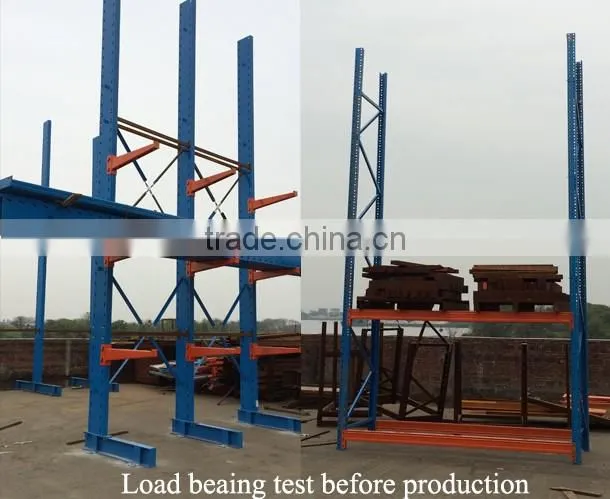

We will do rack loading test, to make sure quality and safety of rack
Our stoage rack have been strictly passed by international standards, to make sure 99% satisfaction.
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many bays you want
D) How many layers for each bay that you want
E) The loading capacity of each layer
F) Choose steel panel or wooden veneer
G) The RAL color you want
Accessories for rack
Supporting tools matched in pallet style rack
Logistic equipment used in warehouse
1. Q: Are you a factory or trading company?
A:we are a manufacturer for storage racking.
2. Q: Where is your factory located? How can I visit there?
A:Our factory located in DongDuan City Guangdong Province ,China ,You can fly to Guangzhou or Shenzhen airport directly .We will pick you up on Guangzhou or Shenzhen international .All our clients ,form home or abroad ,are warmly welcome to visit us!
3. Q: What is the term of payment?
A: 1) T/T payment. 2) LC
4. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.
5. Q: Which port will be used as loading port?
A: Shenzhen and Guangzhou port.
6. Q: What is delivery times?
A: It depends on the order quantity and racking types
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
