Lower Production Cost Intelligent Used Oil Distillation Equipment/Waste Oil Recycling Plant
Jinzhen machinery manufacturing Co,Ltd is located in the international business center of China, Xinxiang city, Henan province. The enterprise is engaged in designing waste tire, waste rubber, waste plastic and other organic solid wastes pyrolysis equipment and manufacturing kinds of mechanical equipments. Main business: turn waste tire, waste rubber, waste plastic and other organic solid waste into fuel oil though pyrolysis, crude oil refining, oil sludge pyrolysis process.
Customer First ! Quality First !
Distillation process schedule:
3 days can refine 10 tons crude oil, 3 days as a cycle, you can continually feed the crude oil in the duration
the proportion of diesel is about 85%-90%

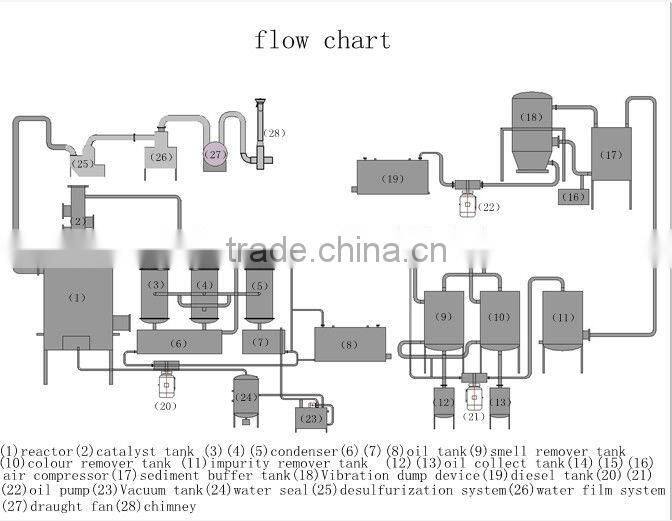

Information of machine
1. Heating system
Reactor using 245R boiler steel and the thickness is between 14mm and 18mm.(The thickness would be adjusted according the requirements of the customers). The main engine uses horizontal-type of 360ostructure-0.4 r/min
2. Separation system:Gas separator & Depositing tank
Depart the heavy oil and impurities from the oil gas to purify the oil.

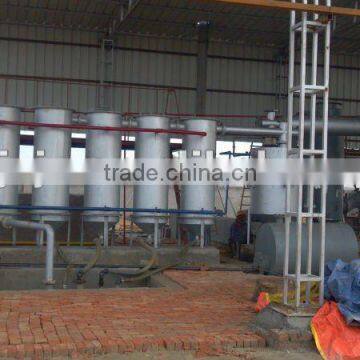

3. Condensing system
a. The "S" shape extends the condensing area.
b. The open pool makes natural cooling viable, which is energy conservation and free of danger
c. Cooling down quickly with the pipeline diameter of 219mm and length of 6m
d. The elbows make it easier and convenient to clean and maintain
e. Just need to make up the vaporized water, it's water conservation
f. Condensing tower and vertical condensers can be added based on the customers' requirements
4. Exhaust disposal system:Desulfurization dedusting, Water film cyclone
1) Desulfurization dedusting: remove the sulphur(when use coal as fuel) and dust
2) Water film cyclone: for the second removal and the smoke from the waster film cyclone is white, but pollution-free.
5. Waste gas recycle system:Water seal & Spray fire gun
In the process of refining oil, when the gas is heated up to 150 , it will produce a large amount of gas-CH4& C4H8 , which cannot convert to liquid at normal temperature and normal pressure. However, these gases can be used as fuel, which is not only environment protection but also energy conservation.
We have different machines and have different prices
Technical comparison among refined diesel, miscella and GB 0 diesel
Item |
Refined diesel |
Miscella |
GB 0 diesel |
Oxidation stability |
2.0 |
1.5 |
2.5 |
Sulphur content |
0.005 |
0.005 |
0.05 |
10% carbon residue on residuum |
0.25 |
0.25 |
0.3 |
Ash content |
0.008 |
0.1 |
0.01 |
Copper corrosion (/class) |
1.1 |
1.1 |
1..0 |
Moisture content |
Trace |
1.0 |
Trace |
Mechanical admixture |
NO |
NO |
NO |
Density |
0.85 |
0.88 |
0.83-0.87 |
Condensation point (°C) |
-10 |
-5 |
0 |
Flash point (°C) |
45 |
40 |
55 |
Kinematic viscosity |
2.5 |
5.0 |
3.0-8.0 |
Fuel value |
9500 |
10000 |
8500 |
Chroma |
1.2 |
4.5 |
≤3.5 |
Cetane number |
43 |
38 |
36 |
The terms of payment:
1). 30% advance payment within 7 days after sign the contract by T/T.
2).70% after receiving the copy of Bill of lading from the seller by T/T.
our certification
If you want to know some about our equipment , please contact with me ! Thank you !

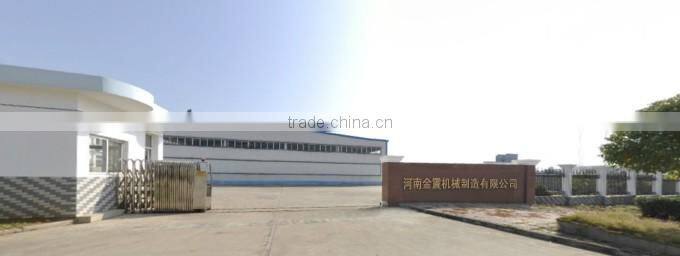

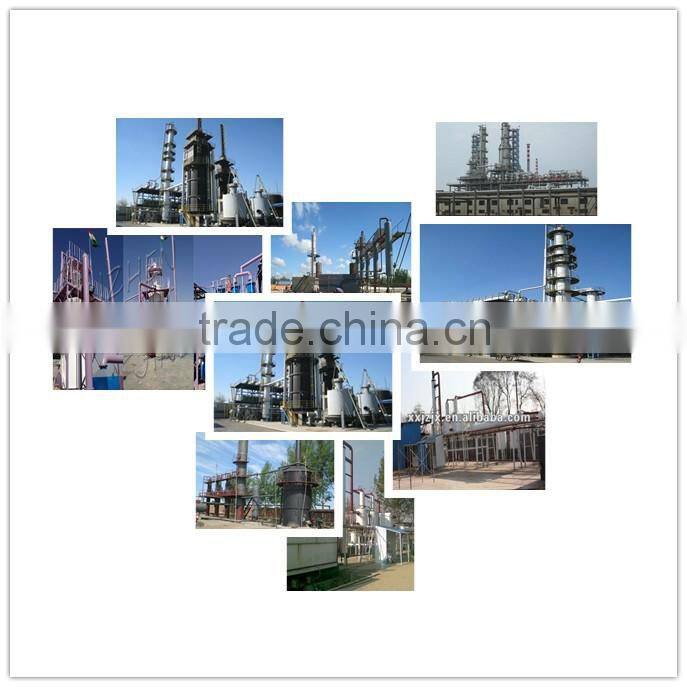

welcome to our factory !!
distillate the crude oil to diesel// distillate the crude oil to diesel
