Q235 Warehouse Steel Floor Rack Mezzanine
Mezzanine rack is under the situation of limited factory floor area, utilize steel beam and metal plate for distinguishing on the original storage area. Each floor can be placed in different kinds of shelves, shelf structure aims in supporting the upper floor, improve warehouse height, increase the space utilization. Top layer should only be put light items, not suitable for heavy handing equipment; carry to the upper items should be mounted the vertical transportation equipment; Suitable for all kinds of items stored.
(1)High-density storage style, specially for loosening or small box goods
(2)Mezzanine can come true double level or triple level walkway for storage manually,save floor
space.
(3)Medium-duty with loading capacity of 50-300kg/layer and heavy-duty with loading capacity of 300-1000kg/layer
(4)Working with hoisting machine, pallet jack, store manually for small or loosening goods.
About racking details:
1.Size L1500-3300mm * D800-3000mm *H3000-10,000mm
( Specail sizes also avaiable to specific storage needs. )
2.Loading capacity:1T-5T/level
3. Upright section: 80*60mm, 90*60mm, 100*60mm, 88*68mm, 100*68mm, 110*68mm,
120*68mm, etc
4. Box beams section: 80*45mm, 90*45mm, 100*45mm, 110*45mm,
120*45mm, 130*45mm, 140*45mm, etc.
5. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors
and all necessary components.
6.Material:Q235B
7.Color:High-quality Powder Coating Finish.
upright frames—blue/RAL5015;beams —orange/RAL2004 (various colors is available)
8.Quick Delivery:Within 25 days for ordinary order quantity. Big production capacity allow us in a
position to make quick delivery.
9. Certification:SGS and AS4084 , ROHS and ISO9001 ;CE
Mezzanine floor with standard shelf rack system
Mezzanine floor with gravity floor rack
H-Beam structure platform

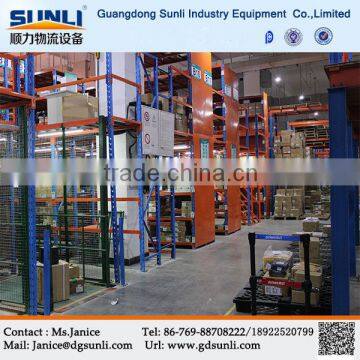

Light duty shelf rack in mezzanine floor system
General procedures for manufacturing rack
Packing and shipping details for rack
Our racks have been strictly passed by internation standards:
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many bays you want
D) How many layers for each bay that you want
E) The loading capacity of each layer
F) Choose steel panel or wooden veneer
G) The RAL color you want
Accessories for rack
Supporting tools matched in pallet style rack
Logistic equipment used in warehouse
1. Q: Are you a factory or trading company?
A:we are a manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory located in DongDuan City Guangdong Province ,China ,You can fly to Guangzhou or Shenzhen airport directly .We will pick you up on Guangzhou or Shenzhen international .All our clients ,form home or abroad ,are warmly welcome to visit us!
3. Q: What is the term of payment?
A: 1) T/T payment. 2) LC
4. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.
5. Q: Which port will be used as loading port?
A: Shenzhen and Guangzhou port.
6. Q: What is delivery times?
A: It depends on the order quantity and racking types
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
