CH-LA074 luxury prefabricated houses container
Luxury Prefabricated Houses Container
Luxury prefabricated houses container, a modern and safe architecture mode. Our CH-LA074 luxury prefabricated houses contianer uses steel structure as skeleton and sandwich panel as insulation. With advantages of high remoldability, low cost, easy transportation and environment friendly, our luxury prefabricated houses container have replaced traditional buildings in many situations. At present, our luxury prefabricated houses container have been widely used in construction site, commercial purpose, industry, civil, military and many other fields.
CH-LA074 luxury prefabricated houses container
CH-LA074 luxury prefabricated houses container
Details about CH-LA074 luxury prefabricated houses container
Dimensions of our luxury prefabricated houses container
10ft prefabricated houses container | ||||
Model |
External Size(L*W*H) |
Thickness of insulation(mm) |
Internal Size (L*W*H) |
Weight |
10FT-50 |
3028*2438*2896 |
50 |
2860*2260*2600 |
800-1200KG |
10FT-75 |
3028*2438*2896 |
75 |
2810*2210*2550 |
|
10FT-100 |
3028*2438*2896 |
100 |
2760*2160*2500 |
|
20ft prefabricated houses container | ||||
Model |
External Size(L*W*H) |
Thickness of insulation(mm) |
Internal Size (L*W*H) |
Weight |
20FT-50 |
6058*2438*2896 |
50 |
5890*2260*2600 |
2000-2500KG |
20FT-75 |
6058*2438*2896 |
75 |
5840*2210*2550 |
|
20FT-100 |
6058*2438*2896 |
100 |
5790*2160*2500 |
|
40ft prefabricated houses container | ||||
Model |
External Size(L*W*H) |
Thickness of insulation(mm) |
Internal Size (L*W*H) |
Weight |
40FT-50 |
12116*2438*2896 |
50 |
11950*2260*2600 |
3500-4500KG |
40FT-75 |
12116*2438*2896 |
75 |
11900*2210*2550 |
|
40FT-100 |
12116*2438*2896 |
100 |
11850*2160*2500 |
|
Materials of our luxury prefabricated houses container
Framework | |
Top beam frame |
Q235, 4mm or 5mm galvanized channel steel |
Base beam frame | |
Column | |
Purlin |
Q235, 4mm or 3mm steel pipe |
Wall | |
External wall |
1.6mm or 1.8mm color steel sheet |
Insulation |
50/75/100mm PU/EPS/Rock wool/Glass wool |
Glass wall |
Transparent glass |
Decorative board |
PVC |
Roof | |
Steel roof |
1.6mm or 1.8mm color steel sheet |
Sandwich panel roof |
50/75/100mm PU/EPS/Glass wool sandwich panel |
Ceiling |
PVC panel or Gypsum board |
Floor | |
Decorative board |
PVC, bamboo plywood or floor leather |
Bearing plate |
1.6mm or 1.8mm color steel sheet |
Insulation |
50/75/100mm PU/EPS/Glass wool |
Door | |
Front Door |
Plastics-steel/Synthetic wood, 2000 x 750 mm |
Room Door |
PVC/Synthetic wood, 2000 x 600 mm |
Window | |
Material |
Plastics-steel/PVC, single glass |
Size |
1500 x 1000 mm, customized |
Optional systems | |
Electric system |
Customized design |
Drainage system |
16-20mm diameter PVC or steel pipe |
Exhaust fan or air exchange hole |
steel or PVC, 250mm*250mm |
Floor plans of CH-LA074 luxury prefabricated houses container

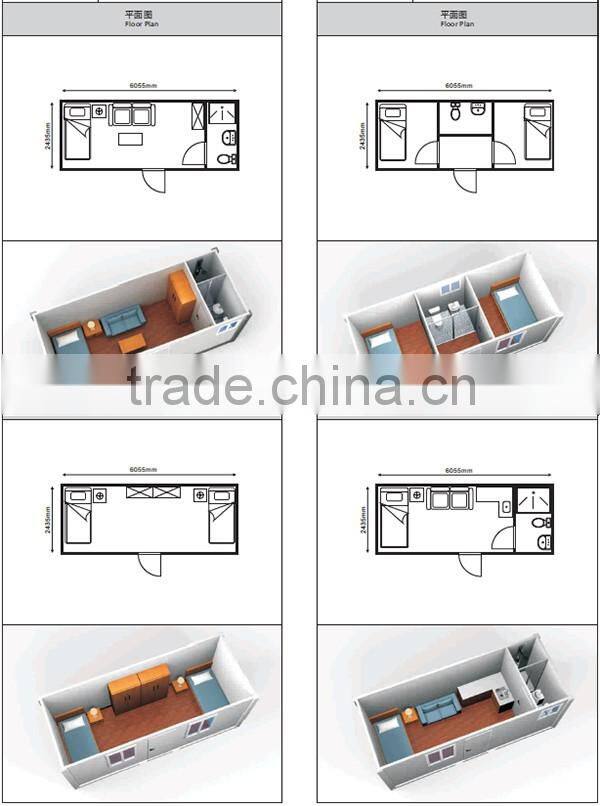

20ft prefabricated houses container floor plans
40ft prefabricated houses container floor plans
Features of CH-LA074 luxury prefabricated houses container
1. Attractive Appearance | |
The size, color and decoration of the luxury prefabricated houses container can be customer designed. | |
2. Safe and Comfortable | |
The sandwich panels have good heat and sound insulation, which is also known for its good fire resistance. And owing to the drainage system, the house is completely waterproof. | |
Thermal conductivity |
<0.036W/(m×K) |
Temperature range |
-40 to 50 ℃ |
Fire resistance |
B1 Grade |
Noise reduction |
40db |
| |
3. Convinient Transportation | |
The luxury prefabricated houses container can be easily transported by using a hoist and a truck. | |
4. High Quality | |
High quality light steel is adopted by our luxury prefabricated houses container. Although with a light weight, the house is strong enough to face heavy impacts. | |
Roof load |
0.75KN/m2 |
Floor load |
2.0KN/m2 |
Wind resistance |
12-Level |
Seismic resistance |
10-Magnitude |
5. Long Lifespan | |
Steel materials of the luxury prefabricated houses container have been surface treated by galvanizing and multi-layer coating. This luxury prefabricated houses container can serve at least 25 years. | |
