IP65 Led Street Light/6000K-6500K Solar Led Street Light/street Light Led

IP65 Led Street Light/6000K-6500K Solar Led Street Light/street Light Led photo-1
US$ 100 - 280 MOQ: 5 Sets
Key Specifications
Get Latest Price
LED Light Source:
LED
Input Voltage(V):
85-265
Lamp Power(W):
112
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source LED
Input Voltage(V) 85-265
Lamp Power(W) 112
Lamp Luminous Flux(lm) 11200
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Cool White
Working Temperature(℃) -40, 55
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP65
Certification CE
Warranty(Year) 3
Place of Origin Guangdong, China
Brand Name SYNNO or OEM
Model Number SL-ST-ST6-112W

Specifications

led street light

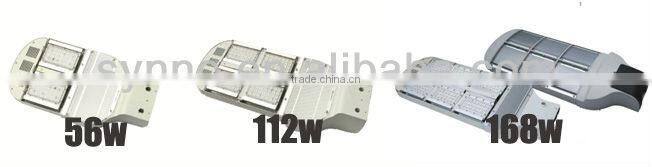

1.LED Power: 56/112/168*1W
2.Initial flux:100-110lm/W (PW)
3.Input Voltage:AC85V~265V

IP65 led street light/6000K-6500K solar led street light/street light led



LED street light Characteristic



OPTICAL

LED Power Consumption

56X1w

112X1w

168X1W

System Power Consumption

70w

130w

180W

LED Initial Flux

100lm-110lm/per watt (*Pure White 6000K-6500K)

Lamp Maintain Flux

(*After the lens and thermal stabilization)

75lm-85lm/per watt (*Pure White 6000K-6500K)

Illumination (Enadir)

(LED Power=168W PW6500K)

Mount Height= 6M : >102lux

Mount Height= 8M : >57lux

Mount Height= 10M : >37 lux

Mount Height= 12M : >26 lux

CRI

WW: Ra>60 PW:Ra>70

Light Distribution Curve

Asymmetric (Bat Wing)

Beam Angle

140 Degrees

Light Decay

< 15% (20,000 hours)

ELECTRICAL

Input Voltage

AC85V-AC265V, AC277V+ (50Hz-60Hz)

Working Voltage

36VDC

TJ

60 °C ±10 %

Lamp Efficiency

>88%

Power Factor

>0.95

IP Grade

IP65

MECHANICAL

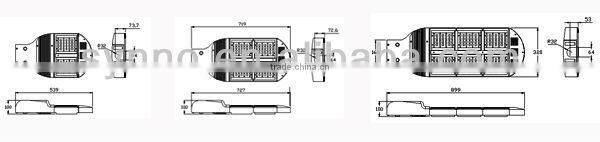

Dimensions

L76*W32*H7.5cm(112W)

Net Weight

10.5KG±5 %(112W)/7.5KG±5 %(56W)

13.5KG±5 %(168W)

Material

Aluminum Alloy

Working Environment

Temp: -40°C ~ 55°C Humid:10%-90%

Dimension of pipe for installation

Φ62mm











































































Description



ST6 LED Street Lights are mainly used in street, roadway, bridge, housing project, public park, parking lot, yard and other facilities with need of high-brightness general illumination during the night.



Features

  1. Green and Environmental Protection: no lead, no mercury, no environmental pollution;
  2. Universal Input Voltage-85-264vAC full voltage range constant, constant-current PWM technology, high efficiency, low-heat, high-precision constant current;
  3. No Pollution to Power Network: Power factor ≥0.9, THD≤20%, EMI apply with the global universal index, reduce the power loss and transmission lines to avoid contamination of the network of high frequency interference;
  4. Work under Low-voltage and Low-Heat, Safe and Reliable: LED junction temperature can be controlled under an ideal temperature (TJ<60°C Ta=25°C ambient temperature);
  5. Environmental friendly and energy-saving. Contains no mercury or lead. Consume 50%-70% less power than HID street light

IP65 led street light/6000K-6500K solar led street light/street light ledIP65 led street light/6000K-6500K solar led street light/street light led

IP65 led street light/6000K-6500K solar led street light/street light led

IP65 led street light/6000K-6500K solar led street light/street light led

  • Packaging

1pcs/CTN or 4 pieces foams inside.

IP65 led street light/6000K-6500K solar led street light/street light led

  • Payment Mathod:

1.Paypal

2.Credit Card

3.Wire Transfer

4.West Union

5.L/C 30% advance; Balance on fax copy of BOL

  • Shipping Mathod and Shipping time.

1. Shipping by EXPRESS:Sample can be delivered within 2-5 days on customer request, around 5-7 working days to arrive;

2. Shipping by SEA : Big order can be delivered within 10-25 days on customer request,

  • After-sales Policy:

There are two-year guarantee for the inserted driver of the light and three-year guarantee for the led source on the condition of the light being used under the normal environment, suitable maintenance and storage; any abnormal using is without guarantee. We can provide the repair, exchange (the components and parts) or replacement with a new item. The three schemas are for your option. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.

  • Pictures and Label Policy

We offer free pictures with your logo if you have experience in our store. We also accept change label business. Custom label's minimum order quantity is 300, it cost USD50.

  • Factory Photo

IP65 led street light/6000K-6500K solar led street light/street light ledIP65 led street light/6000K-6500K solar led street light/street light ledIP65 led street light/6000K-6500K solar led street light/street light ledIP65 led street light/6000K-6500K solar led street light/street light ledIP65 led street light/6000K-6500K solar led street light/street light ledIP65 led street light/6000K-6500K solar led street light/street light led
