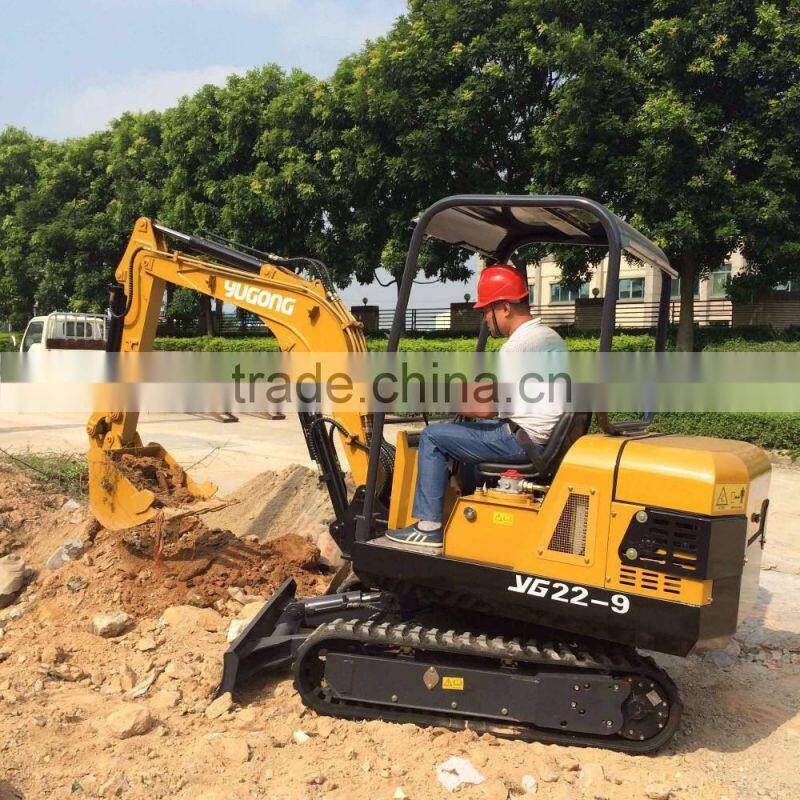

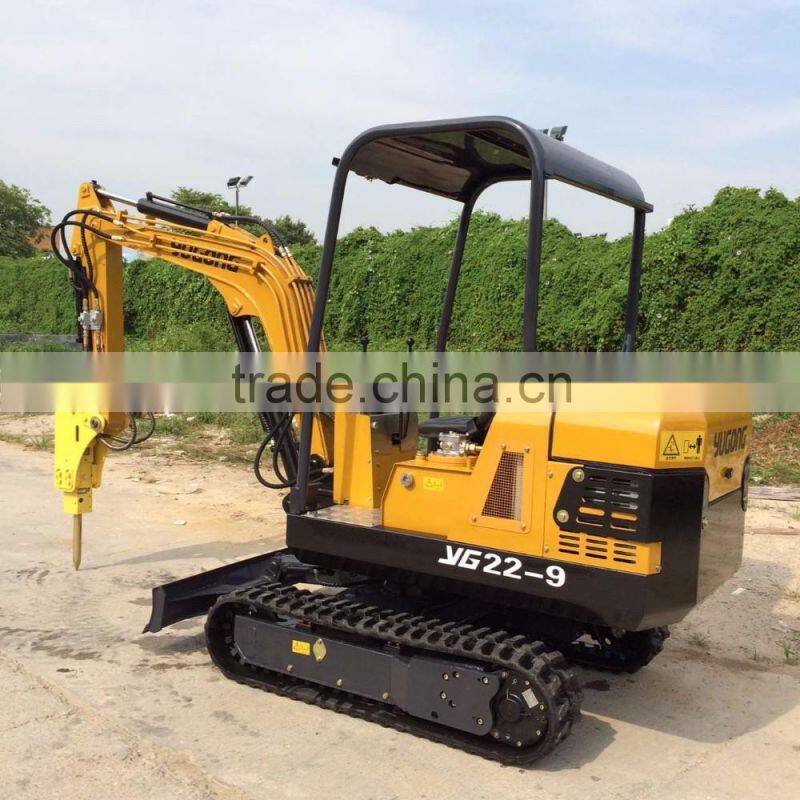

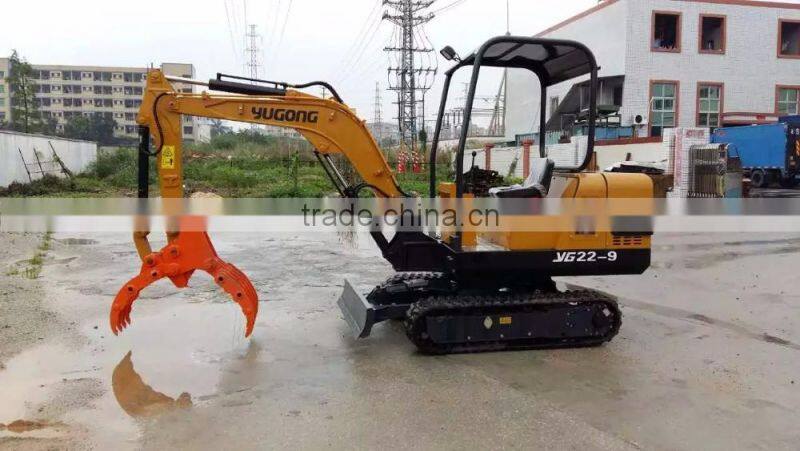

China Mini Hydraulic Crawler Excavator YG22-9 for Sale

Name: China Mini Hydraulic Crawler Excavator YG22-9 for Sale
Brand: GT
Availability: InStock

FOB Price

US$ 20,700 - 22,700 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	GT
Model Number	YG22-9	Condition	New
Moving Type	Crawler Excavator	Operating Weight	12KN
Bucket capacity	0.1m3	Maximum Digging Height	3720mm
Maximum Digging Depth	2630mm	Machine Weight	2T
Max Digging Radius	4250mm	Rated Speed	2.7Km/h
Certification	ISO9001	After-sales Service Provided	No overseas service provided

Technical Parameters

Serial number	Project
1	Walking motor	American Eaton
2	Rotary motor	American Eaton
3	Multi way valve	Husco-kayaba
4	Oil pump	Jining
5	Cylinder	Sego
6	Engine	Jiangsu quanchai engine type 390 20KW (optional Japanese original imported Yanmar engine)
	Project	parameter
1	Engine power	20kw/2200rpm
2	Hydraulic system	16MPa
3	Quantitative pump	2x26.4+6.6L/min
4	Maximum digging force	12KN
5	Gradient	30°
6	Ground specific pressure	32Kpa
7	Maximum traction	15KN
8	Walking speed	2.7Km/h
9	Platform rotation speed	13rpm
Operating range unit: mm
1	Max mining height	3720
2	Max unloading height	2260
3	Max mining depth	2630
4	Max digging radius	4250
5	Max ground level mining distance	416
6	Min radius of Max mining height	2750
7	Min turning radius	1850
8	The maximum soil depth of soil pile	250
9	Push soil shovel maximum lift height	230
Dimension unit: mm
1	Total length	4120
2	Total height	2250
3	Width of machine	1320
4	Track width	250
5	Track length	1621
6	Wheel span	1261
7	Platform turning radius	1290
8	Height from ground	235
9	Boom end total height	1430
10	Platform width	1130
11	Hood height	1280
12	Platform height	490
