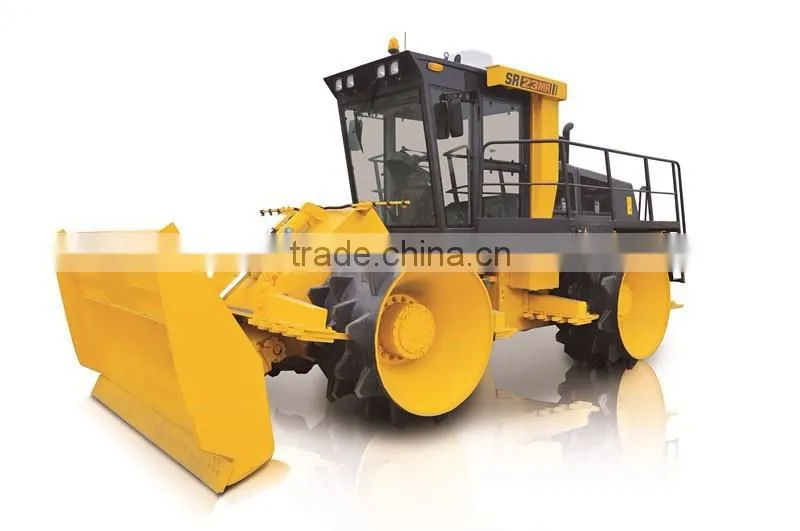

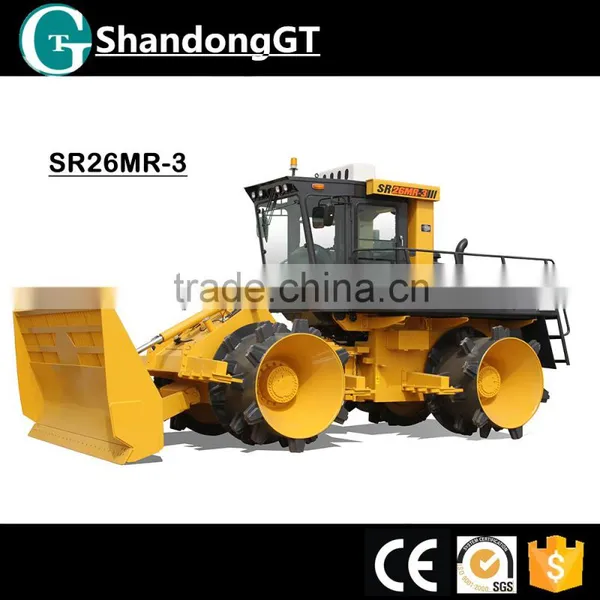

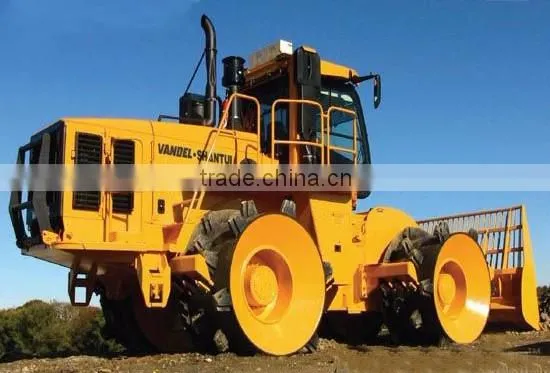

Factory Delivery 26ton SHANTUI Landfill Compactor SR26MR-3 for Sale With Best Quality

Factory Delivery 26ton SHANTUI Landfill Compactor SR26MR-3 for Sale With Best Quality photo-1
US$ 109,200 - 110,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Landfilling
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Landfilling
Power Type Diesel
Brand Name SHANTUI
Model Number SR26MR-3
Place of Origin Shandong, China
Power(W) 187kw
Dimension(L*W*H) 7940*3660*3925MM
Weight 26000 kg
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Overseas service center available
Product Description

Main Features

Reliable power system
SDEC C6121ZG16G water-cooling engines have the power strong enough to keep the whole machine at the best working status, guaranteeing the quality and featuring the efficiency and energy-saving.
Excellent drive system
This drive system is so designed and manufactured as to specially fit the harsh garbage disposal environment, providing the more powerful productivity and the lower operational cost per hour.
Strong compacting capacity
The compactor distributes its weight equally to the axle, endowing the super – strong linear compaction pressure to the compacting wheels. Therefore, the compacting wheels not only trash and compact the trashes, but also have the sufficient corrosion resistance.
Comfortable driving environment
●The full-closed cab could keep the operator away from the harsh working environment. In addition, the equipment traveling system is controlled with the single-ever handle and the equipment with the steering wheel, effectively improving the working efficiency and reducing the labor intensity.
●Lifting of the shovel is controlled with the mechanical handle, easy and useful. The longitudinal-adjustable and comfortable seat, left-right reversible handle, retractable seatbelt and A/C make the work more comfortable.
Optimal safety design
●The optical monitor inside of cab is a safety assurance for the compactor needing to reverse frequently.
●ROPS/FOPS out of cab could guarantee the driver’s safety under the extreme conditions.
Good maintenance performance
●The whole-enclosed vehicle body could effectively prevent the garbage from getting in, prolonging the service life.
●In order to facilitate the maintenance and service, all the parts to be maintained have the buckles, improving the machine utilization.
Advanced kits
The key parts of engines, drive system and hydraulic system are strictly selected from the first-class worldwide suppliers, together with the advanced supporting technologies, so as to make sure the product performance and the reliability.


Technical Parameters
Operating weight(kg)
26000
Axle load,front(kg)
13000
Static linear load, Front/Rear
650
Working width(mm)
3360
Minimum turning radius(mm)
7250
Drum diameter(mm)
1636
Steering angle(°)
±36
Oscillating angle(°)
±8
Max. climbing ability(%)
100
Max.lifting height(mm)
1150
Max.cutting depth(mm)
165
Blade capacity(m3)
11
Wheel base(mm)
3500
Min.ground clearance(mm)
435
Forward speed(km/h)
4.82
7.66
11.6
Reverse speed(km/h)
4.82
7.66
-
Engine model:
Shangchai SCC11CB255G2B1
Rated power(kw)
187
Rated speed(rpm)
200
Overall length(mm)
7940
Overall width(mm)
3660
Overall height(mm)
3925
Application

Applications

QS300 trash compactor is equipped with the original imported Cummins QSM11 electric-control engine with the powerful pushing force and the compacting ability, specially suitable for paving and highly compacting trashes. The articulated frame, the swing type rear axle and the four large-diameter compacting wheels could keep the machine steady and balanced at the any road or slope.
As the large-scale compacting device aiming at the high-end market, this machine breaks the pattern of domestic high-end compactor market monopolized by the oversea companies.
