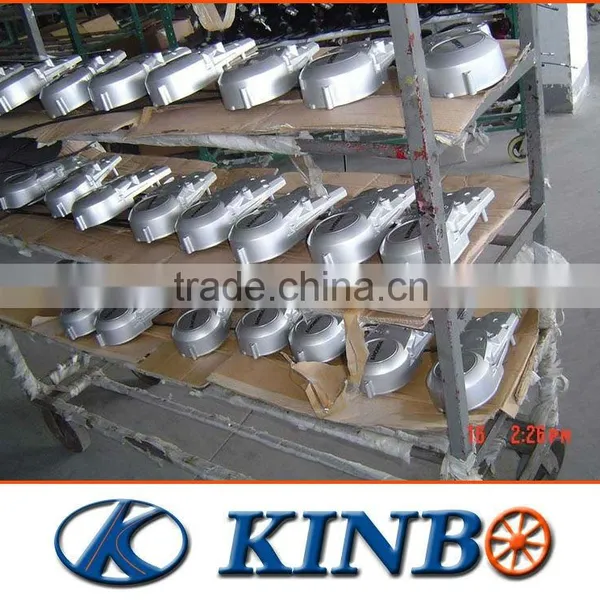

Help CenterAx100 Engine Cover
Negotiable
MOQ: 60 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Kinbo & Fastran
Model Number:
KB100-7 FR100-7 AX100
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
Kinbo & Fastran
Model Number
KB100-7 FR100-7 AX100
Specifications
Focus the lastest designHigh performance with powerful engine
Comfortable for riding with economic fuel consumption
- We will deliver what we promise.
- We will be accountable for our performance.
- We will work as a team to deliver the best possible results.
- We will treat our customers and distributors with respect, honesty and professionalism.
KINBO WILL HELP YOUR BUSINESS FASTRAN GROWING !!
Main technical specification:
Loading quantity: |
60units/20GP, 126units/40FCL, 144units/40HQ |
Dimension ((L×B×H)mm): |
1865×725×1050 |
Carton size: L×W×H: |
1480*370*750 |
Wheel base (mm): |
1215 |
Min.Ground Clearance (mm): |
140 |
Dry Weght: |
82kg |
Number of Axles: |
2 |
Engine Type: |
Vertical Single-cylinder, air-cooled,2-stroke |
Engine model: |
1E50FMG |
Bore×Stroke: |
50mm*49.5mm |
Displacement: |
97ml |
Maximum Power: |
6.5kw/7500r/min |
Maximum Torque: |
8.0N.m/6500r/min |
Clutch: |
Manual clutch, Wet multi-plate |
Lubrication: |
Auto separate lubrication |
Start: |
Kick / Electric start |
Brake: |
FR/RR drum brake |
Ignition: |
C.D.I |
Max. Speed (km/h): |
80km/h |
Front Type Size: |
2.50-18 |
Rear Type Size: |
2.50-18 |
