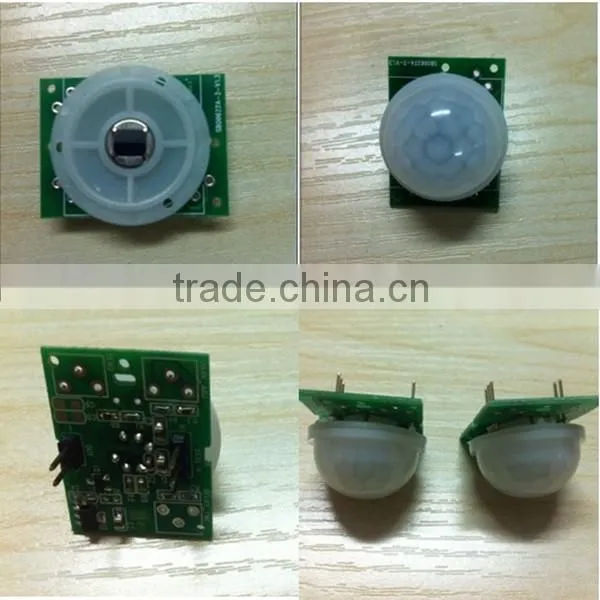

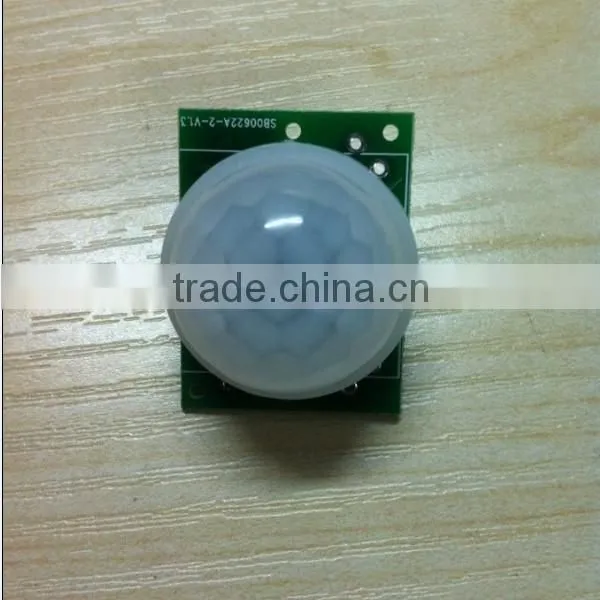

Small Body PIR Motion Detector sensor module
Features and Electrical Specification
Compact size: 24*32 mm
Supply current: DC3V-24V
Current drain :< 0.1mA
Voltage Output: High level signal: 3V, Standby output is 0V
Input 3-24V, Output 3-24V
TTL output: TTL output can be directly connected to micro-controller or logic device
High sensitivity
Delay time: 2S-70min(adjustable)
Operation Temperature: -20-60°C

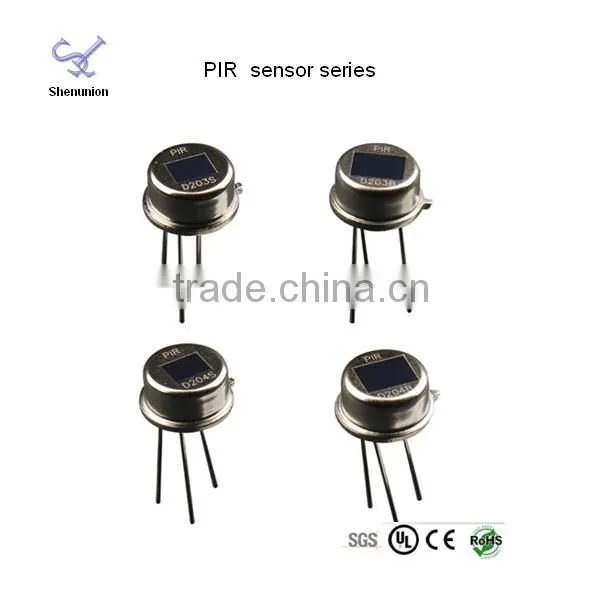

Infrared sensor: dual element, low noise, high sensitivity
Detecting length:6-8m(adjustable)
Detecting Angle:120°
Light sensor:included(3-10lux adjustable)
Lens information
Lens diameter: 23mm (default), detecting angle≤120 ° , detecting range<8M

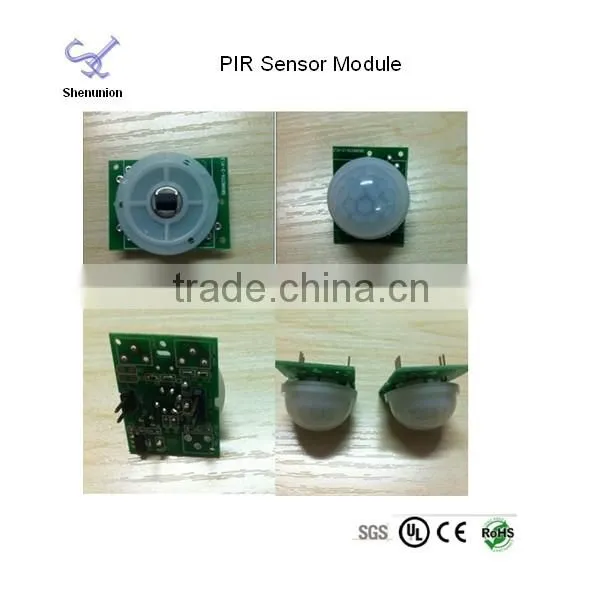

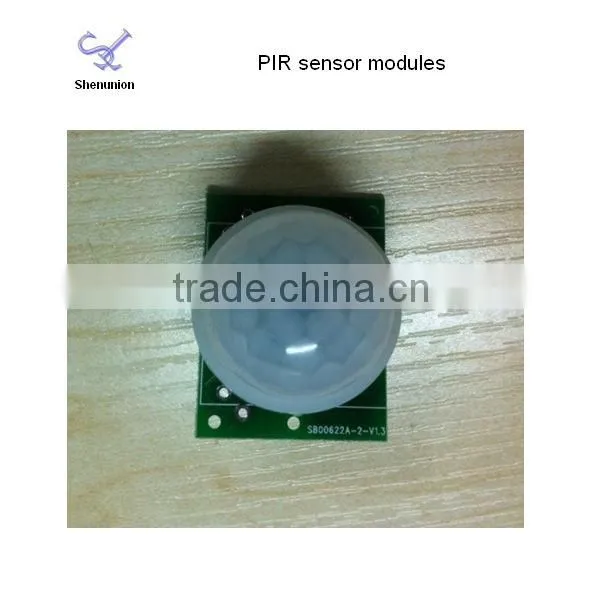

Picture:
PCB & PCB Assembly :
Industrial temperature controller series:
Logistics:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items will normally be shipped within 3 working days after the payment confirmed.
2. Items will be shipped by DHL/FedEx /TNT/ UPS /EMS or others upon request. Please contact us to choose the best one.
Attention:
3. Shenunion cannot take responsibility for any accidents, delays, or other issues caused by forwarder.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. Standard return policy applies for one month after the arrival date of your order.
2. If you find the items you have received are not of the highest quality, please simply return them to us for replacement or refund.
3. If the items are defective please notify us within 3 days of their arrival.
4. Any items returned for refund or replacement must be returned in their original condition.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Skype:jessicaxx99
Other Policies:
1. Given MOQ’s are negotiable.
2. One month warranty for refund or replacement
3. Not all samples are free.
4. During the order process we will send you a PI (terms of shipping, aggregate amount, etc.) after receiving your parts list.
We also take OEM,ODM orders upon request, if you have any questions, feel free to contact us.
