Specifications
LED panel lampCE,RoHS,SASO
6w led panel lamp
good quality Reform panel lamp
led lamp 6w

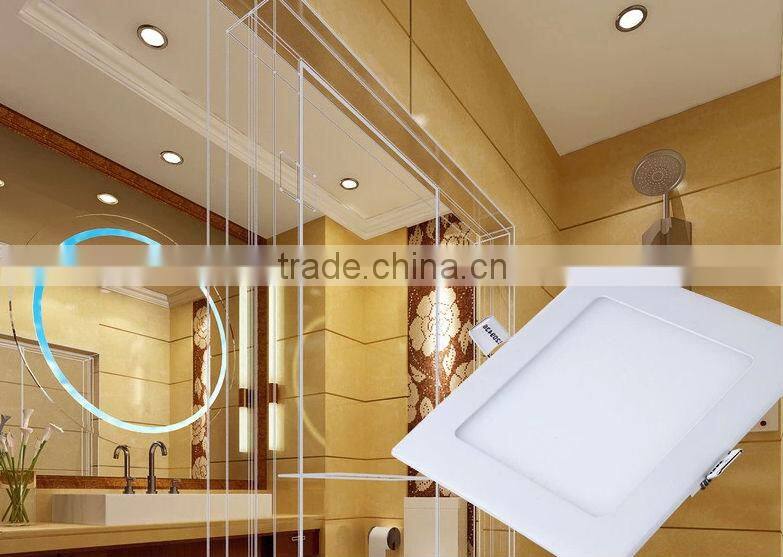

china Ultra thin Square led panel lights lamps LED Panel 3w 6w 9w
led panel lamp features:
1. Energy saving: low power, high efficiency
2. Ultra thin: full aluminum body with strong texture
3. Safe: Mercury and lead free , completely away from the electric radiation
4. Long acting: up to fifty thousand hours lifespan, six times as FCL lights
5. Precise: hermetically sealed, clean and refreshing , anti- mosquito, dust and moisture
6. Eye protective: soft natural white light , no flicker or glare
panel ligth tem No. |
CL-PL-S-3W |
CL-PL-S-6W |
CL-PL-S-9W |
CL-PL-S-12W |
CL-PL-S-15W |
CL-PL-S-18W |
Lamp Power |
3W |
6W |
9W |
12W |
15W |
18W |
Lamp Luminous Flux |
280lm |
550lm |
800lm |
1080lm |
1380lm |
1680lm |
G.W |
0.17kg |
0.26kg |
0.38kg |
0.5kg |
0.65kg |
0.78kg |
Input Voltage |
AC100V-240V (50-60Hz) |
|||||
Diameter |
90*90 |
120*120 |
130*30 |
160*160 |
180*180 |
200*200 |
|
Lamp Luminous Efficiency |
85lm/w |
|||||
CRI (Ra>) |
70 |
|||||
Color Temperature(CCT) |
Cool White/Natural White/Warm White |
|||||
Beam Angle |
150° |
|||||
Working Temperature |
-25 – 45°C |
|||||
Working Lifetime |
30000Hrs |
|||||
led panel light IP Rating |
Ip50 |
|||||
panel lightMateria |
Aluminum Alloy |
|||||
Warranty |
3 years |
|||||
Chips and Ballast |
USA Bridgelux chips |
|||||
Driver |
Constant or MEANWELL Driver |
|||||
Square led panel lights phtot
Advantage of Square led panel lights
2. PMMA light face
3. 2835SMD chip
4. High-tech heat dissipation
Square led panel lights Application:
1.Office Lighting
2.Home Lighting
3.Commercial Lighting
4.Project Lighting
5.Publicity Lighting
6.School Lighting
45*28*49mm
100pcs panel light lighting /carton
Payment Mathod:
1.Paypal
2.Credit Card
3.Wire Transfer
4.West Union
5.L/C
30% advance; Balance on fax copy of BOL
Shipping Mathod & Shipping time.
1. Shipping by EXPRESS:Sample can be delivered within 2-5 days on customer request, around 5-7 working days to arrive;
2. Shipping by SEA: Big order can be delivered within 10-25 days on customer request,
After-sales Policy:
There are two-year guarantee for the inserted driver of the light and three-year guarantee for the led source on the condition of the light being used under the normal environment, suitable maintenance and storage; any abnormal using is without guarantee . We can provide the repair, exchange (the components and parts) or replacement with a new item. The three schemas are for your option. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Our Service:
1.Your inquiry related to our products or prices will be replied in 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area,ideas of design and all your private information
6.All the products must through 24 hours aging before delivery to ensure the quality again
china Ultra thin Square led panel lights lamps LED Panel 3w 6w 9w
Factory Photo
LED PANEL LAMP
