BESTSELLER ELECTRIC ROLL PIPE GROOVING MACHINE 2"-12"
- 1000 Piece / Pieces per Month
- Ningbo/Shangai/Shenzheng/Guangzhou/Xiamen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Suntech | Model Number: | STG-II A |
Condition: | New | After-sales Service Provided: | Overseas service center available |
Product Description
Key features

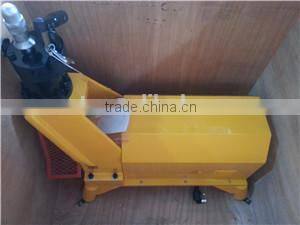

STG-II A Pipe grooving machine for rolling of grooves on thin-walled and standard steel pipes
1. This machine is applicable for grooving 2"-12" steel pipes and 2"-4" plastic-lining pipes.

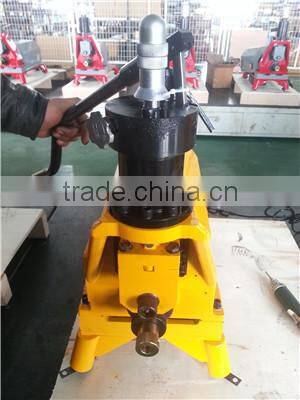

2. Sturdy hydraulic-pump with precisely formed grips for ideal handling.
3. Compact and very stable machine design.
4. Powerful yet quiet motor.
5. Fine adjustment for groove depth and regulation.
6. Equipped with a foldable steel support to contribute to easier operation and labor saving.
7. With a guide wheel to reduce the vibrating of the pipe when grooving.
8. CE certified.
Application area
Sprinkler systems, installations, larger heading units, industrial use and mining.
Technical data:
Working range:
2"-12"(Φ57-Φ325) Steel pipe
2"-4"(Φ57-Φ114) Plastic-lining pipe
Pipe wall-thickness: : 10mm
Speed: 23 rotations/m
Power:
Three-phase motor, Voltage: 110-415v,
Power capacity: 750W, Frequency: 50-60Hz
Single-phase motor, Volate: 110-240v
Power capacity: 1100-1500W, Frequency: 50-60Hz

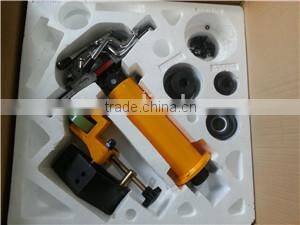

Standard Equipment:
Steel pipe support, 1 pc

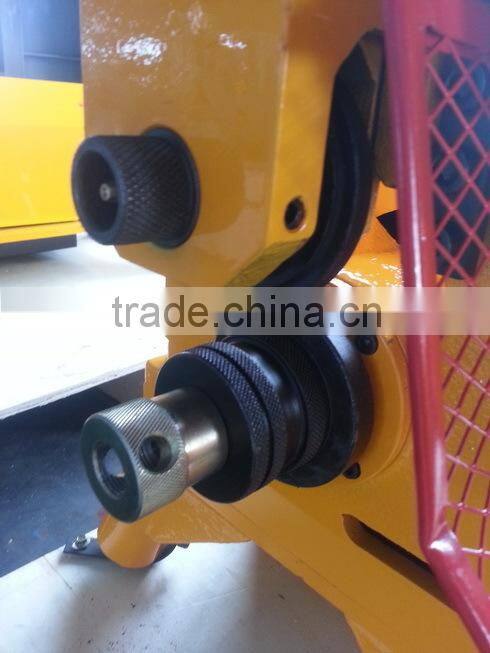

A set of 2"-12" knurl wheel, 3 pcs
A set of 2"-12" pinch roll, 2 pcs
A set of guide wheel

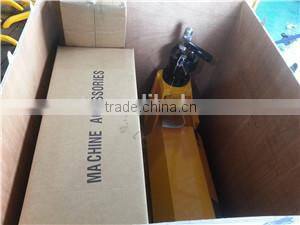

·Accessories

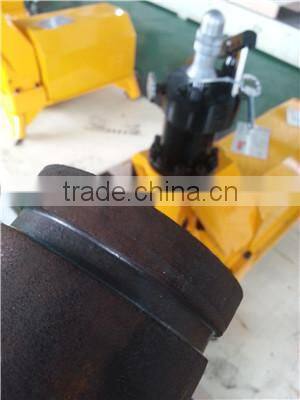

Hydraulic steel pipe support 29.5kg
Guide wheel 3.5kg
Knurl wheel(Φ60-Φ76) 0.5kg
Knurl wheel(Φ89-Φ168) 1.25kg
Knurl wheel(Φ219-Φ325) 1.4kg
Pinch roll (Φ60-Φ168) 0.65kg
Pinch roll (Φ219- Φ325) 0.6kg
We back our quality products with a 12 month product warranty. This lets you buy with confidence and peace of mind. We guarenty that any items you purchase from us are best in quality.
Customer service is a term we take seriously. We have a good team trained ready to assist you with any inquiry you may have.
Our company, with advanced management, standard quality certificate, 3A Credit Lable, is one of the first "Credible & Lawful" enterprise in Zhejiang province of China.
The production and management of our company have passed ISO: 9001.
Over the years, we have gained expertise in meeting the varying requirements of different industries across the globe. Our entire range of products comply with International standards of quality, performance and safety.
We are more than confident that we can meet your needs and give you exactly the value & service that you are looking for.
