Help CenterFlour Big Bag Packing Machine
Related Products
-
Bolt Counting Packing MachineUS$ 5,000 - 20,000MOQ: 1 Set -
Counting Machine for FittingUS$ 5,000 - 20,000MOQ: 1 Set
-
Counting and Packing MachineUS$ 5,000 - 20,000MOQ: 1 Set
-
Seed Count Packing MachineUS$ 5,000 - 20,000MOQ: 1 Set
-
Automatic Counting and Packing MachineUS$ 5,000 - 20,000MOQ: 1 Set
Specifications
Speed: 150-200 bag/hFilling weight: 5-25 kg
PLC controlling system

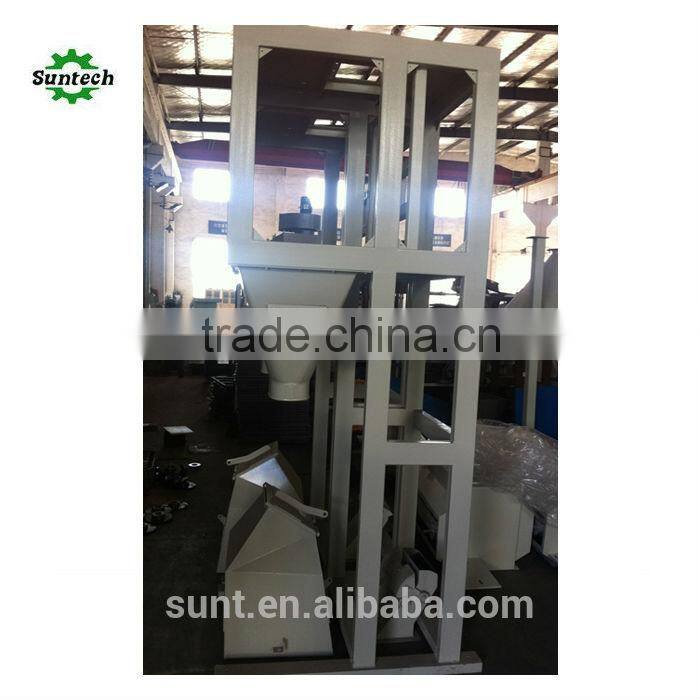

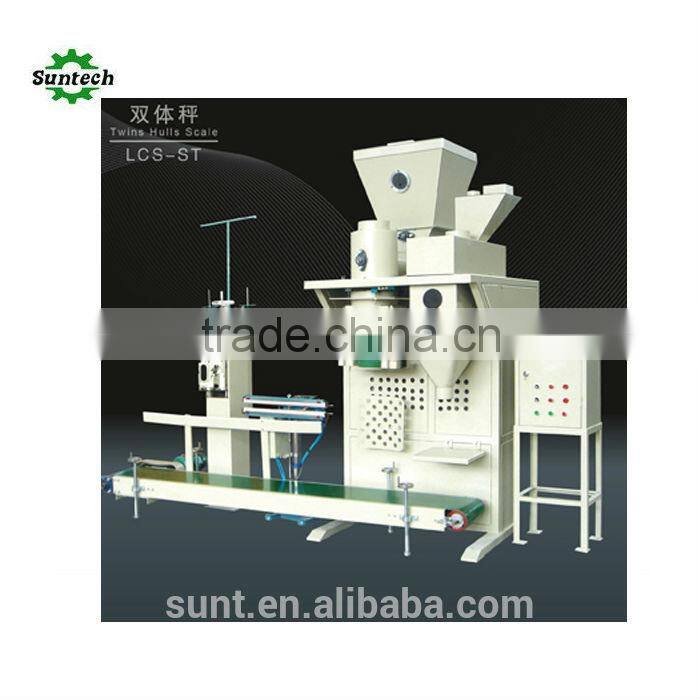

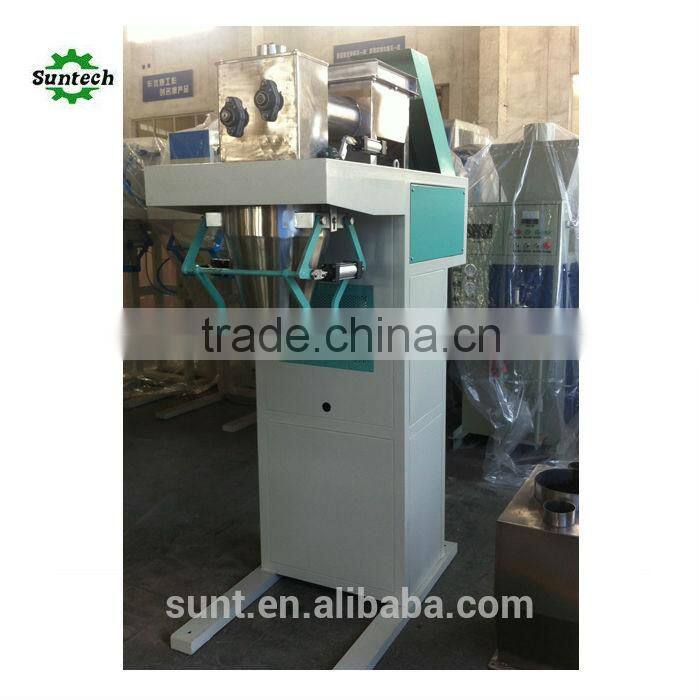

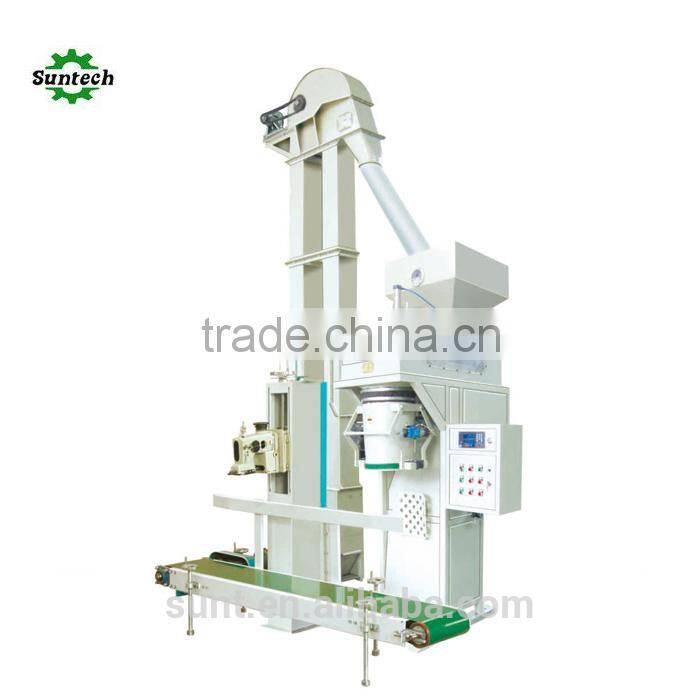

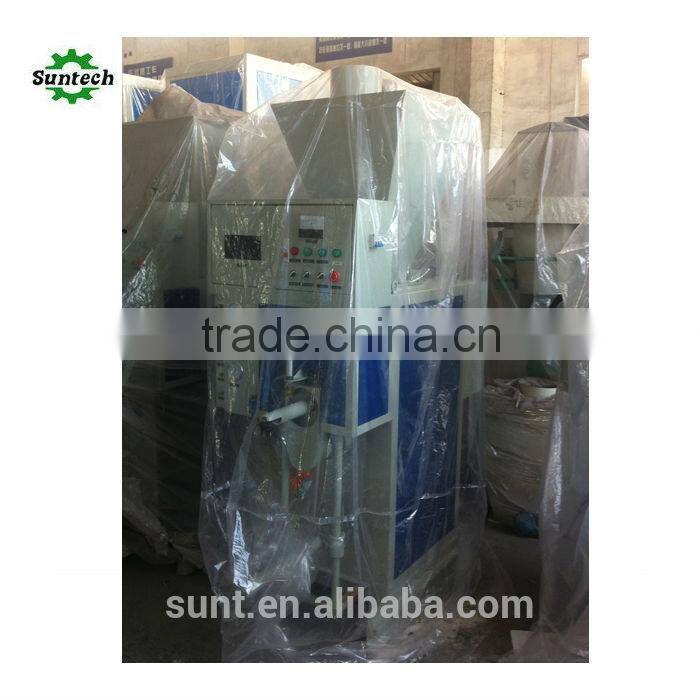

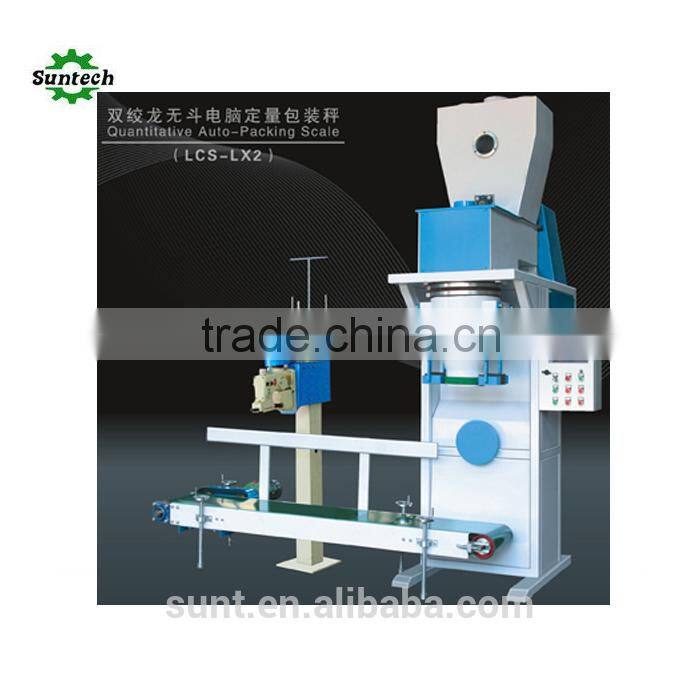

flour big bag packing machine
flour big bag packing machine
1. Solution overview:
Fast packing speed: 150-200 bag/h
High weighing accuracy: >=99.8%
High stability: the controlling system part is provided by SIEMENS such famous supplier.
Pneumatic system parts adopts AirTAC.
The device adopts advanced CAD designing and CAM manufacturing technology and based on ISO9001 Quality assurance system, also with the CAT checking method.
2. Application:
Product material: Powder
Bulk specific weight: 0.8
Material specification: dry and with good liquidity
Bag material: PE,LDPE bag.
Filling weight: 5-25kg
Weighing accuracy: >=99.8%
Packing speed: 150-200 bags/h
Material temperature: < 60°C
Relative humidity: < 95%
Voltage: 380V, 50HZ
Air supply: 0.4MPa~0.6MPa
Gas consumption: 0.1Nm3/min

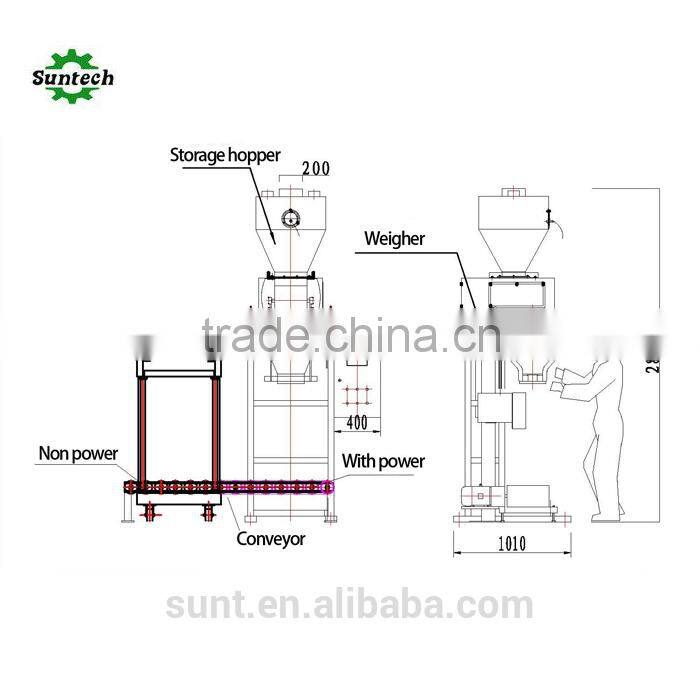

3. Packing System composition
3.1 LCS-ZZ-25 Weigher
Adopting Japan NSK bearing, outside placing bearing, avoiding dust into the bearing, easy to maintain.
Adopting Intelligent material feeding structure, Free falling, controlling by the PLC.
Pneumatic clamp bag holder structure.
Using USA Sensors Systoms, IL series weighing sensor.

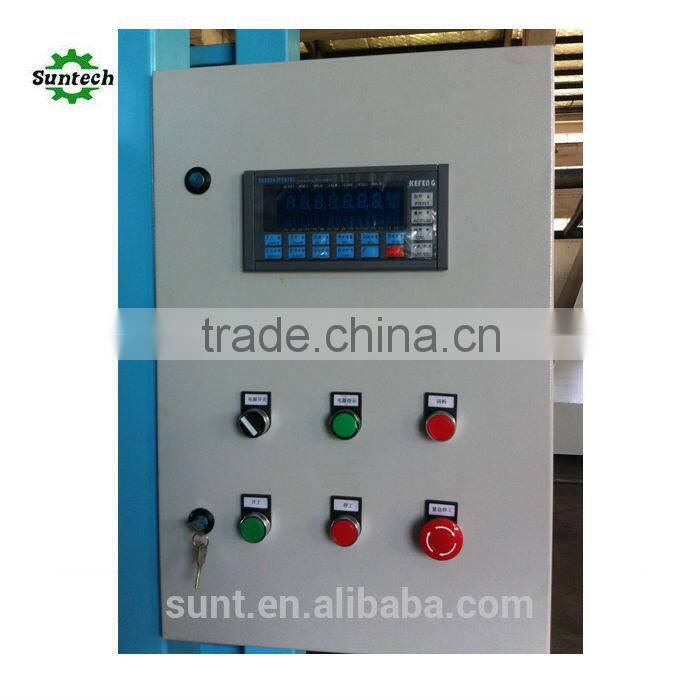

Controlling system: Control cabinet, Solenoid valve, Proximity switch, XK3201 PLC, PANTHER Weighing terminal,Isolation transformer.
Main function:
Automatic/manual weighing, self-lock. Manual weighing is used to checking the machine, automatic weighing is normal working way.
Product feeding speed adjustable.
Automatic counting packaged bags, display on the screen.
TraxDSPTM Anti vibration technology.
Weight checking and alarm, if the weighing accuracy is beyond 0.2%. It will alarm.
Automatically correct deviation
Fault self-diagnosis
Main components:
Weighing sensor: USA SENSORS SYSTOMS 250
Controlling system: USA SENSORS SYSTOMS,JAPAN OMRON LEVELS
Pneumatic system: TAWAN AirTAC
Bearing: NSK
3.2 Special carrier roller and belt conveyor
Conveying length:1800mm
Conveying width:400mm
Conveying hight:300-400mm
3.3 Heating sealing machine
Voltage |
AC 380V/50Hz |
Heat sealing power |
500W |
Sealing length |
300mm-700mm |
Sealing width |
3-10mm |
Sealing center hight |
1060mm |
Net weight |
240kg |
