Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > CCTV Security Surveillance 1/3 SONY CCD 420TVL - 700TVL OSD IR 50M 1PCS Big Power LEN OSD Outdoor Weatherproof Camera

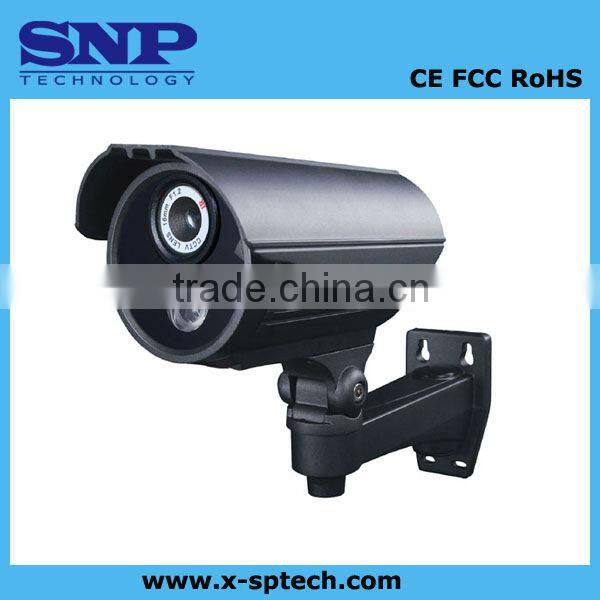

CCTV Security Surveillance 1/3 SONY CCD 420TVL - 700TVL OSD IR 50M 1PCS Big Power LEN OSD Outdoor Weatherproof Camera

Shenzhen SNP Trade Co., Limited

US$ 15 - 150 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SNP

Model Number:

SP-BS3942/48/54/60/70

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SNP

Model Number SP-BS3942/48/54/60/70

Type Analog Camera

Style Box Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

CCTV Camera Sony/ Sharp Color CCD
IR 50M 1PCS Big Power LED
12MM CS LEN
CE FCC RoHS Approve

Features

Weatherproof IR Camera

SONY/SHARP Color CCD

IR LED: 1PCS Big Power LED

Water resistance:IP66 Cable built-in bracket

Lens: 12mm CS Lens

Dimension:220(W) x175(H) x83(D)mm

Specifications
Model	SP-BS3970	SP-BS3960	SP-BS3954	SP-BS3942	SP-BS3942L
Image Sensor	1/3" SONY ICX673BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX633BK CCD	1/4" SHARP RJ2421FA CCD
Horizontal Resolution	700TV Lines Low Illumination, Effio, ATR, OSD, NR	600TV Lines Low Illumination, DWDR, OSD	540TV Lines Low Illumination	420TV Lines Low Illumination	420 TV Lines Low Illumination
Pixels	PAL:976 (H)× 494(V) NTSC :976 (H) ×582 (V)	PAL:795 (H)× 596(V) NTSC :811 (H) ×508 (V)	PAL:752(H)×582(V), NTSC:768(H)×494(V)	PAL:500(H)×582(V) NTSC:510(H)×492(V)
Usable Illumination	0.001 Lux/F2.0			0.0005 Lux/F2.0	0.01Lux/F2.0
TV System	PAL/NTSC
IR LED	1PCS Big Power LED
IR Series Distance	80 M
Lens	12mm CS Lens
Sync System	Internal
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
S/N Ratio	≥65dB (AGC OFF)	≥54dB (AGC OFF)		≥48dB (AGC OFF)
Gamma Correction	0.45
Video Out	Composite Signal (1.0Vp-p, 75Ω)
Scanning System	PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Electronic Shutter Time	Auto:PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec
Operation Temperature	-10°C ~ +50°C RH95% Max
Storage Temperature	-20°C ~ +60°C RH95% Max
White Balance	Auto
Power Source	DC12V 700mA
Dimension	220(W) x175(H) x83(D)mm
Weight	1.9kg
