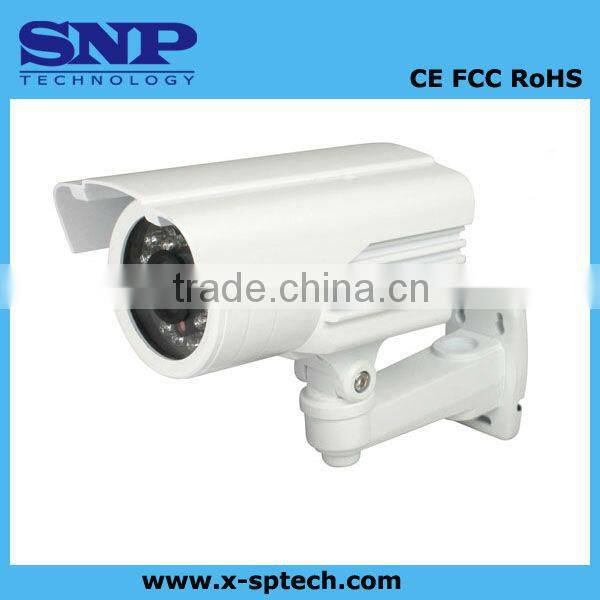

CCTV Security Surveillance 1/3 SHARP 420TVL IR 30M 36PCS LEDs Outdoor Weatherproof Camera

Shenzhen SNP Trade Co., Limited

US$ 15 - 150 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SNP

Model Number:

SP-BS0542L

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SNP

Model Number SP-BS0542L

Type Analog Camera

Style Box Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

CCTV Camera
Sony/ Sharp Color CCD
36PCS of 5mm IR LED, 30m IR Range
3.6mm/F2.0 Board Lens
CE FCC RoHS Approved

Features

Weatherproof IR Camera

SONY/SHARP Color CCD

IR LED:36PCS ,IR Distance: 30M

Water resistance:IP66 Cable built-in bracket

Board Lens 3.6mm/F2.0

Dimension: 165(W) x130(H) x74(D)mm

Specifications:

Model	SP-BS0570	SP-BS0560	SP-BS0554	SP-BS0542	SP-BS0542L
Image Sensor	1/3" SONY ICX673BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX639BK CCD	1/3" SONY ICX633BK CCD	1/4" SHARP RJ2421FA CCD
Horizontal Resolution	700TV Lines Low Illumination, Effio, ATR, OSD, NR	600TV Lines Low Illumination, DWDR, OSD	540TV Lines Low Illumination	420TV Lines Low Illumination	420 TV Lines Low Illumination
Pixels	PAL:976 (H)× 494(V) NTSC :976 (H) ×582 (V)	PAL:795 (H)× 596(V) NTSC :811 (H) ×508 (V)	PAL:752(H)×582(V), NTSC:768(H)×494(V)	PAL:500(H)×582(V) NTSC:510(H)×492(V)
Usable Illumination	0.001 Lux/F2.0			0.0005 Lux/F2.0	0.01Lux/F2.0
TV System	PAL/NTSC
IR LED	36PCS
IR Series Distance	30 M
Lens	Board Lens 3.6mm/F2.0
Sync System	Internal
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
S/N Ratio	≥65dB (AGC OFF)	≥54dB (AGC OFF)		≥48dB (AGC OFF)
Gamma Correction	0.45
Video Out	Composite Signal (1.0Vp-p, 75Ω)
Scanning System	PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Electronic Shutter Time	Auto:PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec
Operation Temperature	-10°C ~ +50°C RH95% Max
Storage Temperature	-20°C ~ +60°C RH95% Max
White Balance	Auto
Power Source	DC12V 300mA
Dimension	165(W) x130(H) x74(D)mm
Weight	0.7kg
