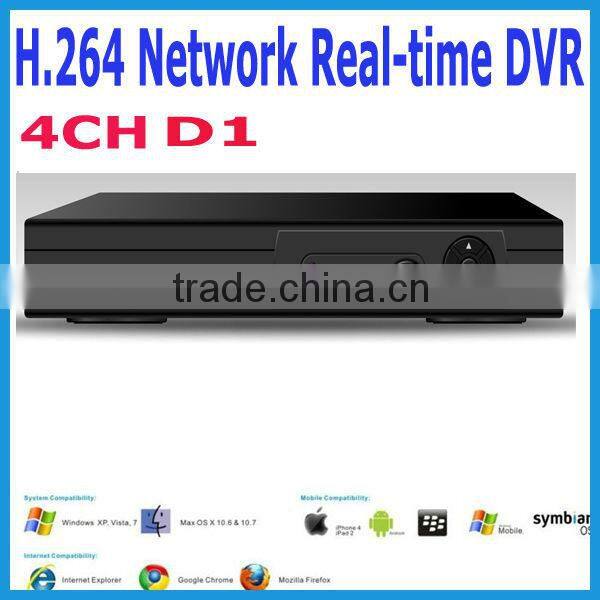

Help CenterHOT SALE H.264 Network Real Time d1 4CH CCTV Security Surveillance DVR Digital Video Recorder
Related Products
-
HOT SALE H.264 Network Real Time d1 4CH CCTV Security Surveillance DVR Digital Video RecorderUS$ 20 - 1,000MOQ: 1 Piece -
4CH Full D1 Real Time Standalone Network CCTV DVRUS$ 20 - 1,000MOQ: 1 Piece
-
4CH Full D1 Real Time Standalone Network CCTV DVRUS$ 20 - 1,000MOQ: 1 Piece
-
HOT SALE H.264 Network D1 Real Time 4CH CCTV Security Surveillance DVR Digital Video RecorderUS$ 20 - 1,000MOQ: 1 Piece
-
HOT SALE H.264 Network D1 Real Time 4CH CCTV Security Surveillance DVR Digital Video RecorderUS$ 20 - 1,000MOQ: 1 Piece
Specifications
1. Main Processor: HI35152. Operating System: Embedded Linux
competive price
MOQ 1PC
Features
1.H.264 main profile compression algorithm ideal for standalone DVR
2.Realtime live display up to 4 cameras,100/120fps recording for CIF,44fps recording for D1.
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-Streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart video detection:motion detection,video blind,video loss
7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
8.Easy backup methods:USB devices,remote network and client software backup
9.Alarm triggering screen tips,buzzer, e-mail &FTP upload
10.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
11.Powerful network software:built-in web server,multi-DVR client &SNS Networking access for remote live viewing,recording,playback,setting,system statu,event log,e-mail & ftp function
12.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.
13.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.
14.Enable strong multi-way synchronization with max 4 channels playback, realize the zero-delay between playback channels
System |
Model |
SP-DVR4M02V |
Main Processor |
High performance embedded microprocessor |
|
Operating System |
Embedded LINUX |
|
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|
User Interface |
GUI,on-screen menu tips |
|
Control Device |
Front panel,USB mouse,IR remote control |
|
Video |
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
|
Video Compression |
H.264 main profile |
|
Video Recording |
D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s; |
|
Motion Detection |
Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest) Trigger recording,tour,alarm,e_mail & FTP |
|
TV Output Audjustment |
Adjust TV output color & display zone |
Audio |
Audio Conpression |
G711A |
Bidrectional Talk |
Support |
|
Record & Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
Playback |
4 channels playback simultaneously, Pause,stop,rewind,fast play,slow play,next file,previous file,repeat,shuffle,backup selection |
|
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage & Backup |
Space Occupation |
Audio28.8MB/H Video150-200 MB/H |
HDD Management |
Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy) |
|
Backup Mode |
Network download/Flash stick |
|
Interface |
Video Input |
4 channel,BNC,1.0Vp-p,75Ω |
|
Video Output |
1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output |
|
Audio Input |
1 channel ,RCA, 200-2800mV,30KΩ |
|
Audio Output |
1 channel ,RCA, 200-3000mV,5KΩ |
|
Net Interface |
RJ-45 (10M/100M) |
|
USB Interface |
2*USB2.0 ports |
|
PTZ Control |
N/A |
|
Hard Disk |
1 SATA port(Max 2048G) |
Environmental |
Power Supply |
12V/2A |
Power Consumption |
<10W |
|
Working Temperature |
0-55 |
|
Working Humidity |
10%-90% |
|
Atmosphere Pressure |
86kpa-106kpa |
|
Dimension |
|
|
Weight |
|
