1.Production Description

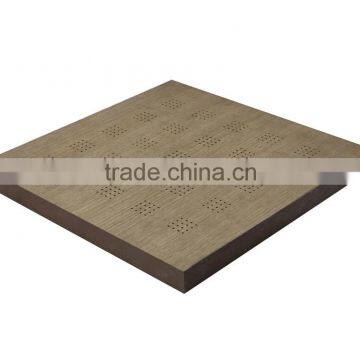

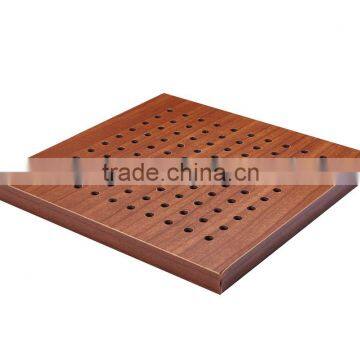

wooden perforated acoustic panel is a kind of wooden acoustic panel with holes on both front and back sides .the holes can be drilled form the surface directly to the back or the holes in the surface are small while on the back are big.the diameter of the holes on two sides are different .it is widely used for walls and ceiling .
| Wooden Perforated Acoustic Panel | |
| 1.Structure | Basic Material ,Finish&Back Finish |
| 2.Basic Material | E1 MDF,FR MDF ,MgO Combination Board etc. |
| 3. Front Finish | Melamine ,Natural Wood Veneer,Paint,etc. |
| 4. Back Finish | Black Fleece |
| 5.Standard Dimension | 600*600,1200*600,1200*1200,2400*1200mm,etc. |
| 6.StandardThickness | 12/15/18mm |
| 7.Distance of two Holes | 8/8,16/16,32/32mm,etc. |
| 8.Diameter of Holes | 1,2,3,4,5,6,8,10,12mm,etc. |
| 9. Standard Pattern | 8/8/1,16/16/3,16/16/6,32/32/6,32/32/8.etc. |
| 10. Installation | 1.Lightweight steel keel system2.Wooden battern systern |
| 11. Fire rate | can meet China Standard Class B1 and BS476 Part 7 Class 1 |
| 12. Eco level | can meet China and EU Standard Class E1 |
| 13.Applications | gymnasium,hotels,exhibition centers,schools,studio etc. |
| 14.Is customized | can be Customized |
2.Installation Method
Since wooden perforated acoustic panel ,wooden special pattern acoustic panel and wooden decorative panel have similar structure ,they also share the same installation saystem .as all wooden panels expand with heat and contract with cold by nature ,it is strongly recommended to use our installation system .
3.Sound Absorption
4.Packing &Shipping
All of our exporting products are packed in cartons or customized package and shipped by sea transportation .
5.Our Service
1.Customized Size as buyers' request.
2.MOQ is 100sqm
3.Free small sample.
4.OEM & ODM are available.
5.Install Instruction
6.various products to choose
1. Are you a trading company or a factory ?
Our company was established in Guangzhou city, with the factory in Foshan. We are a manufacturer engaged in acoustic material for more than 8 years. Welcome to pay a visit to our factory.
2.How can you guarantee the quality?
We have a modern management system. Take strict selection for upstream suppliers to insure the basic material to be good quality. And we pay more attention to production technology and staff training, so that the defective rate is less than 1% of each products, save cost at the production line. When the productions are ready, they would be sent to the package workshop, put in carton with foam between each panel to avoid the friction and damage.
3.Do you accept customization?
Yes, we can support our clients with OEM, so that it can be easier to open the local market and build a long-term partnership between us.
4.Can you offer sample?
Yes, we can offer standard samples for free, and customization is available.
5.How long is the lead time.
Normally 10-25 days upon receiving the deposit, base on the quantity 1,500 SQM
6.Can you assist for installation?
Yes, we can arrange to assist in installation if needed.
7.Do you have CE certificate?
Yes, we do. We have shipped many goods to European countries.
8.What are the factors of influencing the NRC?
Perforation rate, gap between the wall and panel, the density and thickness of the glass wool, etc. All these factors will effect NRC.
9.What's the difference between normal panel and acoustic panel?
Acoustic panel also called soundproof panel which is designed according to the law of soundproofing. There are mainly three functions of acoustic panel. Sound absorbing, sound diffusing and sound insulation, with respect to a specified sound source and receptor: increasing the distance between source and receiver, using acoustic panel to reflect or absorb the energy of the sound waves, using damping structures such as acoustic panel, or using active antinoise sound generators.
10.How about the capacity of your factory?
500000sqm per year.
11.How to pay ?
you can pay by western union or T/T.Cash will be ok if we do business face to face .
More questions or details about our products or company ,please feel free to contact us .
