Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion

Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion thumbnail-1
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion thumbnail-2
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion thumbnail-3
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion thumbnail-4
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion thumbnail-5
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion thumbnail-6
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion photo-1
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion photo-2
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion photo-3
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion photo-4
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion photo-5
Groove Wood Wall Acoustic Fire Resistant Board Ffor Sound Absoprtion photo-6
US$ 8 - 40 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Guangzhou Leeyin
Model Number:
13-1,14-2,28-4,59-5
Contact Supplier Request Quote Chat Now
Guangzhou Liyin Building Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Guangzhou Leeyin
Model Number 13-1,14-2,28-4,59-5
Acoustic Panel Type Wooden Acoustic Panels

1.Product Description

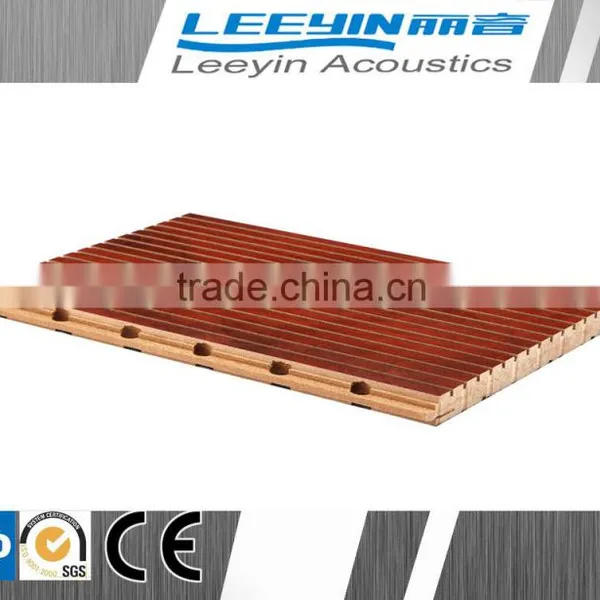

Leeyin wooden grooved acoustic panel is a one of the most advanced and efficient absorption products available today for reducing reverberant sound levels in many place ,such as gymnasiuns,hotels ,schools and studios .they are developed based on acoustical theories ,and manufactured by unique equipments and technologies .thanks to the ingenious designs and all kinds of decorative surfaces ,these acoustic panels are not only easy to install ,but also visually attractive .

groove wood wall acoustic fire resistant board ffor sound absoprtiongroove wood wall acoustic fire resistant board ffor sound absoprtion



Wooden Grooved Acoustic Panel
1.Structure Basic Material ,Finish&Back Finish
2.Basic Material E1 MDF,FR MDF ,MgO Combination Board etc.
2. Front Finish Melamine ,Natural Wood Veneer,Paint,etc.
3. Back Finish Black Acoustic Felt
4.Standard  Size 2440*128,2440*192mm,etc.
5.StandardThickness 12/15/18mm
6. Standard Pattern 13-3,14-2,28-4,59-5,etc.
7. Installation 1.Lightweight steel keel system2.Wooden battern systern
8. Fire rate can meet China Standard Class B1 and BS476 Part 7 Class 1
9. Eco level can meet China and EU Standard Class E1
10.Applications gymnasium,hotels,exhibition centers,schools,studio etc.
11.Is customized can be Customized









2.Installation







A)Preparation
1.The place of installation must be dry,with the lowest temperature no less than 10 degrees celsius.
2.the acoustic panels to be installed must be placed in the place of installation for at least 48h in order to adapt the indoor environment.
3.After installation ,the largest humidity changing rate of the place of installation should be between 40%-60%.
4.The distance between each wood keel must be less than 500mm and that between each light steel keel should no more than 600mm.
B)Installation
1.Confirm the place of installation ,determine the horizontal and vertical lines and the reserved measurements for the electric wire socket ,pipes.etc.
2.Calculate the actual construction measurements and cut the part of acoustic panels if needed.
3.Start to install and follow the rules:from left to right,from bottom too top.for horizontally installation.make the grooves up;for the vertical installation,make the tougues on the right.for real wood veneer acoustic panels that have requirements on the direction of the stripes,the panels should be installed according to the pre-marked sequence numbers.

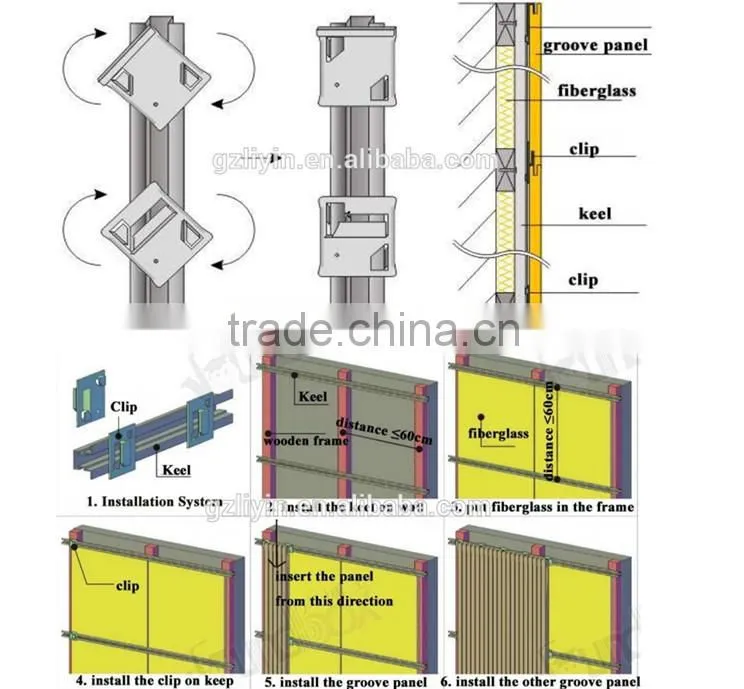

C)Installation system
1.Lightweight steel keel system
2.Wooden batten system

 groove wood wall acoustic fire resistant board ffor sound absoprtion

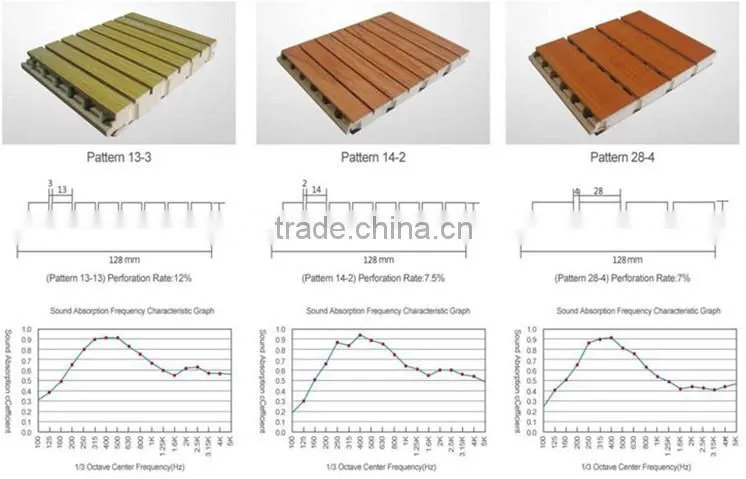

3.Sound Absorption Coefficient

groove wood wall acoustic fire resistant board ffor sound absoprtion

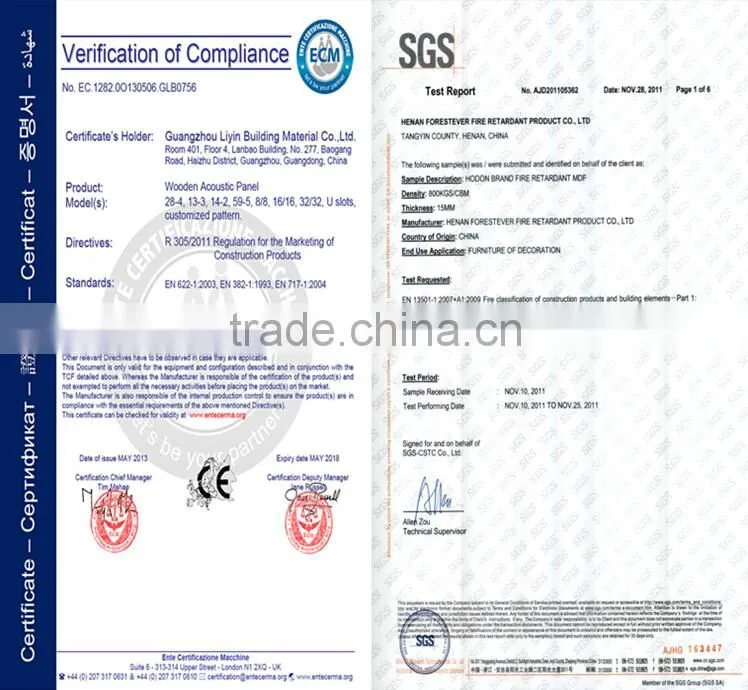

4.Certifications

groove wood wall acoustic fire resistant board ffor sound absoprtion



5.About Us



Guangzhou Leeyin Material Building Material Co.,Ltd.,together with its subcompany Foshan Blue Ocen Archetectural Acoustic Material Co.,Ltd.,was established in March 2006.The head office locates in the central area of Guangzhou Pearl River Delta and the factory is in Foshan .Now Leeyin Group ,with its factory more than 10,000 square meters ,has more than 200 employees and has a strong production capacity of one million square meters acoustic materials annually .

groove wood wall acoustic fire resistant board ffor sound absoprtion



1.Customized Size as your request.

2.MOQ is 100sqm

3.Free small sample.

4.OEM & ODM are available.

5.Install Instruction

6.all products can be customized
