MAGNESIUM SACRIFICIAL ANODE
Magnesium anode is the most common material used as sacrificial anode in cathodic protection system because of its higher driving voltage, easy installation and limited maintenance. It is typically used for buried transmission oil&gas pipelines, and also can be used to protect structures in fresh water.
Our DuraMag anodes all manufactured and tested according to latest international standards, such as ASTM B843 and ASTM G97, it is available from both M1C (high potential) or AZ63B (Std potential) alloy with annual capacity 8,000 metric tons. In the past decade our anodes is widely used in North America, Europe, Middle East and Asia markets, and we were approved vendor by Saudi Aramco since 2006.
Feature
High purity raw material
rigid process control
automatic production
advanced testing facilities
Specification
| High Potential Magnesium Anode | ||
| chemical composition | ||
| Alloy | ASTM B843-M1C | |
| Aluminum | 0.01% Max | |
| Manganese | 0.50-1.30 | |
| Copper | 0.005% Max | |
| Silicon | 0.05% Max | |
| Nickel | 0.001% Max | |
| Fe | 0.01% Max | |
| Single Impurity | 0.05% Max | |
| Total Impurity | 0.30% Max | |
| Remaining | Magnesium | |
| Electrochemical Properties | ||
| Open Voltage(-mV) | 1.70-1.75(-V) SCE | |
| Closed Voltage (-mV) |
1.58-1.62(-V) SCE |
|
| Actual capacity (A.h/kg) | 1100 | |
| Efficiency | 50% | |
| Standard Potential Magnesium Anode | |
| chemical composition | |
| Alloy | ASTM B843-AZ63B |
| Aluminum | 5.30-6.70 |
| Zinc | 2.50-3.50 |
| Manganese | 0.15-0.70 |
| Silicon | 0.10% Max |
| Copper | 0.02% Max |
| Nickel | 0.002% Max |
| Fe | 0.003% Max |
| Total Impurity | 0.30% Max |
| Remaining | Magnesium |
| Electrochemical Properties | |
| Open Voltage (-mV) | 1.50-1.55(-V)SCE |
| Closed Voltage (-mV) | 1.45-1.50(-V)SCE |
| Actual capacity (A.h/kg) | 1230 |
| Efficiency | 55% |
|

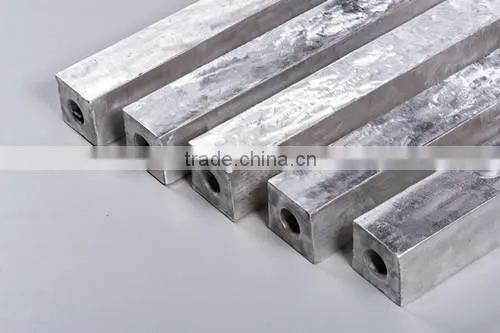

Item No. |
"D" TYPE | High Potential(-1.7V) | Standard Potential(-1.5V) | ||||||
|
Nominal Width (mm) |
Nominal Length (mm) |
Nominal Height (mm) |
Nominal Weight (kg) |
Nominal Width (mm) |
Nominal Length (mm) |
Nominal Height (mm) |
Nominal Weight (kg) |
||
1 |
YX-MG-5D2 | 70 | 310 | 76 | 2.3 | 70 | 305 | 76 | 2.3 |
| 2 | YX-MG-9D2 | 70 | 545 | 76 | 4.1 | 70 | 540 | 76 | 4.1 |
| 3 | YX-MG-9D2-1 | 63.5 | 705 | 67 | 4.1 | 63.5 | 640 | 67 | 4.1 |
| 4 | YX-MG-20D2 | 70 | 1524 | 76 | 9.1 | 70 | 1495 | 76 | 9.1 |
| 5 | YX-MG-14D2 | 70 | 850 | 76 | 6.36 | 70 | 815 | 76 | 6.36 |
| 6 | YX-MG-17D2 | 63.5 | 1210 | 67 | 7.7 | 63.5 | 1188 | 67 | 7.7 |
| 7 | YX-MG-5D3 | 89 | 190 | 95 | 2.3 | 89 | 180 | 95 | 2.3 |
| 8 | YX-MG-9D3 | 89 | 345 | 95 | 4.1 | 89 | 325 | 95 | 4.1 |
| 9 | YX-MG-17D3 | 89 | 645 | 95 | 7.7 | 89 | 610 | 95 | 7.7 |
| 10 | YX-MG-35D5 | 140 | 498 | 146 | 14.5 | 140 | 472 | 146 | 14.5 |
| 11 | YX-MG-48D5 | 140 | 750 | 146 | 21.8 | 140 | 710 | 146 | 21.8 |
| 12 | YX-MG-17D4 | 102 | 525 | 108 | 7.7 | ||||
| 13 | YX-MG-60D4 | 112 | 1524 | 112 | 27.3 | 114 | 1485 | 114 | 27.3 |
|

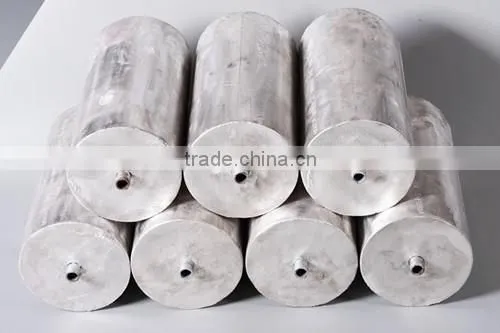

Item No. |
"R" TYPE |
Nominal Diameter (mm) |
Nominal Length (mm) |
Nominal Weight (kg) |
Nominal Diameter (mm) |
Nominal Length (mm) |
Nominal Weight (kg) |
| 1 | YX-MG-R50 | 114 | 288 | 5.0 | 114 | 275 | 5.0 |
| 2 | YX-MG-R77 | 114 | 440 | 7.7 | 114 | 410 | 7.7 |
| 3 | YX-MG-R100 | 114 | 565 | 10.0 | 114 | 545 | 10.0 |
| 4 | YX-MG-R145 | 146 | 405 | 14.5 | 146 | 475 | 14.5 |
| 5 | YX-MG-R273 | 114 | 1524 | 27.3 | 114 | 1450 | 27.3 |
|
Item No. |
‘S’ Type | High Potential(-1.7V) | Standard Potential(-1.5V) | ||||||
| 1 | YX-MG-3S3 | 86.25 | 120 | 76 | 1.4 | 86.25 | 115 | 76 | 1.4 |
| 2 | YX-MG-5S3 | 86.25 | 204 | 76 | 2.3 | 86.25 | 198 | 76 | 2.3 |
| 3 | YX-MG-9S3 | 86.25 | 365 | 76 | 4.1 | 86.25 | 345 | 76 | 4.1 |
| 4 | YX-MG-17S3 | 86.25 | 680 | 76.2 | 7.7 | 86.25 | 650 | 76 | 7.7 |
| 5 | YX-MG-32S5 | 117 | 563 | 127 | 14.5 | 117 | 535 | 127 | 14.5 |
| 6 | YX-MG-48S5 | 117 | 845 | 127 | 21.8 | 117 | 820 | 127 | 21.8 |
Company Profile
Ningbo Yuxi light alloy Co.,ltd was established in 2003 and we are specialized in manufacturing Magnesium/AluminumExtrusion/casting products. The range of our product line, excellent quality & service, low price over the past ten years have made us one of the leading companies of its kind in China.
It’s our principal aim to provide the highest quality of materials and integrity of services, so our customer can focus all of their efforts in the more profitable services such as design, Marketing.
Taking advantage of the advanced technology and low labor cost, YUXI is always able to provide high quality products and integrity customer services backed with the most competitive price.
Please select us as your honest and reliable partner to save your money and time.
Factory occupation 26600 square meter
Total staff 120
Management & Technical staff 27
Capacity:
- Magnesium Casting: 1,500 tons per year
- Magnesium Extrusion: 1,200 tons per year
- Aluminum & Zinc casting: 2,000 tons per year
- Aluminum & Zinc extrusion: 1,500 tons per year
