Home > Products > electronic component > oil- cooled transformer rectifier
oil- cooled transformer rectifier
- 15000 Set / Sets per Month
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YUXI | Model Number: | YX-DJ-2 |
Usage: | Other, cathodic protection | Phase: | Other, single, three | Coil Structure: | Toroidal |
Coil Number: | Other, Three |
Product Description
oil- cooled transformer rectifier
The most common type of power supply used for impressed current cathodic protection is a transformer/rectifier, commonly referred to simply as a rectifier. A rectifier converts the AC power supply voltage to the required output voltage and then converts it to DC. Rectifiers are either supplied in ventilated cases to allow convective air cooling or are immersed in transformer oil. Rectifiers are normally powered by an AC power system. The rectifier input is an AC voltage from the commercial electrical power grid or an engine-generator. A transformer with tap adjustments in the secondary side provides a method to reduce and adjust the output voltage level and to isolate the DC circuit from the input power system. A rectifying circuit next converts the adjusted AC voltage to produce a DC voltage output.
The basic units of a rectifier consist of:
l AC Supply
l Circuit breaker
l Transformer
l Rectifying elements
l Meters
l DC Output Terminals
l Fuses
l Surge protection
Yuxi acquires an electronic manufacture-CHANGLIAN with more than 40years of history in 2014. This factory has 20 years of experiences in manufacturing Transformer Rectifier, so far China’s first Rectifier made by Changlian for Sinopec is still in operating in Ningbo. This acquisition enables Yuxi have the full capability to supply high end electronic equipment for the industry it served, most importantlythe Transformer Rectifier.
Product Line:
l YX-DJ-1 Air Cooled Type
l YX-DJ-2 Oil Cooled Type
l YX-FPS-1 Explosion Proof Type
l YX-HPS-1B HFS Type
l YX-SFS-1 Solar Type

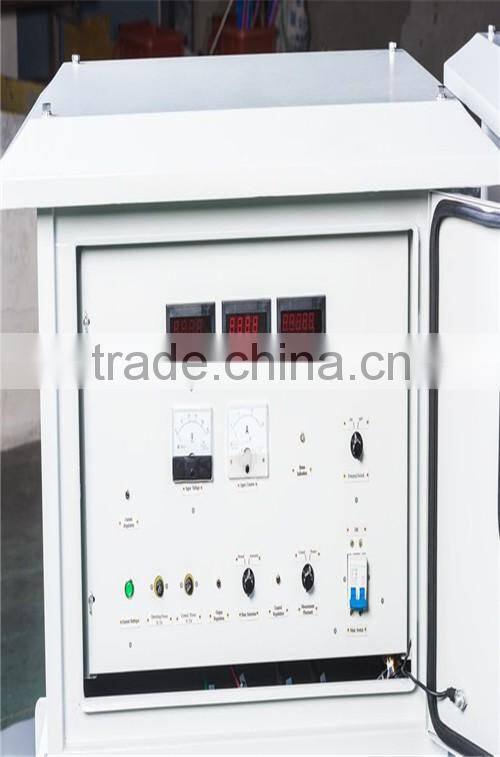

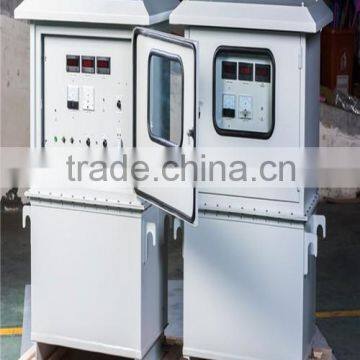

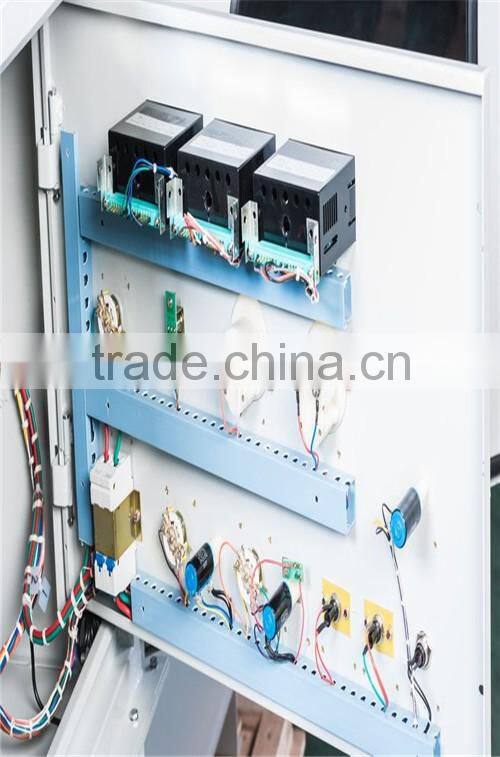

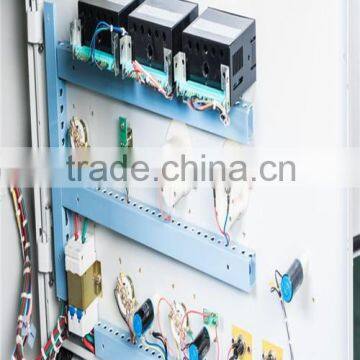

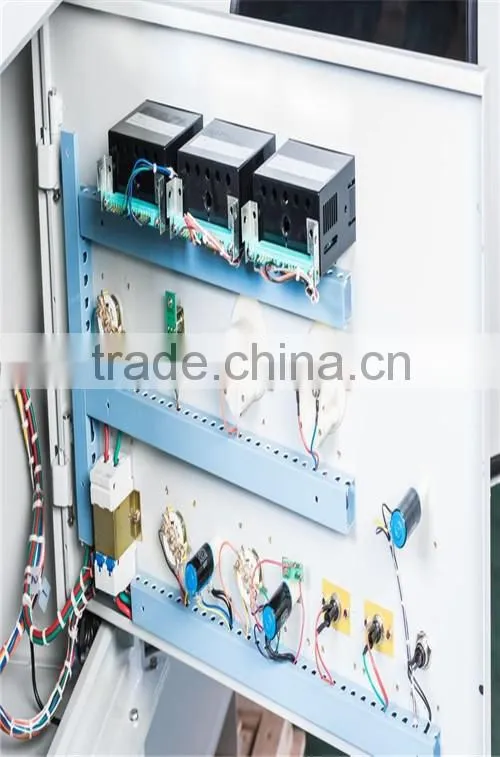

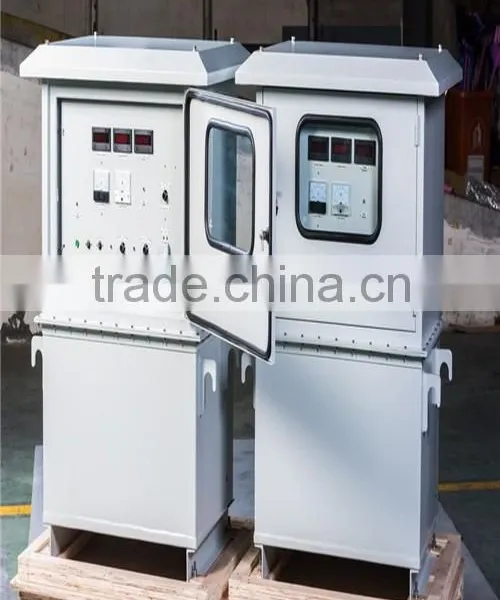

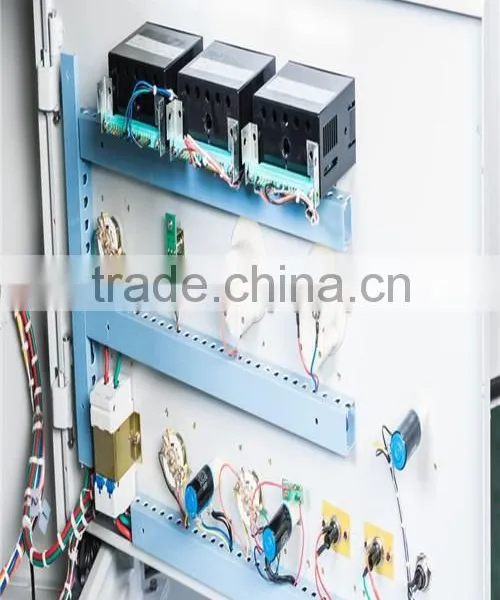

YX-DJ-2Oil-cooled transformer rectifier adopts thyristor primary regulator, transformer decompression and rectification technology of secondary rectifying tube. The TR is provided with smooth output regulation, small loss and high efficiency. Transformer, rectifying unit and filtering unit are equipped in oil box, and control components are equipped in control box. The degree of protection of enclosure is IP65.
Product Specification
1. A.C. Input | Three phase 380V ±10% Frequency 50 ±10% |
2. D.C. Output Current | 0-400A |
3. Constant Current | 0-400A |
4. Current Limitation Protection | 102-110% Rated Current Output |
5. D.C. Output Voltage | 0-20V (Continuous Adjustment) |
6. Set Potential | 0-±3V |
7. Precision of Constant Potential | ≤±5mV |
8. Precision of constand Current | ≤±1% |
9. Input Impedance | ≥10MΩ |
10. Dielectric Strength | 1500v, 50HZ, 1minute without Breakdown |
11. Working Style | Continuous |
12. Cooling | Oil Cooling |
13. Ripple | ≤5% |
14. AC Input Fuses, DC Output Fuses, Rectifier Fuses MCBs, Surge Arrester, Lightning Protector | |
15. Control | Manual / Automatic |
16. Digital DC Ampere Meter, Digital DC Voltage Meter, Digital Potential Meter | |
17. Oil level sensing device, Oil Temperature Indictor | |
18. Terminals | DC Output (positive)-2nos DC Output (negative)-2nos AC Input (380V)-1nos Reference electrode grounding-1nos. Reference electrode-1nos. |
19. Resist of AC interference | ≥24V |
20. Enclosure | Outdoor type, Standard Painted Sheet Steel. |
21. Protection | ≥IP65 grade |
22. Dimension (approx.) | 1120mm x 960mm x 780mm Height x Width x Depth |
23. Weight (approx.) | 90kgs |
24. Ambient temperature range | -30℃ to +60℃ |
25. Relative Humidity | ≤90% |
