Polarization Test Probe
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YUXI | |
| Model Number | YXRE05 |
Product Description

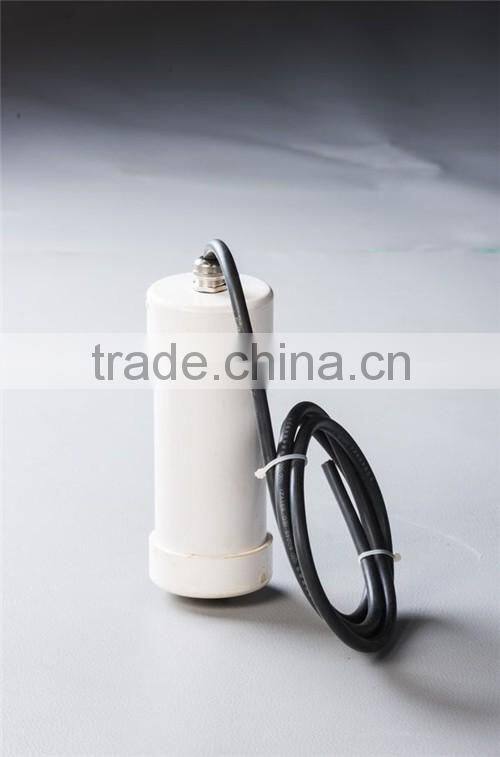

polarization test probe
Routine potential monitoring is an important part of cathodic protection maintenance program, an accurate, reliable, and consistent reference electrode is crucial for the potential monitoring.
Yuxi offers high level reference electrode which complys to the highest industry standards. Our reference electrodes include Copper/Copper Sulfate, Silver/Silver Chloride, High Purity Zinc. They are all available in buried and portable type.
Polarization Test probe is also known as IR Free reference electrode. It is a cathodic protection potential measurement probe for buried steel pipeline with long term performance, high stability. Most importantly it eliminates the IR drop.
It is applicable to detect and monitor the cathodic protection potential of the underground or submerged buried steel pipeline. Through special structure of the probe, it can eliminate 90% IR drop in soil instrument. If coordinated with intelligent potential measuring instrument, it can almost eliminate all IR drop of the soil medium and the result of detection will be more accurate. This product conforms to NACE TM0494.
Specification:
Stable Potential | 70±5mV (CSE) |
Dimension | 75mm dia. X 280mm Long |
Internal Resistance | <1mΩ |
Life | >20 years |
IR Drop elimination | >90% |
Company Profile
Ningbo Yuxi light alloy Co.,ltd was established in 2003 and we are specialized in manufacturing Magnesium/AluminumExtrusion/casting products. The range of our product line, excellent quality & service, low price over the past ten years have made us one of the leading companies of its kind in China.
It’s our principal aim to provide the highest quality of materials and integrity of services, so our customer can focus all of their efforts in the more profitable services such as design, Marketing.
Taking advantage of the advanced technology and low labor cost, YUXI is always able to provide high quality products and integrity customer services backed with the most competitive price.
Please select us as your honest and reliable partner to save your money and time.
Factory occupation 26600 square meter
Total staff 120
Management & Technical staff 27
Capacity:
- Magnesium Casting: 1,500 tons per year
- Magnesium Extrusion: 1,200 tons per year
- Aluminum & Zinc casting: 2,000 tons per year
- Aluminum & Zinc extrusion: 1,500 tons per year
