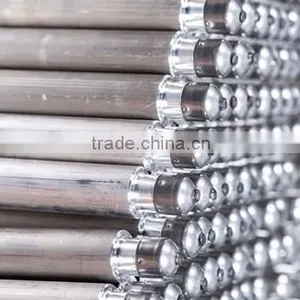

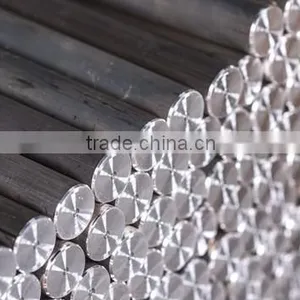

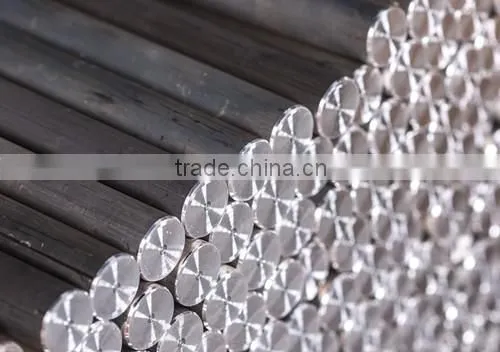

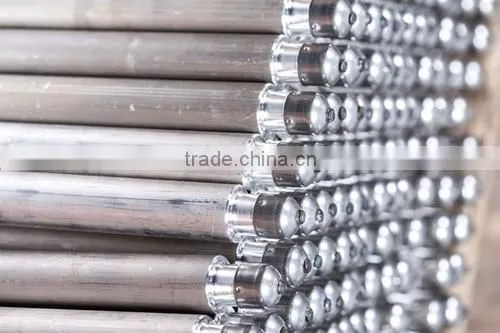

magnesium anode for water heater
Water heater anode rod or sacrificial anode is the important component part with only one purpose to protect metal tank from corrosion.Extruded Alumnium anodes and Magnesium anodes have high current to weight ratio,are suitable to be used in where a small diameter anode is required to give enough cathodic current.
YUXI supply extruded anodes in both high potential (Mg-Mn alloy),standard potential (AZ31 alloy) and Alumnium Alloy.Our extruded anodes are typically suitable for all kinds of water storage tanks or in prepolarization of offshore structure and so on.
Feature
High purity raw material
rigid process control
automatic production
advanced testing facilities
Specification
| Alloy | AZ31B | Mg-Mn | Aluminum | |
|
Chemical Composition |
Aluminum | 2.50-3.50% | 0.01% Max | Balance |
| Manganese | 0.20-1.00% | 0.50-1.30% | - - | |
| Zinc | 0.60-1.40% | - - | 4.00-5.00% Max | |
| Calcium | 0.04% Max | - - | - - | |
| Silicon | 0.10% Max | - - | 0.25% Max | |
| Copper | 0.01% Max | 0.02% Max | - - | |
| Nickel | 0.001% Max | 0.001% Max | - - | |
| Fe | 0.005% Max | 0.03% Max | 0.25% Max | |
| Sn | -- | - - | 0.05-0.25% Max | |
| Other purity(each) | -- | 0.05% max | - - | |
| Total purity | 0.30% Max | 0.30% Max | 0.15% Max | |
| Remaining | Magnesium | Magnesium |
| Diameter(inch) | Core eccentric(inch) | Core diameter(inch) | Straightness(inch/2 ft length) | Weight(lbs/inch) |
| Magnesium Extruded rod | ||||
| 0.0675-0.020 | 0.050 | 0.135 | 0.060 | 0.025 |
| 0.750-0.020 | 1/16 | 0.135 | 0.040 | 0.031 |
| 0.800-0.020 | 1/16 | 0.135 | 0.040 | 0.035 |
| 0.840-0.020 | 1/16 | 0.135 | 0.040 | 0.038 |
| 0.900-0.020 | 1/16 | 0.135 | 0.040 | 0.043 |
| 1.050-0.020 | 1/16 | 0.135 | 0.040 | 0.057 |
| 1.315-0.020 | 1/16 | 0.135 | 0.040 | 0.089 |
| Aluminum Extruded rod | ||||
| 0.576-0.020 | 0.050 | 0.135 | 0.060 | 0.038 |
| 0.750-0.020 | 1/16 | 0.135 | 0.050 | 0.048 |
Company Profile
Ningbo Yuxi light alloy Co.,ltd was established in 2003 and we are specialized in manufacturing Magnesium/AluminumExtrusion/casting products. The range of our product line, excellent quality & service, low price over the past ten years have made us one of the leading companies of its kind in China.
It’s our principal aim to provide the highest quality of materials and integrity of services, so our customer can focus all of their efforts in the more profitable services such as design, Marketing.
Taking advantage of the advanced technology and low labor cost, YUXI is always able to provide high quality products and integrity customer services backed with the most competitive price.
Please select us as your honest and reliable partner to save your money and time.
Factory occupation 26600 square meter
Total staff 120
Management & Technical staff 27
Capacity:
- Magnesium Casting: 1,500 tons per year
- Magnesium Extrusion: 1,200 tons per year
- Aluminum & Zinc casting: 2,000 tons per year
- Aluminum & Zinc extrusion: 1,500 tons per year
