Home > Products > Machinery and Vehicle > TY380-1PV404K Heavy off Road Dumper 80ton,off Road Vehicle,off Road Truck

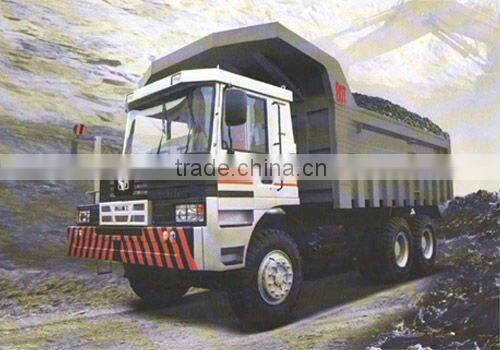

TY380-1PV404K Heavy off Road Dumper 80ton,off Road Vehicle,off Road Truck
US$ 1 - 150,000
/ Unit
1 Unit(Min. Order)
- china main port
- T/T Money Gram
You May Like
-
TY380-2PZ394K Heavy off Road Dumper 80ton,off Road Vehicle,off Road Truck
-
XCMG Wheel Loader ZL50G - Loader
-
XCMG Wheel Loader ZL30G - Loader
-
XCMG Consruction Machinery Loader ,Wheel Loader LW500E - Loader Parts
-
for Weichai Power Engine Parts W012102450 Liner SNSC for Weichai Yuchai Shangchai Deutz Engine Part
-
for FAW Truck Parts 3732015-X349 Fog Light Assy fr SNSC for Shacman Sinotruck Foton Howo Beiben Faw Jac Truck Parts Beyonds Your
Product Details
| Place of Origin | Shanxi, China | Brand Name | MANNWELL, TONGYUN | |
| Model Number | TY380-1PV404K |
Product Description
Heavy off road vehicle
duty off road dumper,off road truck
6x4 Heavy off road vehicle
8x4 Heavy duty off road dumper
MODLE | TY380-1PV404K |
PHOTO | |
DIRVE METHOD | 6X4 |
CURB WEIGHT(KG) | 25000 |
PAYLOAD(KG) | 55000 |
TOTAL MASS(KG) | 80000 |
DIMENSION(MM) | 8820X3450X4100 |
MAX SPEED(KM/H) | 50 |
MIN. CLEARANCE(MM) | 380 |
MIN TURING RADIUS (M) | LESS OR EQUAL TO 11 |
MAX GRAND ABILITY (%) | 40 |
APPROACH ANGLE/ANGLE OF DEPARTURE(°) | 35/52 |
WHEELBASE(MM) | 3950+1560 |
WHEEL TRACK(MM) | FRONT 2466, REAR2262 |
CAB | SIDE PALCED AND MINERAL CABINE |
ENGINE MOLD | ISME440E 20 |
DISPLACEMENT(L) | 10.8 |
RATED HORSEPOWER(KW/PS) | 324/440 |
MAX TORQUE /ROTATING SPEED(NM/MIN) | 2100/1200 |
GEARBOX MODEL | ET-20109A, ERIK JOHNSON4500 AUTO |
FRONT AXLE | 16T |
REAR AXLE | 32TX2 |
EMISSION | EURO III |
FRAME | 320H X1020W X(10+8+6)MM, 510L STEEL |
BRAKING SYSTEM | DOUBLE-WAY BRAKE WITH JACOBS |
ELECTRONIC SYSTEMS | 24V |
AIR FILTER | THREE ELEMENTS DISSERT AIR FILTERS |
FUEL TANKER CAPACITY (L) | 400L |
TYRE | 14.00-25 |
CARGO BOX SIZE(M) | 5.8 X3.2 X1.6(30M3) |
CARGO BOX MATERIAL | Q700 HIGH STRENGTH STEEL PLATE |
CARGO BOX MATERIAL THICKNESS (MM) | BOTTOM 10, SIDE 8 |
HYDRAULIC | FRONT LIFTING CHINA HYVA |
MAX LIFTING ANGLE(°) | 51 |
