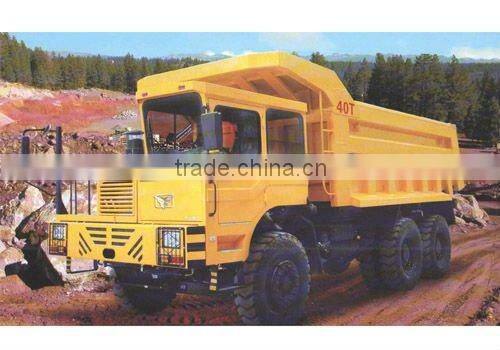

TY340-2PT364W Heavy off Road Vehicle, Duty off Road Dumper,off Road Truck

MODLE

TY340-2PT364W


DIRVE METHOD

6X4

CURB WEIGHT(KG)

18000

PAYLOAD(KG)

28000

TOTAL MASS(KG)

46000

DIMENSION(MM)

8420X3050X3550

MAX SPEED(KM/H)

62

MIN. CLEARANCE(MM)

330

MIN TURING RADIUS (M)

LESS OR EQUAL TO10.5

MAX GRAND ABILITY (%)

40

APPROACH ANGLE/ANGLE OF DEPARTURE(°)

33/51

WHEELBASE(MM)

3600+1560

WHEEL TRACK(MM)

FRONT 2368, REAR2252

CAB

SIDE PALCED AND MINERAL CABINE

ENGINE MOLD

WEICHAI WD12.336

DISPLACEMENT(L)

11.596

RATED HORSEPOWER(KW/PS)

247/336

MAX TORQUE /ROTATING SPEED(NM/MIN)

1350/1300-1500

GEARBOX MODEL

FAST 9JSD180A

FRONT AXLE

10T

REAR AXLE

18TX2

EMISSION

EURO II

FRAME

320H X1020W X(8+7)MM, 610L STEEL

BRAKING SYSTEM

DOUBLE-WAY BRAKE WITH WEVB

ELECTRONIC SYSTEMS

24V

AIR FILTER

THREE ELEMENTS DISSERT AIR FILTERS

FUEL TANKER CAPACITY (L)

400L

TYRE

13.00-20

CARGO BOX SIZE(M)

5.6 X2.6 X1.5(21M3)

CARGO BOX MATERIAL

Q700 HIGH STRENGTH STEEL PLATE

CARGO BOX MATERIAL THICKNESS (MM)

BOTTOM 8, SIDE 6

HYDRAULIC

FRONT LIFTING CHINA MADE

MAX LIFTING ANGLE(°)

51
