Specifications

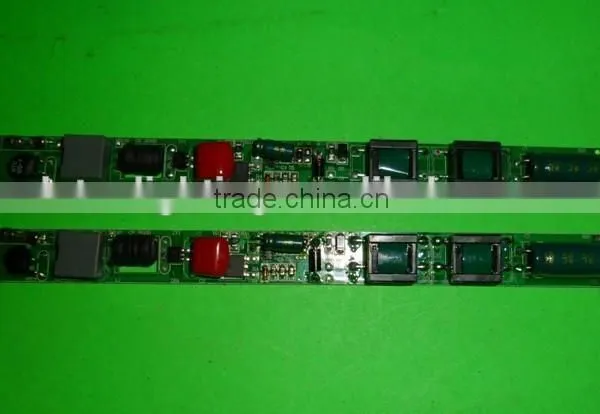

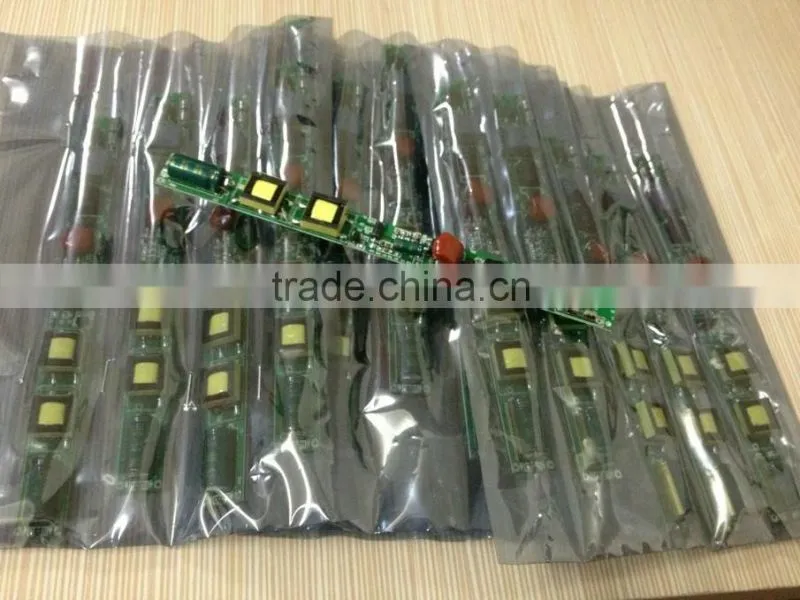

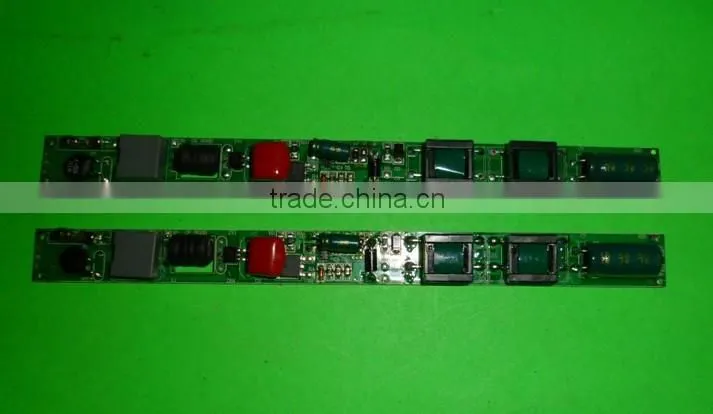

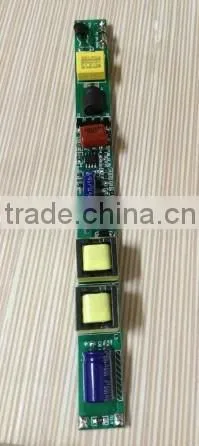

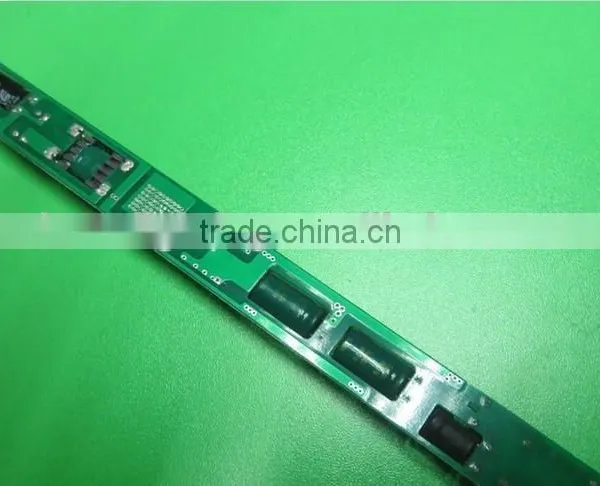

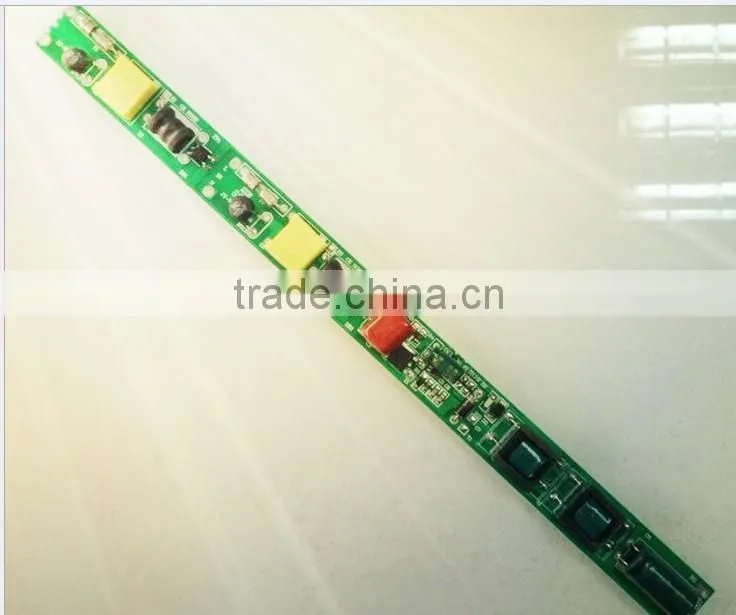

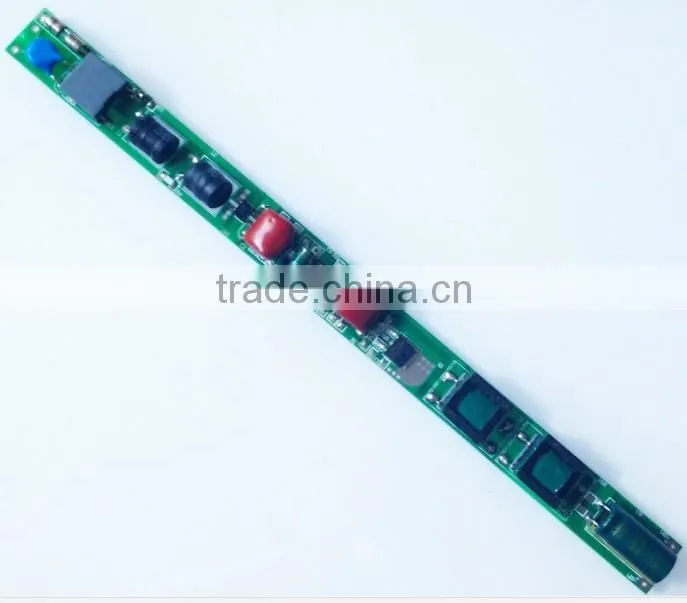

T5 led tube driver1.Input voltage:AC110~265V
2.Output voltage:72~84V
3.current:350MA
4.power:30W
T5 led tube driver specfication
| 80V 350MA non-isolated led driver test reports | ||
| Output | no-load Max voltage | 120V±5% |
| constant current range of application | 72V~84V | |
| constant current | 350MA | |
| string quantity | 24 string | |
| Max power | 30W | |
| ripple wave and noise Max | 500mvp-p | |
| constant current erro | ±3% | |
| load adjustment rate | ±3% | |
| start,rise time | <3S 230VAC full load | |
| maintain time | 10ms 230VAC full load | |
| Input | voltage scope | 110V~265V |
| Frequency scope | 47~63HZ | |
| power factor | PF≥0.97 230VAC( full load rated output voltage) | |
| efficiency(230V AC) | ≥0.95 | |
| alternating current | 0.123A/230AC | |
| surge voltage | 30A/230V | |
| leak current | <0.15MA/265AC | |
| protection | Over-protection current | protection type:stop work,rocover after unusual remove |
| short circuit protection | protection type:stop work,rocover after unusual remove | |
| thermal protection | protection type:stop work,rocover after unusual remove | |
| environment | working environment | 20%~90% |
| working temperature | —30~80°C | |
| storange temperature ,humidity | 40~80°C,10~95%RH | |
| temperature factor | ±0.03%/°C | |
| others | size | 185*16MM |
| adaptor | EFD(more big better for heat dissipation | |
T5 led tube driver advantage
1. Overload Protection,Overheating Protection
2. Over Voltage Protection,Short Circuit Protection
3. Easy Installation for LED Lighting
4. LED driver for T8,T9,T10 LED tube
T5 led tube driver Detailed description:
1. Adopts integrated device design, low temperature rise, low calorific value.
2. High stability, drive stable work, output current constant, no drift.
3. High security, suitable for high humidity, high dust, strong vibration environment of use;Chip inside integrated over-voltage, over-current, overheat protective circuit.
4. Has the maximum output power limiting function, to avoid the impact of the LED
5. Long use life design,normal life in 50,000 hours.
6. Through the corresponding temperature testing, aging test, efficacy test and short circuit testing.
7.May be based on customer demand of custom-made related size and function driver module.
T5 led tube driver Installation and Working environment:
1. Make sure work in proper environments are stated in this Guide.
2. Do not overload.
3. Avoid free of load while a power supply is powered on, keep proper loading
4. Always keep good ventilation
5. Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other.
6. Keep away from inflammable or explosive environments.

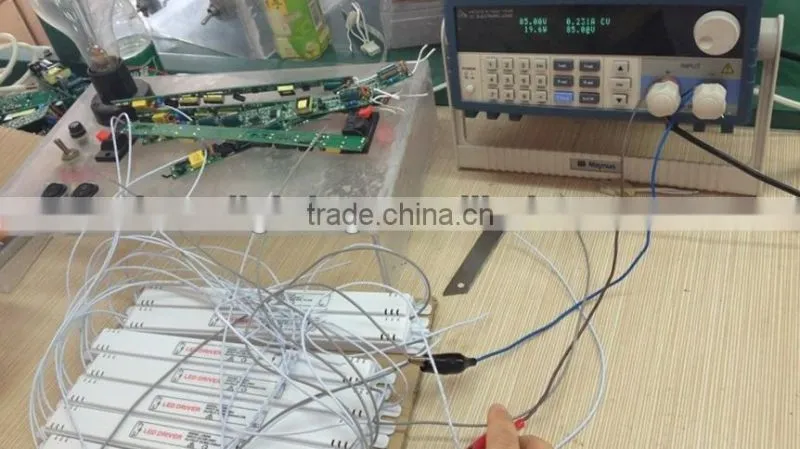

our equipment show
