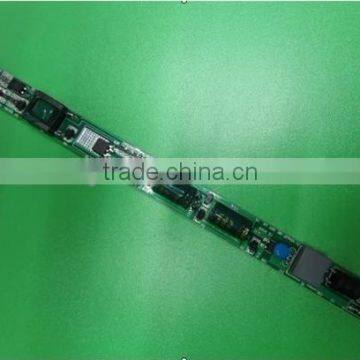

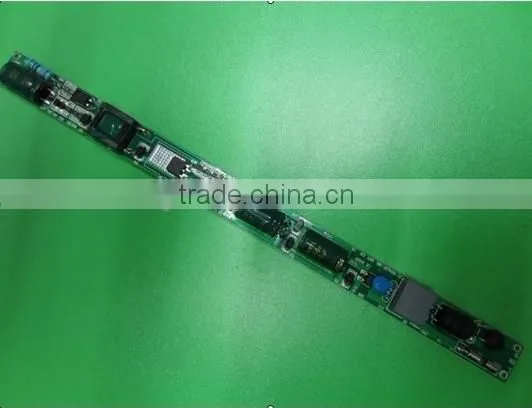

Help Center240MA Non-isolated Led Tube Driver
Related Products
Specifications
240MA non-isolated led tube driver1.input voltage:AC85~265V
2.Output voltage:30~100V
3.Current:40~250MA
4.power:4~25W
240MA non-isolated led tube driver specfication
Manufacturer Information |
Part Number |
LT-4~25W |
Product name |
30-100V 4~25W T8 built-in Non-isolated led tube driver |
|
Sphere of application |
T8 built-in |
|
|
Input
|
Input voltage range(Vac) |
100-240V |
Input voltage frequency(Hz) |
47~61
|
|
Load input current(mA) |
150Ma max@AC 220V |
|
Start surge current(A) |
1A max |
|
Startup delay time(S) |
≤1 |
|
Power factor |
≥0.96 |
|
|
Out put
|
Output normal power(W) |
4~25W |
Output voltage range(Vdc) |
30~100V |
|
Normal output current(mA) |
40~250MA± 15mA |
|
Short circuit protection |
Yes |
|
Light protection |
Yes |
|
Line regulation(%) |
±5 |
|
Loading effect(%) |
±10 |
|
Start output current overshoot(%Io) |
5 |
|
Ripple & Noise (mV) |
5 |
|
Start setting time(ms) |
30 |
|
|
Protection
|
Input under-voltage protection(Vac) |
95 Max |
Output open circuit voltage (Vdc) |
≤60 |
|
Protection level |
Bare |
|
|
Output short circuit protection
|
Hiccup mode, restore automatically |
|
Environment |
Working environment (°C) |
-20~55 |
Storage temperature (°C) |
-40~85 |
|
Relative humidity |
90%RH max. |
|
Temperature coefficient (%/°C) |
±0.08 max. |
|
Others |
MTBF |
18000h MIL-HDBK-217F,Tc=25°C |
Efficiency |
≥85% (typ,220Vac, According to the active power calculation |
|
weight (g) |
32+/-5% |
|
Appearance size(mm) |
178*15.5*10.5mm |
240MA non-isolated led tube driver Electric specfication
1:Constant current output
2:Output current accuracy:5%
3:Power efficiency:>90%
4:Power factor (PF):>0.95
5:Ambient temperature:-40°C—60°C
240MA non-isolated led tube driver Detailed description:
1. Adopts integrated device design, low temperature rise, low calorific value.
2. High stability, drive stable work, output current constant, no drift.
3. High security, suitable for high humidity, high dust, strong vibration environment of use;Chip inside integrated over-voltage, over-current, overheat protective circuit.
4. Has the maximum output power limiting function, to avoid the impact of the LED
5. Long use life design, normal life in 50,000 hours.
6. Through the corresponding temperature testing, aging test, efficacy test and short circuit testing.
7.May be based on customer demand of custom-made related size and function driver module.
240MA non-isolated led tube driver Installation and Working environment:
1. Make sure work in proper environments are stated in this Guide.
2. Do not overload.
3. Avoid free of load while a power supply is powered on, keep proper loading
4. Always keep good ventilation
5. Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other.
6. Keep away from inflammable or explosive environments.
240MA non-isolated led tube driver Application
1.LED Indoor Lighting,Reading Lamp,LED Ceiling Lamp,LED Curtain Light,
2.LED Downlight,Led tube,LED Entertainment Lighting,LED Exhibition Lighting,
3.LED Floor Lamp,LED Hospital Lighting,LED Kitchen Lighting,
4.LED Office Lighting,LED Oriental Lamp,LED Security Lighting,
5.LED Sensor Light,LED Stage Light,LED Wall Lamp,etc
