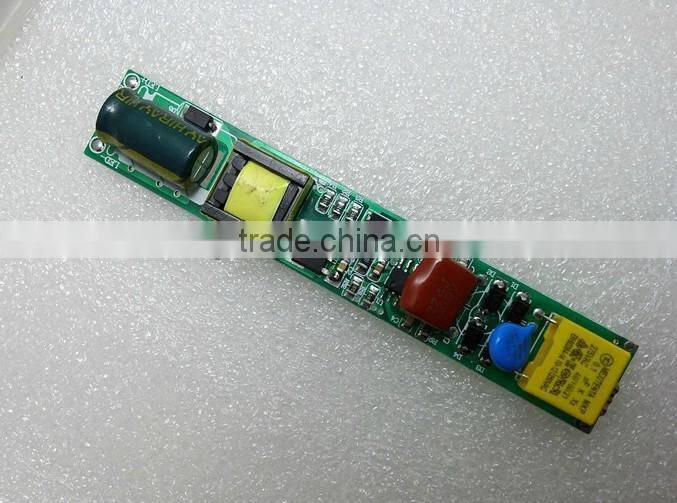

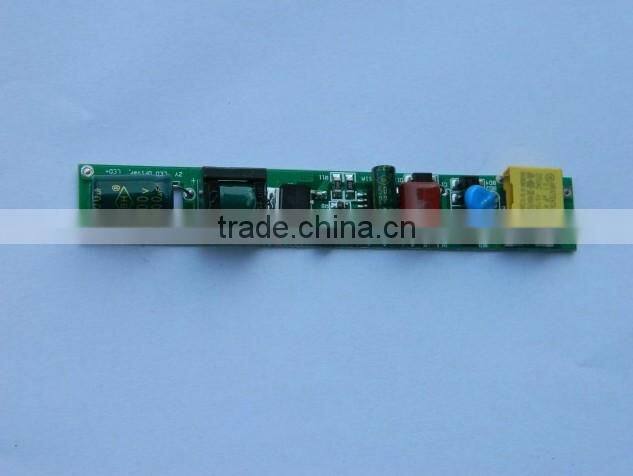

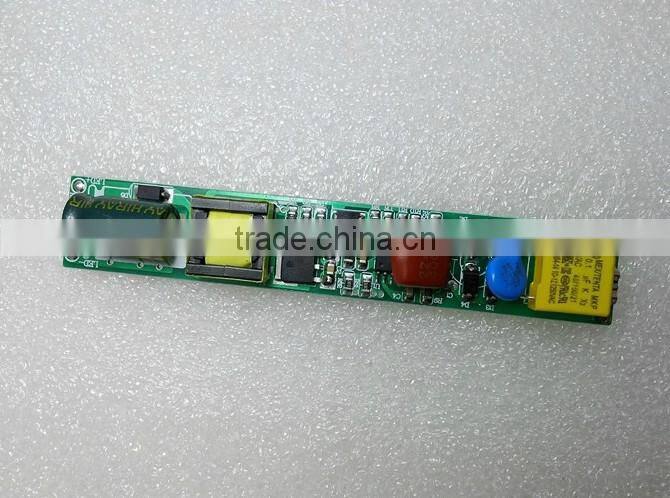

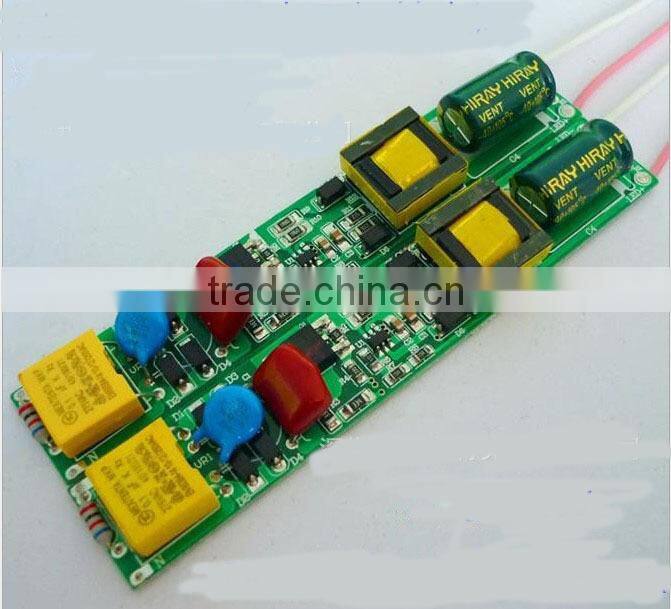

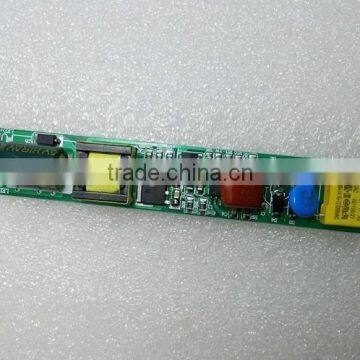

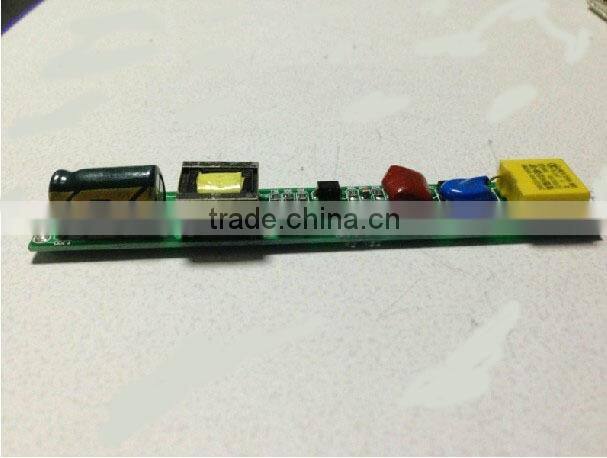

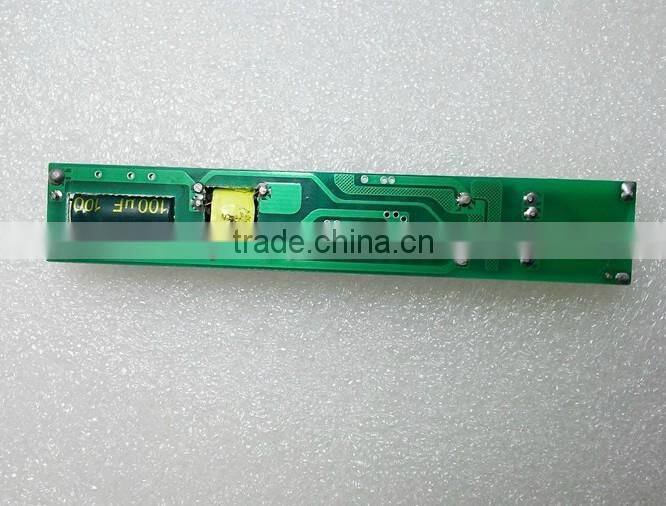

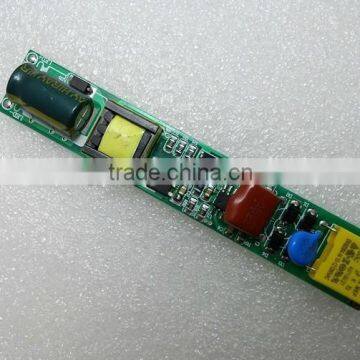

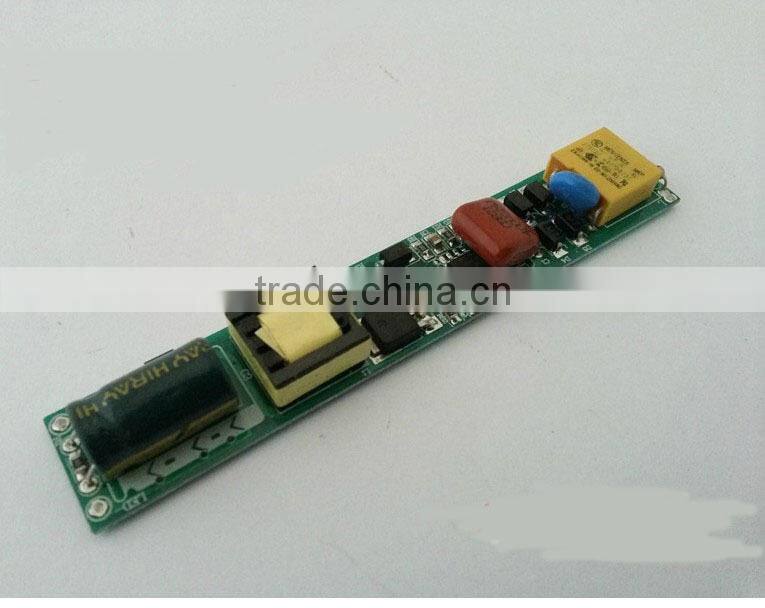

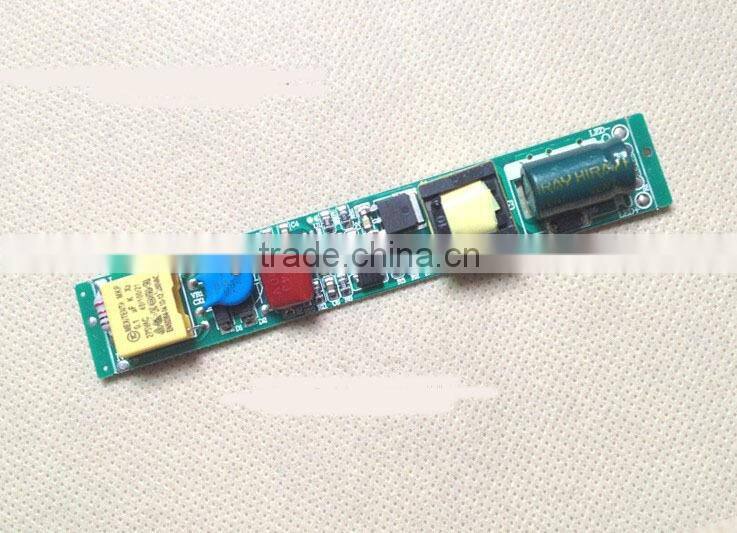

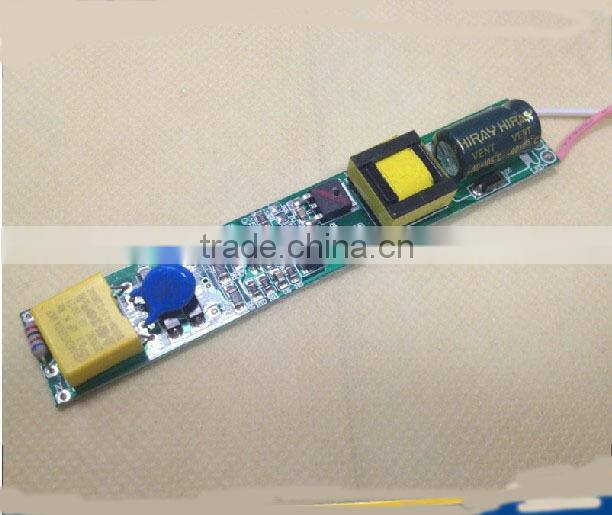

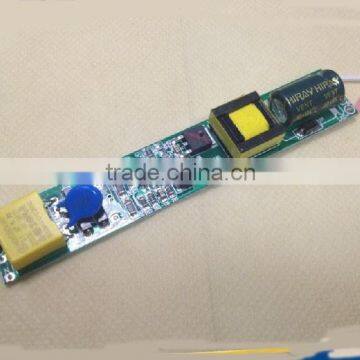

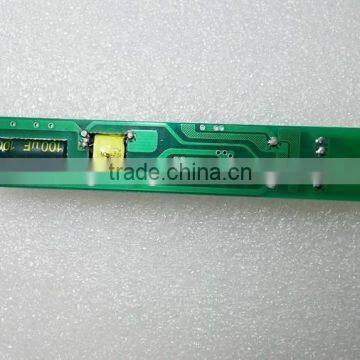

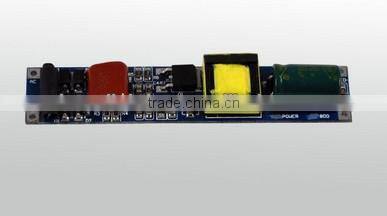

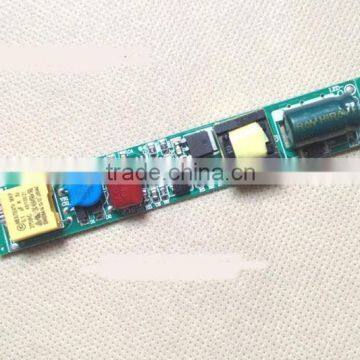

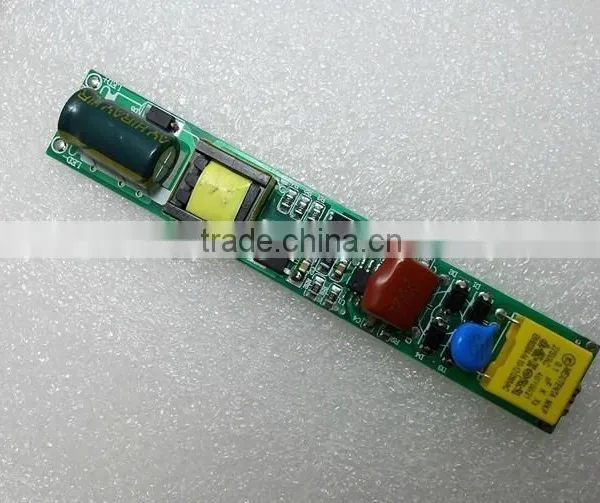

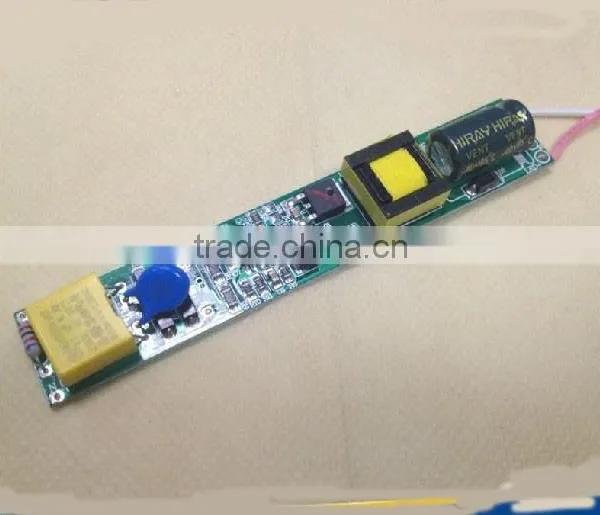

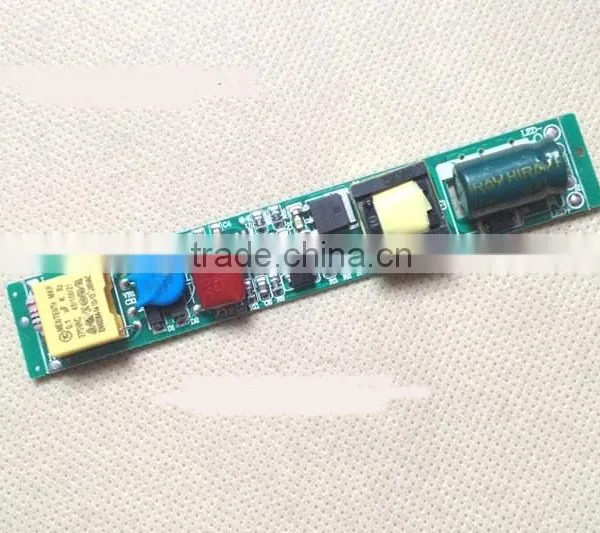

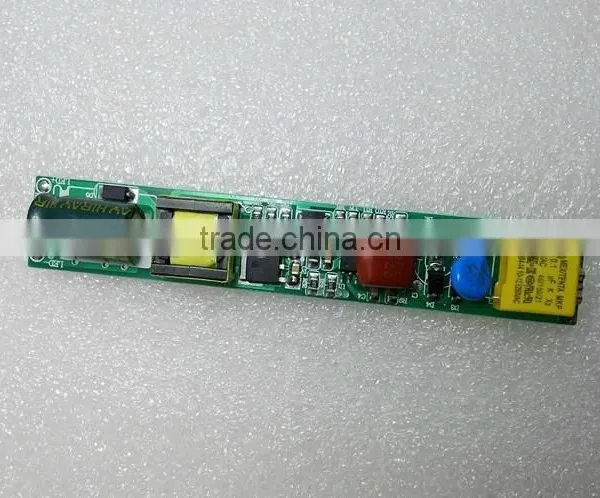

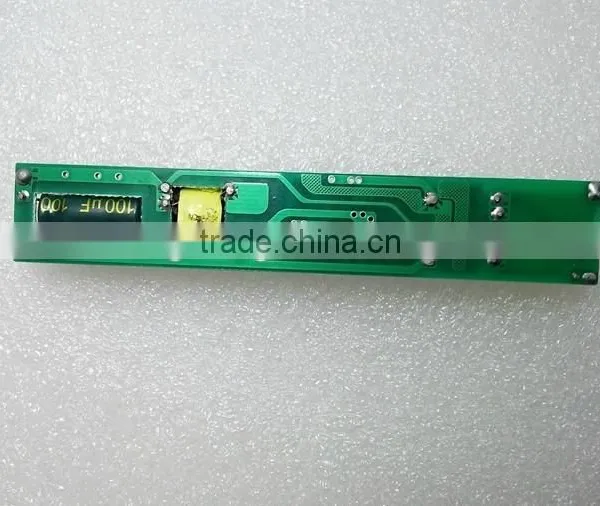

240MA Led Driver
US$ 0.9 - 1.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
lotoo
Model Number:
LT-LD-240MA
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
lotoo
Model Number
LT-LD-240MA
Output Power
Other, 4~25W
Output Type
Multiple
Input Voltage
Other, AC85~265V
Output Voltage
40~80V
Output Frequency
47~63HZ
Output Current
120~250MA
Specifications
250MA led driver1.Input Voltage:AC85~265V
2.Output voltage:40~80V
3.Output current:120~240MA
4.power:4~25W
240MA led driver specfication
item | Min | model | Max | unit |
Input current | ---- | ---- | 240 | mA |
Output voltage | ---- | 100-240 | ---- | VAC |
Input frequency | 47 | 50/60 | 63 | Hz |
PF | 0.90 | ---- | 0.95 | ---- |
No-load power | ---- | ---- | 1 | W |
Output current | 80 | 220 | 250 | mA |
Output voltage | 30 | ---- | 80 | V |
Output power | ---- | 19 | ---- | W |
efficiency | 90 | 91 | 93 | % |
+noise | ---- | ---- | 4 | V |
lifespan | 25000 | ---- | ---- | Hour |
---- | Have | ---- | ---- | |
Output short circuit protect | ---- | No | ---- | ---- |
Working environment | -40 | ---- | 70 | °C |
Store temperature | -40 | ---- | 85 | °C |
Working humidity | 10 | ---- | 90 | %(RH) |
70 | ---- | 106 | KPA | |
Product size | 95*16.5*10(8)mm | mm | ||
weight | 50 | g | ||
| 240MA led driver feature |
| 1.non-isolated high-precision constant current ± 5% |
| 2.Ultra-small size,compact design |
| 3.Safety protective device |
| 4.Overload& Short circuiting protection |
| 5.Overheating protection for your led lights |
| 6.Simple installation |
| 7.Measure up to SELV |
| 8.50,0000hrs MTBF |
| 9.Custom made service available |
| 240MA led driver description |
1.High efficiency, low power consumption led light driver |
| 2.Energy saving, environmentally friendly |
| 3.Stable quality, 100% test before delivery |
| 4.Rigorous ripple and low noise constant current led driver |
| 5.Over-heat, over-load, short-circuit & open-circuit protection |
| 6.Quick assembly and easy installation led light driver |
| 7.Suitable for indoor LED lights |
| 240MA led driver Environment |
1.Working Temperature: -36 ~ +50o C |
| 2.Working Humidity: 10% ~ 90% RH non-condensing |
| 3.Storage Temp., Humidity: -20 ~ +85o C, 10% ~ 95% RH |
| 4.TEMP. Coefficient: ± 0.03%/o C (0 ~ 50o C) |
| 5.Vibration: 10 ~ 500Hz, 2G 10min. /1cycle, period for 60min. Each along X, Y, Z |
240MA led driver Applications |
| 1.Office lighting, Artwork lighting, Display case |
| 2.Home lighting |
| 3.Commercial lighting, such as led tube, Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc. |
| 4.Hotel, Restaurant lighting |
| 5.Other public lighting |
| 6.Important Parameter |

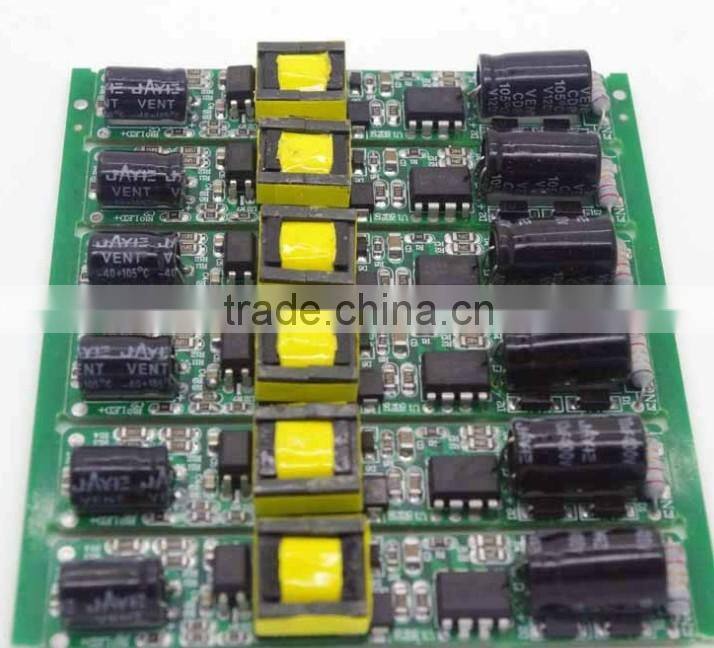

Our euipment show
