Brushless Connecting Rear Axle

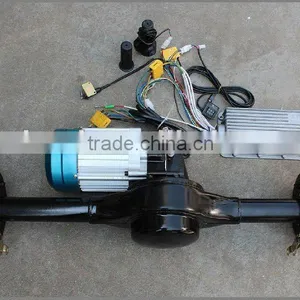

Brushless Connecting Rear Axle thumbnail-1
Brushless Connecting Rear Axle photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DT
Model Number:
770mm,800mm,900mm,1000mm,1100mm,1200mm
Contact Supplier Request Quote Chat Now
Taizhou Datai Machinery & Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DT
Model Number 770mm,800mm,900mm,1000mm,1100mm,1200mm
Certification CCC, CE
Type Gear Motor
Torque 45n.m
Construction Permanent Magnet
Commutation Brushless
Protect Feature Waterproof
Speed(RPM) 500-700rpm
Continuous Current(A) 28a
Output Power 1000w
Voltage(V) 48v
Efficiency IE 2

Specifications

dc motor 48v
brushless motor 800w
PM motor 700rpm
gear motor 45N,m
hall motor 1000kg



brushless connecting rear axle

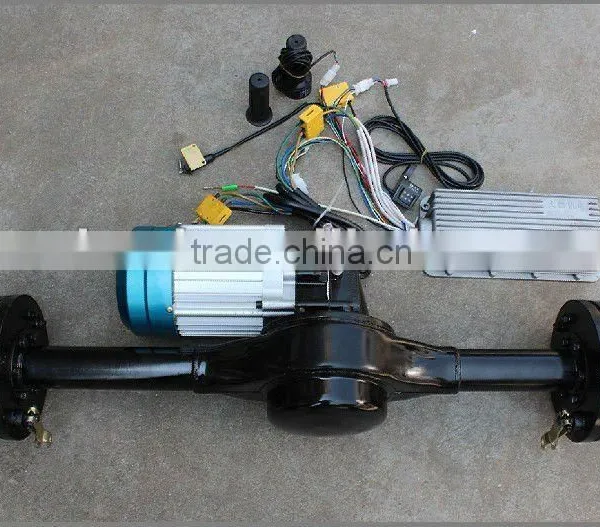

complete set of a transaxle kit as shown in the picture(1.brushless dc Permanent magnet gear motor ntroller 3.rear transaxle 4.two direction awith 5.brake power switches nnection box 7.afterburner start switch 8.throttle) Rear Transaxle size:770+70mm+70mm,900mm+70mm+70mm,1000mm+70mm+70mm,1100mm+70mm+70mm,1200mm or accoding to your Requirements,Brake hub Diameter:180mm(35km-45km/h) it use for Electric tricycle(passenger and van)CCC,CE
brushless connecting rear axle

motor details

Rated Maximum load Eff Climbing degree
voltage current Power Speed torque
48V 25A 800W 3000rpm 40N.m 1000KG 83% 20-30
48V 28A 1000W 3000rpm 45N.m 1200KG 83% 20-30
60V 25A 800W 3000rpm 40N.m 1100KG 83% 20-30
60V 28A 1000W 3500rpm 45N.m 1300KG 83% 20-30
60V 30A 1200W 3500rpm 50N.m 1400KG 83% 20-30
60V 32A 1500W 3500rpm 60N.m 1500KG 83% 20-30
72V 28A 1000W 3500rpm 50N.m 1400KG 83% 20-30
72V 30A 1200W 3500rpm 60N.m 1500KG 83% 20-30
72V 32A 1500W 3500rpm 70N.m 1600KG 83% 20-30
controller details

Rated Maximum limit under voltage brake handle voltage brake blackout
voltage Power
48V 800W 75A 41.5±0.5V 1.2-4.3V low level
48V 1000W 80A 41.5±0.5V 1.2-4.3V
60V 800W 75A 50.5±0.5V 1.2-4.3V
60V 1000W 80A 50.5±0.5V 1.2-4.3V
60V 1200W 85A 50.5±0.5V 1.2-4.3V
60V 1500W 90A 50.5±0.5V 1.2-4.3V
72V 1000W 75A 63±0.5V 1.2-4.3V
72V 1200W 80A 63±0.5V 1.2-4.3V
72V 1500W 85A 63±0.5V 1.2-4.3V
