Specifications
magic color led guardrail tube1.Voltage:AC85~265V
2.Power:12W
3.led quantity:48pcs Epistar led
4.magic color ,waterproof
magic color led guardrail tube specfication
| LED model | 3528 SMD LED (single color) /5050 SMD LED (RGB) |
| RGB Section | 6sections and 16sections |
| Materials | high quality PC materails ( Resisting ultraviolet radiation.) |
| Cover/Housing color | Milk White (Or Transparent) |
| Tube Shape | D shape (Or Round: O) |
| Length | 1 m (or 150cm. 50cm), Diameter:D50x37,D50x50 |
| LED Quantity | 108PCS/meter (single color) and 48PCS/meter(RGB) |
| Consuming Power | 10W per meter |
| Available Color | RGB, Yellow,Blue,Green,White,Red |
| Working voltage | 12V DC/24V DC/120V AC/240V AC |
| Protection Grade | IP65, Quakeproof, Acidproof. |
| Life Span | >50000 hours |
| Working Humidity | 0%-90% |
| Interior control or Exterior Control | SD card/CF card/on line/off line |
magic color led guardrail tube Feature
1.We use SMD RGB 5050 on our tubes to ensure clear and pleasant light beam.
2.We make waterproof solution both on PCB and heads of tube to ensure IP67.
3.With Ledwalker controller and software, it can achieve color fading, skipping, Scanning, chasing, and play flash and video, etc.
4.After installation, the DMX addresses can be set automatically, solving the trouble of setting DMX address manually in a project.
5.Energy-saving, low-cost of maintenance, and long service life.
6.line extend on the side of the tube, and make sure there is no gap on the top of each tube.
magic color led guardrail tube advantage
1.low power consumption,energy-saving.
2.strong weather resistance and anti-UV performance.
3.100% of the products go through 48H aging test to guarantee stability.
4.circuit board protected by epoxy resin on both sides, protection grade IP65.
5.basically free of maintainence for low heat,long life span and high IP grade.
6.easy installation,connect each tube with powersupply wire and signal wire.
7.ultra bright LED as light source, extremely strict luminance and color sorting, excellent effects of color
mixing.
8.strengthen glass , static spray-paint, small cubage, simple mounting , big angle for lighting area, good-
looking, dustproof and no creepage.
9.led hurdle lamp, various colors compounding-form as single colors( red , yellow , green, blue, pink and
white). Seven colors gradual changing and seven colors jumpy

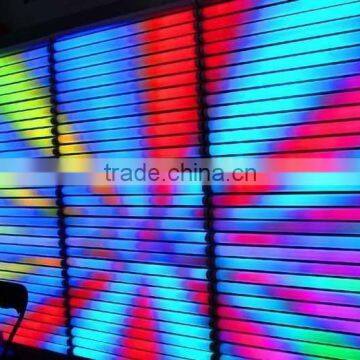

magic color led guardrail tube application
1) Mood lighting for municipal roadways,streets,bridges,housing projects and public parks
2) Indoor and outdoor decoration lighting
3) Architectural decorative lighting
4) Emergency and security lighitng
5) Backlighting for signage letter
6) Window display lighting
7) Channel letter lighting
8) Path&Contour marking
9) Under-cabinet lightis
our equipment show
