Interchangeable AC Plug Switching Power Supplies
- 0 per Month
- Hong Kong
- ME Series Modules High Stability High Voltage Power Supply for Microchannel Plates
- MMC Series DC High Stability Voltage Power Supply for Microchannel Plates (100V-600V,0.1W)
- Brand new power box 640C0022G01 York control system motherboard power supply GLC75D-CVG
- Power Supplies TVD1.3-15-03 Original Stock
- 10W 2.5KV Isolation Wide Input AC/DC Converters
- 30W Wide Voltage Input DC/DC Converters power supply
Product Details
Place of Origin: | China | Brand Name: | manca.hk | Model Number: | PA10XX Series |
Output Power: | 1 - 50W |
Product Description
Specifications
MANCA. HK---custom power solutions, power supply & charger, speedy solutions to reduce design cycle.MANCA. HK---custom power solutions, power supply & charger, speedy solutions to reduce design cycle.
MANCA. HK has wide range of standard product platforms, with an emphasis on custom solutions / applications, to reduce the design cycle. We have proven design, engineering, quality control and manufacturing. We provide speedy solutions and helps customers to shorten their time-to-market.

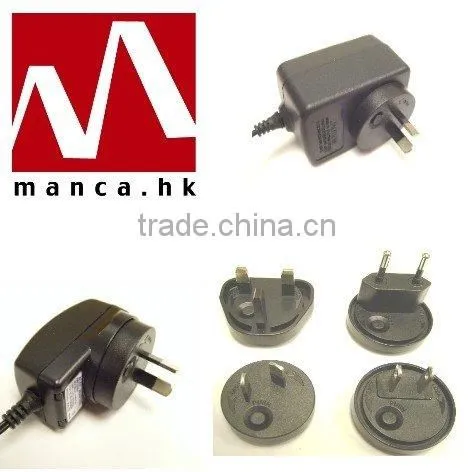

PUSH & ROTATE-creative design of Interchangeable AC plugs. It is available in 4 versions (EURO, UK, AUS and US / JP) . No screw design and easy to change the AC plug adaptor. Our products have light weight and compact size. The PA series is available from 5W, 10W, 20W and 30W. We have wide range of output voltage from 3. 3vdc to 30Vdc. It is best option for customers who want to reduce their power supply inventory.
ACCOMMODATE UNIVERSAL AC INPUT
LIGHT WEIGHT & COMPACT SIZE
MEET UNIVERSAL SAFETY STANDARDS
EMI MEET FCC, CISPR 22 CLASS B
CE MARKING COMPLIANCE
CEC EFFICIENCY REGULATIONS (OPTIONAL)
ELECTRICAL CHARACTERISTICS:
Input voltage range: 100 to 240Vac
Input frequency: 50 to 60Hz
Input current: 0. 4a rms max
Output voltage: 5Vdc / -5%
Output current: 1. 0a
Insulation resistance: 100M Ohm or greater (for 500Vdc)
Hi-pot: 3, 000Vac 10mA 3s
Temperature: Operation 0 to 40C; Storage-20 to 70C
Humidity: Operation 15 to 95% ; Storage 5 to 95%
Altitude: Up to 10, 000 ft
MECHANICAL:
Dimensions: 42 (W) x 35 (H) x 58 (L) mm
Tolerance: 2 mm
Length of DC power cord: 1, 500mm / -30mm
DC plug: 3. 5 x 1. 1 x 8. 0mm)
Weight: Around 65g (adaptor)
PROTECTIVE FUNCTIONS:
Output over voltage protection: When overvoltage is detected, the output will stop.
Output short circuit protection: During shorted, the output will cease (auto-recovery) .
Output over current protection: During over current, the output will cease (auto-recovery) . .
