High Temperature Rotary Paddle Level Switch

Guangdong Kaidi Energy Technology Co., Ltd. Gold Verified Supplier

5Yrs

US$ 85 - 130 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

KDSS86FT

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name KD

Model Number KDSS86FT

Specifications

1. for solid materials
2. Clutch device protect
3. Four position sensitivity adjustable
4. High temperature up to 350 C

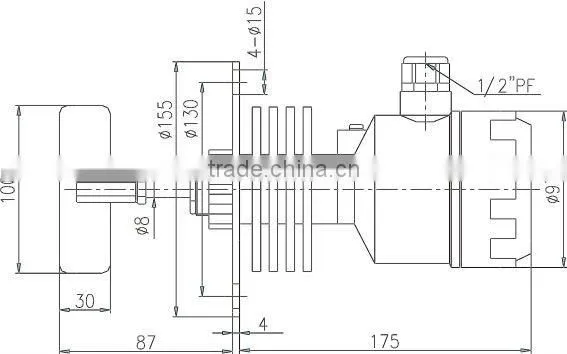

High temperature Rotary Paddle Level Switch

High quality motor;

Operate reliable;

Four position sensitivity adjustable, applied widely;

Clutch device protect motor;

Double shaft sealing, protection class: IP65

Stainless-steel rotary probe and paddle

*Test strictly;

* High/low temperature type, extension length, all kinds of paddle, optional

Measure level for powdery solid material:

*Cereal *animal feed *wood chip *Plastic * sand *granular material *Rubber *agglomerate charge *cement

Power source:	110VAC, 220VAC, 50/60HZ
Power Consumption:	3W
Contact capacity:	SPDF 220VAC/5A 220VAC/3A
Rotary speed:	1RPM
Insulation voltage:	AC1500V/min
Torque:	30~100kg.cm
Specific gravity:	>=0.5 g/cm³
Connect:	screw probe 1"PF / 3/4"PF Flange JIS 2-1/2*5Kg/cm³

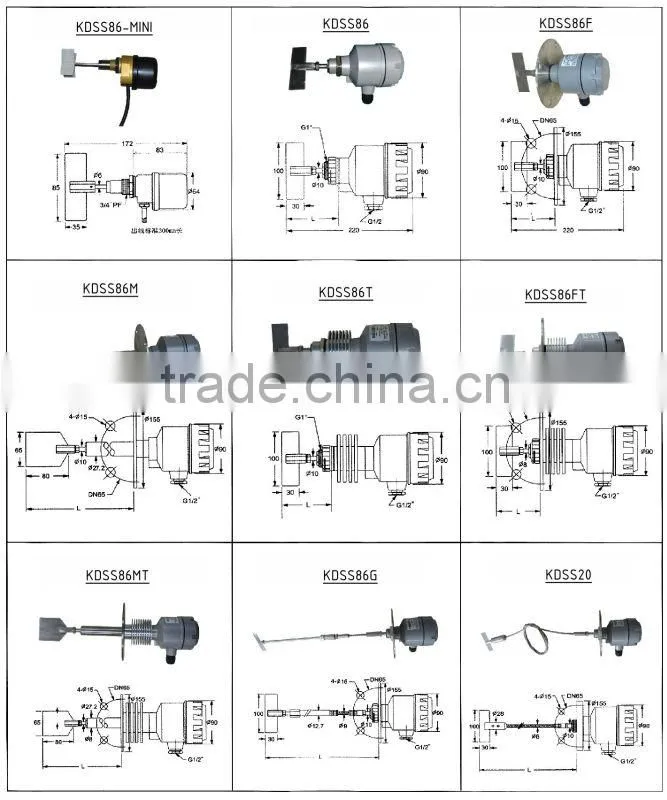

Model	Desc.
KDSS86:	standard screw connect
KDSS86F:	standard flange connect
KDSS86M:	shaft protective tube type
KDSS86G:	shaft length adjustable type
KDSS86FT:	hi -temp. flange type hi-temp.
KDSS86MT:	shaft protective tube type
KDSS86GT:	hi-temp. shaft length adjustable type
