Rotary Paddle Level sensor for Powder

FOB Price

USD $65 - $160 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	KD
Model Number	KDSS86 Series

Packaging Details

Standard exporting carton, 2 PCS in 1 inner box, 6 PCS in an outer box

Product Description

Specifications

1. Operate reliable Level sensor
2. Four position sensitivity adjustable, applied widely
3. Clutch device protection

High precision, robust Level controller

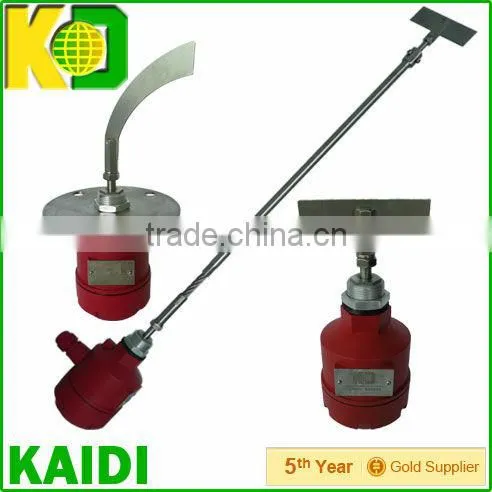

Rotary Paddle Level sensor

High quality motor;

Operate reliable;

Four position sensitivity adjustable, applied widely;

Clutch device protect motor;

Double shaft sealing, protection class: IP65

Stainless-steel rotary probe and paddle

*Test strictly;

* High/low temperature type, extension length, all kinds of paddle, optional

Measure level for powdery solid material:

*Cereal *animal feed *wood chip *Plastic * sand *granular material *Rubber *agglomerate charge *cement

Power source:	110VAC, 220VAC, 50/60HZ
Power Consumption:	3W
Contact capacity:	SPDF 220VAC/5A 220VAC/3A
Rotary speed:	1RPM
Insulation voltage:	AC1500V/min
Torque:	30~100kg.cm
Specific gravity:	>=0.5 g/cm³
Connect:	screw probe 1"PF / 3/4"PF Flange JIS 2-1/2*5Kg/cm³

Model	Desc.
KDSS86:	standard screw connect
KDSS86F:	standard flange connect
KDSS86M:	shaft protective tube type
KDSS86G:	shaft length adjustable type
KDSS86FT:	hi -temp. flange type hi-temp.
KDSS86MT:	shaft protective tube type
KDSS86GT:	hi-temp. shaft length adjustable type
