water tank level float switch
- 8000 Set / Sets per Month
- China
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KAIDI | Model Number: | MF-5202 |
Packaging Details
Each single set in inner carton box, 20PCS in a outer case.
Product Description
Specifications
1. liquid Controls,float level sensor,2. Stainless steel case, long life.
3. Temperature: -20~130 C
4. Material: SUS316L

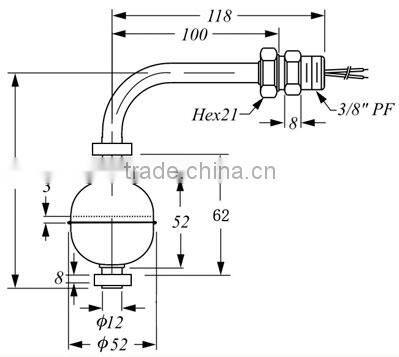

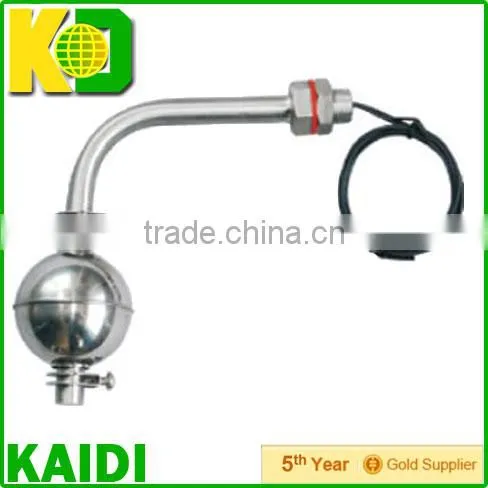

Stainless steel Horizontal water tank level float switch
Kaidi Fluid Controls will get you the right float switch or liquid level sensor for your application! Whether you need an off the shelf float switch or a custom designed liquid level sensor, we can help! Strain Measurement Devices is a technically driven design and manufacturing firm dedicated to helping customers solve their toughest sensor and measurement problems. KAIDI's talented staff has been designing custom sensors to measure force, pressure, temperature, weight, torque, liquid level and many combinations.
Contact Capacity: | AC220V/1A DC24V/0.5A |
Pressure rating: | <=1.5 Mpa |
Specific gravity: | 0.7 |
Output: | SPST NO/NC |
Temperature rating: | -20~130°C |
Protection rating: | IP68 |
Probe material: | SUS304/SUS316L |
Body material: | SUS304/SUS316L |
Mounting type:) | 1/8”PF(Customizable |
Cable length: | 500±10mm |
Installation: | Horizontal |
Anti-explosion: | No |
Company Profile
Guangdong Kaidi Energy Technology Co. Ltd, is leading supplier of process control instruments and safety switches, and specialized in R&D, manufacture, marketing and service of point level detection, belt conveyor protection. Main products include: belt sway switch, pull cord switch, level switch.
We have extensive experience in the field of energy, metallurgy, electric power, power, automation, electronics, chemical, government, municipal, education, water-treatment, pharmaceutical equipment, machinery, and other industries,
We achieve High-precision and High-quality products with sophisticated equipments, advanced testing instruments, professional talents and modern management.
Our management and technology team value brand, efficiency and quality, and carry out the managing standard of the ISO9001 Quality Control System, take integrity and quality as the principle. High purity products, Short delivery time and Best service.
