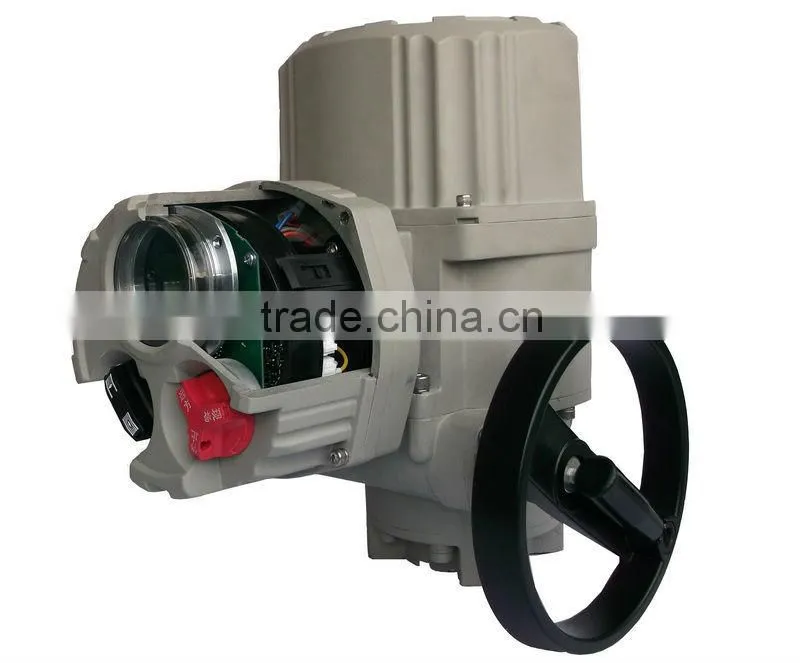

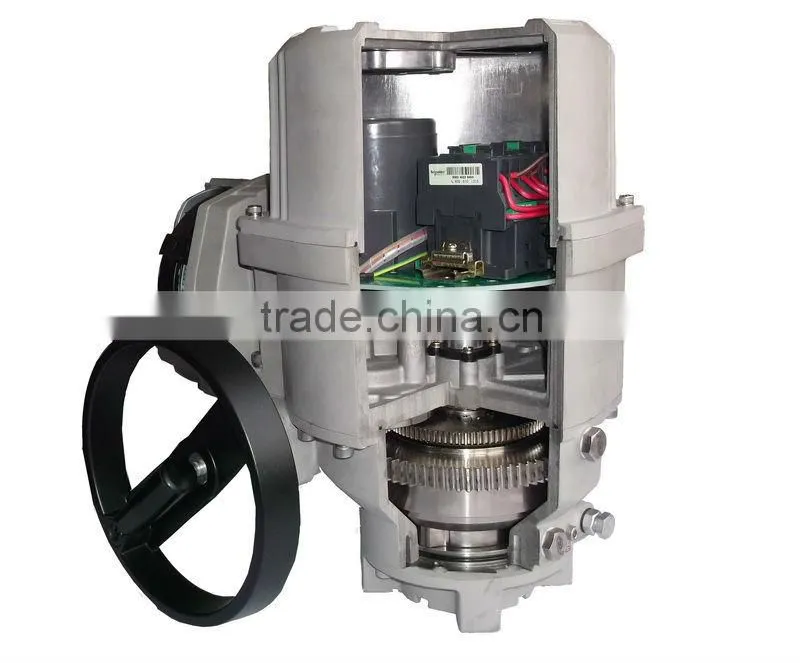

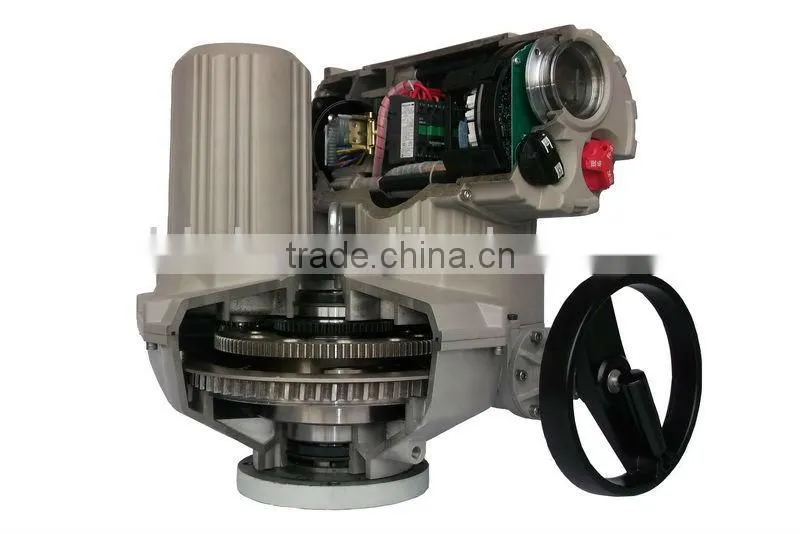

Help CenterElectric Linear Actuator
Related Products
Specifications
1. Torque : 50 NM ~ 3000 NM2. Operating time : 10 sec ~ 135 Sec .
3. Weatherproof: IP 65
4. Output: 4-20mA
Electric linear actuator delivers a complete range of actuators suitable for all multi-turn valve applications requiring control and indication flexibility. It offers end users ever higher standards of performance, build quality and overall value.
Direct torque output range from 34 Nm (25 lbf ft) to 3,000 Nm (2,200 lbf ft).
Power supply |
380VAC/50Hz/3ph, 220VAC/50Hz/1ph |
Please statement for other power supply in order form |
Input signals |
DC4~20mA. DC24V. AC220V. Fildbus |
|
Output signals |
DC4~20mA. |
6 status contacts can be configured at the local. 1 contacts for indicating remote or local. 1 contacts for indicating faults. |
Contacts capability |
250VAC/5A or 30VDC/5A |
|
CPT load |
≤750Ω |
|
Output torque |
see table 1 |
|
Output speed |
see table 1 |
|
Safety grade |
Watertight enclosure: IP68 |
|
Explosive proof |
Exd II CT4 |
|
Environment temperature |
-10°C~+70°C or optional: -30°C~+70°C |
|
Lubrication |
Senior lubricant |
|
Install |
Install flange conforms to the ISO5210:2001(GB/T12222-2005)(see table 3),the other configuration flange can be assembled yet according to user’s demand. |
|
Wiring holes |
One M40x1.5 and Two M25x1.5 spiral holes, cable diameter is 22~32mm , and water proof type adopts clamp tie-in; Explosion proof type adopts explosion proof tie-in or screw thread pipe. |
|
