Specifications
1. Connect all kinds of valve2. Used for isolation or regulating duties
3. Multi-Control Mode
4. Perfect Protection

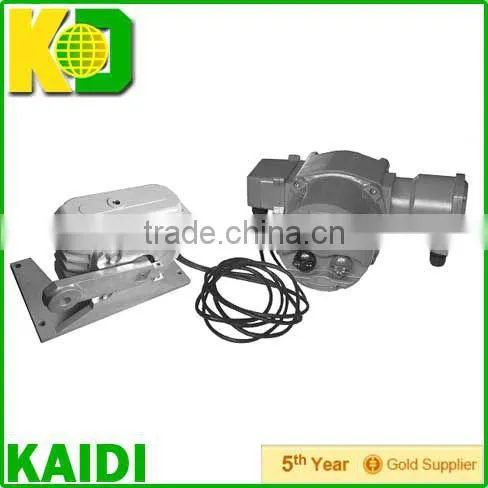

Actuator IP68 intelligent valve electric actuator
KAIDI has an exceptional workforce - the highly trained, forward-thinking engineers, technicians and support staff who each have a crucial role to play in maintaining KAIDI’s unrivalled reputation for innovation, reliability and first class customer support. The KAIDI family of products also includes pneumatic actuators as well as a comprehensive range of gearboxes and valve accessories.
Power supply |
380VAC/50Hz/3ph, 220VAC/50Hz/1ph |
Please statement for other power supply in order form |
Input signals |
DC4~20mA. DC24V. AC220V. Fildbus |
|
Output signals |
DC4~20mA. |
6 status contacts can be configured at the local. 1 contacts for indicating remote or local. 1 contacts for indicating faults. |
Contacts capability |
250VAC/5A or 30VDC/5A |
|
CPT load |
≤750Ω |
|
Output torque |
see table 1 |
|
Output speed |
see table 1 |
|
Safety grade |
Watertight enclosure: IP68 |
|
Explosive proof |
Exd II CT4 |
|
Environment temperature |
-10°C~+70°C or optional: -30°C~+70°C |
|
Lubrication |
Senior lubricant |
|
Install |
Install flange conforms to the ISO5210:2001(GB/T12222-2005)(see table 3),the other configuration flange can be assembled yet according to user’s demand. |
|
Wiring holes |
One M40x1.5 and Two M25x1.5 spiral holes,cable diameter is 22~32mm , and water proof type adopts clamp tie-in; Explosion proof type adopts explosion proof tie-in or screw thread pipe. |
|

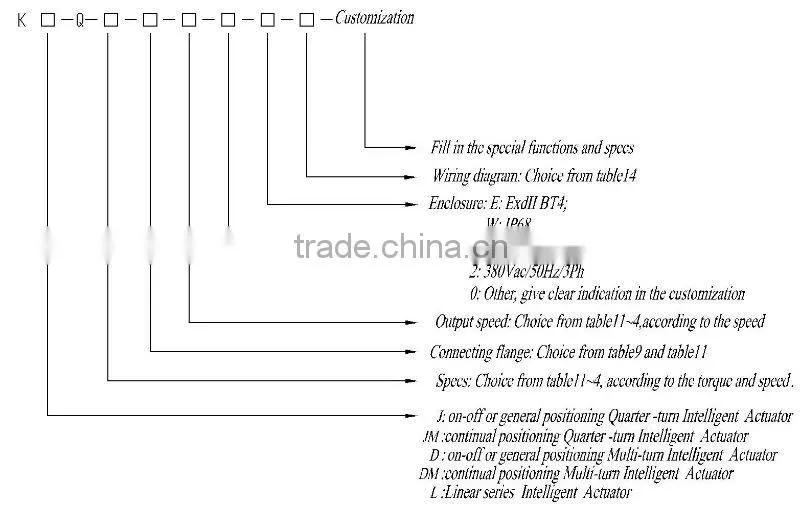

Model selection tables:
