Deviation Switch for Conveyor Protection
US$ 65 - 88
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KD
Model Number:
KBS20
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
KD
Model Number
KBS20
Specifications
1. Belt sway protection2. Stop the machine in case of deviation
3. Heavy duty rugged design
4. Weatherproof Type.: IP67

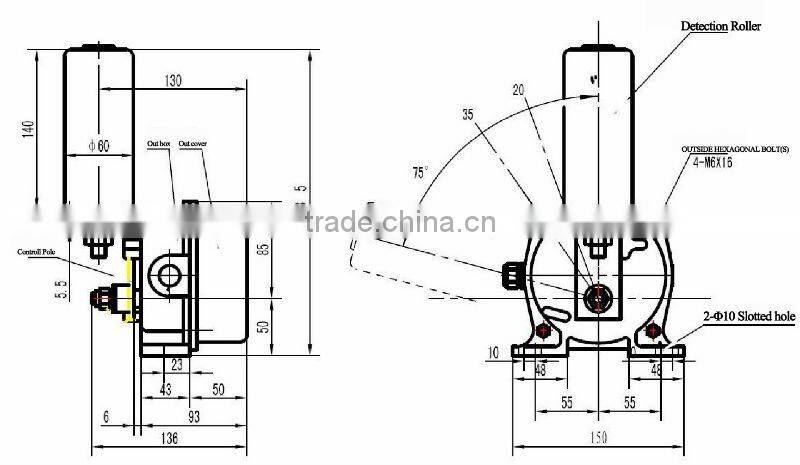

Deviation switch Belt Sway Switch is a protective switch for detecting the meandering (sway or deviation) of belt conveyors, and sends out an alarm signal and an emergency stop signal.
Suited to be used for belt breaka ge prevention and orefalling prevention due to the belt sway. Widely used in iron and steel, cement and chemical plants, thermal power plants, etc., since it is essential for safety operation of belt conveyors.
Reset mode |
Manual |
Number of contacts |
1a1b |
Contact capacity |
AC:90-380V, 5A |
Switch angle Level 1 |
20° |
Actuating Force |
3.4-5.4N (0.35~0.55kgf) |
Switch angle Level 2 |
35° |
Ambient temperature |
-20 °C ~ +60 °C |
Weatherproof Type. |
IP67 |
Color code |
Y100M20C70BL50 |
Cable connection |
8~12mm |
