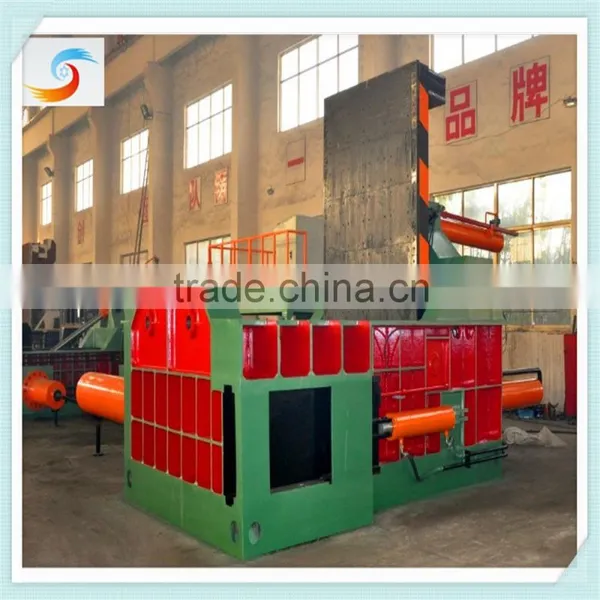

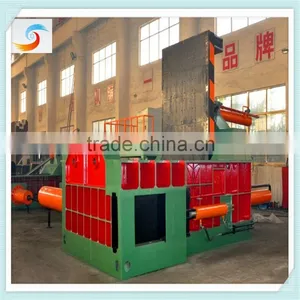

Y81T-250 hydraulic metal pressing machine with CE
Brief Introduction
Y81 series hydraulic mental baler for steel mills,recycling and processing industry and nonferrous,ferrous mental smelting industry .Can be all kinds of mental scrap,steelshaving,scrap steel,aluminum,copper and other qualified charging squeezed into a rectangular,cylindrical,otagonal shape and other shapes to reduce the cost of transportation and smelting torch.
Features
(1) Various models are hydraulic drive,manual or PLC automatic control operation.
(2) No footing bolts installed in place of wireless power can be equipped with diesel engines for power.
(3) Bale has turned the package ,side push package before the package in three ways.
(4) Extrusion pressure from 63-600 tons has 10 levels ,production efficiency from 0.5 tons/hour to 15 tons /hour .
(5) Charging box size and mass,sharp and size can be custom designed according to the material specification.
Technical specifications
| Model | Main Cyl. Force | Press Box Size | Bale Size | Capacity | Single cycle time | Motor |
| (Kn) | (mm) | (mm) | (ton/hr) | (s) | (kW) | |
| Y81T-63X | 630 | 800*500*450 | 200*200 | 0.8-1 | ≤75 | 7.5 |
| Y81T-63 | 630 | 1000*600*500 | 200*200 | 0.9-1.1 | ≤100 | 7.5 |
| Y81T-100 | 1000 | 1000*700*550 | 250*250 | 1.2-1.5 | ≤85 | 11 |
| Y81T-125A | 1250 | 1200*700*600 | 300*300 | 1.2-1.8 | ≤110 | 15 |
| Y81T-125B | 1250 | 1200*700*600 | 250*250 | 1.2-1.7 | ≤115 | 15 |
| Y81T-125C | 1250 | 1200*700*600 | Octagon 250*250 | 1.2-1.7 | ≤115 | 15 |
| Y81T-125KS | 1250 | 1400*800*700 | 300*300 | 1.8-2.2 | ≤120 | 22 |
| Y81T-160 | 1600 | 1400*900*800 | 350*350 | 2-3 | ≤150 | 22 |
| Y81T-160A | 1600 | 1600*1000*800 | 400*400 | 2-3.5 | ≤150 | 22 |
| Y81T-160B | 1600 | 1600*1200*800 | 400*400 | 2-4 | ≤150 | 30 |
| Y81T-200A | 2000 | 1600*1200*800 | 450*450 | 2.5-4.5 | ≤160 | 30,37 |
| Y81T-200B | 2000 | 1800*1200*900 | 500*500 | 3-5 | ≤160 | 37,44 |
| Y81T-250A | 2500 | 1800*1200*900 | 500*500 | 4-6.3 | ≤160 | 44,60 |
| Y81T-250B | 2500 | 2000*1400*900 | 500*500 | 5-6.3 | ≤160 | 44,60,74 |
| Y81T-250C | 2500 | 2000*1750*1200 | 500*500 | 5.5-6.5 | ≤160 | 44,60,74 |
| Y81T-315A | 3150 | 2000*1400*1200 | 500*500 | 5-6.5 | ≤160 | 60 |
| Y81T-315B | 3150 | 2000*1750*1200 | 600*600 | 5-7 | ≤160 | 60,74 |
| Y81T-400A | 4000 | 2000*1600*1200 | 600*600 | 6-7.5 | ≤160 | 74 |
| Y81T-400B | 4000 | 2500*2000*1200 | 600*600 | 8.5-13 | ≤160 | 90 |
| Y81T-400C | 4000 | 3000*2000*1200 | 600*600 | 8.5-13 | ≤160 | 90 |
| Y81T-400D | 4000 | 5000*2000*1200 | 700*700 | 10-15 | ≤160 | 135 |
Machine Parts
nude packing or wooden cases
Our company now has annual output of more than 3,000 sets hydraulic equipment, and has a high quality, young and innovative capability of research team, our company designates special products developed based on the needs of users.
