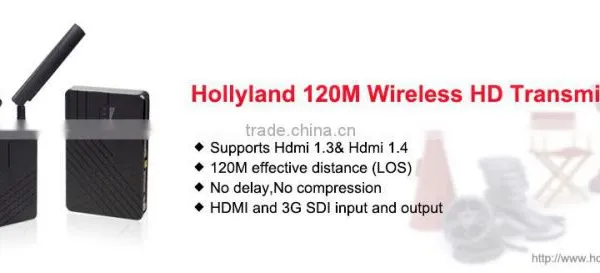

Hollyland 400ft Wireless HDMI/SDI HD Video Transmission Suite
Hollyland HLWH005 is a zero delay(<1ms) wireless video system that transmits uncompressed 1080p 60Hz video up to 400ft over the 5.1-5.9GHz band.
It includes one transmitter (HDMI/SDI input) and one receiver (HDMI/SDI output), 1 transmitter can support 4 receiver simultaneously under the same frequency band.
The wireless suite can accept wide range DC power input, which is suitable for many kinds of camera battery model.The suite also can sustain ±4 kV ESD (HBM, contact discharge), the industry class metal case and professional heat design would guarantee most robust reliability.
Features
Maximum transmission distance 400ft.
HDMI and SD/HD/3G SDI input and output
Highest resolution 1080p 60fps, no delay and no compression
Broadcast mode
5GHz ISM frequency band ,maximum 10 frequency channels
RX built-in antenna, more compact
Wide range power voltage input 7V-36V
Parameters
|
Transmitter |
Receiver |
Interface |
SDI Input (BNC female) HDMI Input (Type A female) 2 Antenna port (RP-SMA male) DC Input (4 pin LEMO female) |
SDI Output (BNC female) HDMI Output (Type A female) 5 Antenna port (RP-SMA male) DC Input (4 pin LEMO female) |
Supply Voltage Range |
7V-36V DC |
7V-36V DC |
Power Consumption |
<6W |
<7W |
Size |
(LxWxH ): 115x67x23mm, don’t include antennas |
(LxWxH ): 152x95x23mm |
Mass |
270g |
355g |
Input Video Format |
HDMI: 525i, 625i, 720p 50/59, 94/60, 1080i 50/59, 94/60, 1080p 23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425; 1xBNC |
/ |
Output Video Format |
/ |
HDMI: 525i, 625i, 720p 50/59, 94/60, 1080i 50/59, 94/60, 1080p 23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425; 1xBNC |
Input Audio Format |
SDI embedded 2 channel 24 bit/48KHz |
/ |
Output Audio Format |
/ |
SDI embedded 2 channel 24 bit/48KHz |
|
Signal Indicator
|
POWER-Green; VIDEO-Yellow |
POWER-Green; Wireless RSSI-Blue (4 LEDs); VIDEO-Yellow |
Frequency Band |
5.1-5.9GHz, Configurable with China, North American, Europe, etc |
5.1-5.9GHz, Configurable with China, North American, Europe, etc |
Modulation Mode |
OFDM 16QAM |
OFDM 16QAM |
Transmission Power |
Max. 18dBm |
/ |
Receiver Sensitivity |
/ |
-75dBm |
Occupied Bandwidth |
40MHz |
40MHz |
Temperature Range |
0~40℃ (operating condition); -20~60℃ (Storage) |
0~40℃ (operating condition); -20~60℃ (Storage) |
Compliance |
FCC; CE |
FCC; CE |

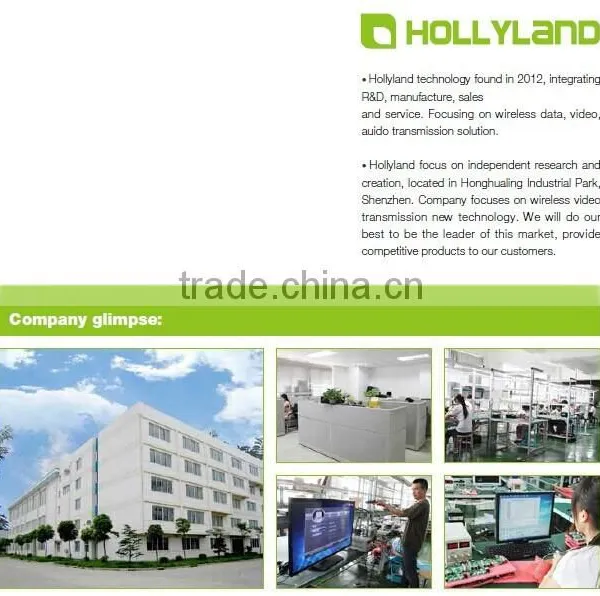

Hollyland technology found in 2012, integrating R&D, manufacture, sales and service. Focusing on wireless data, video, auido transmission solution.
Hollyland focuses on independent research and creation, located in Honghualing Industrial Park, Shenzhen. Company focuses on wireless video transmission new technology. We will do our best to be the leader of this marekt, provide competitive products to our customers.
