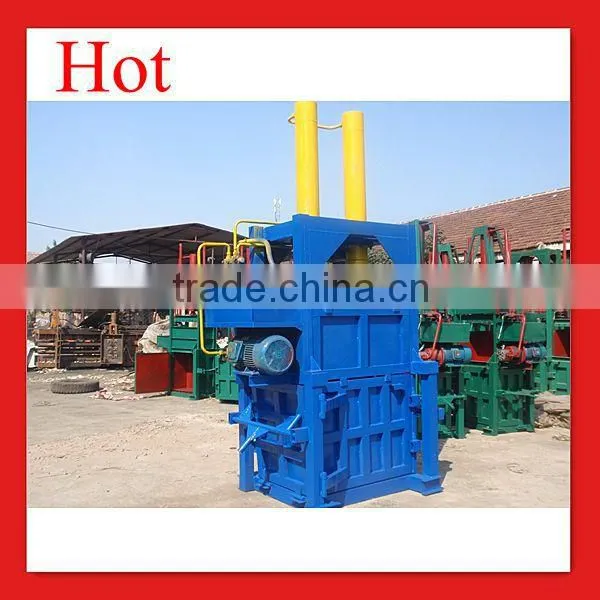

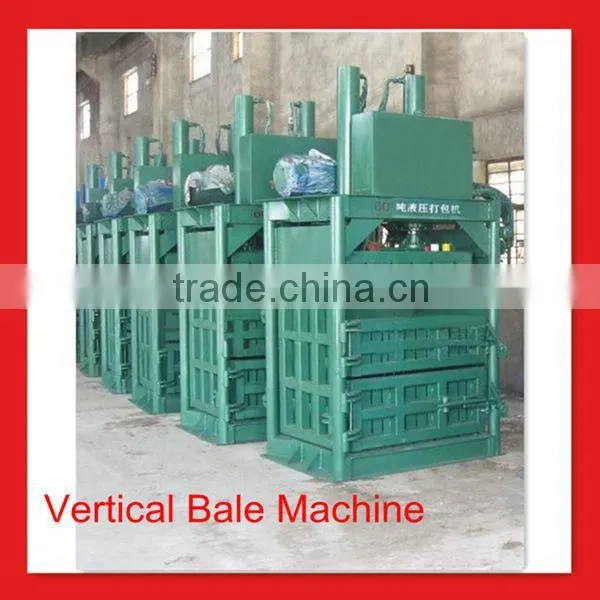

Vertical baler press for pet bottle
Our products have been exported to USA,Australia,Isral,UK,Germany,Dubai,Mexico,Vietnam,Canada,Italy,Singpore,Saudi Arabia,....
This machine is used for in mormal will waste and similar products with special packagine,extrusion forming ,which packaged with much smaller,achieve thereby reducing transport volume,save freight,for enterprises to increase efficiency.
Vertical baler press for pet bottle Detailed Technical Prameters
Model |
Type 10 |
Type 10 |
Type 20 |
Type 60 |
Type80 |
Box size (mm) |
800×400×600 |
800×400×600 |
1000×600×1000 |
1200×800×900 |
1200×800×1000 |
Allocation power(kw) |
7.5 KW |
3KW with a pupm |
13KW |
15kw |
15kw |
Capacity (bag/h) |
5-6 bag |
5-6 bag |
5-6 bag |
5-6bag |
5-6bag |
Bag weight (kg/bag) |
85 kg |
75kg |
150-200kg |
300-350kg |
450-500kg |
Oil cylinder |
Φ 125 * 1 |
Φ125*1 |
Φ125*2 |
Φ160*2 |
Φ180*1 |
Oil cylinder stroke |
1m |
1m |
1m |
1.2m |
1.2m |
Hydraulic oil cylinder stroke |
add 35kg oil three-phase electric |
add 35kg oil three-phase electric |
add 60kg oil three-phase electric | add 70kg oil three-phase electric | add 70kg oil three-phase electric |
Product Feature
1.This Vertical baler press for pet bottle uses contral, Operation automatic control, Manual button control can adjust the length of bale size.
2.The left,right,upper directions use Float type shrink mouth design,it is good to separate pressure fully automatic.This baler can press many materials.
3.Fully automatic bale,increasing working efficiency.
4.Between pressure cylinder and press head adopts Spherical strcture connections,has good reliability.The sealing elements will have Long service life.
5.We add knifes on the feeding port,increasing cutting efficiency.
6.Low noise hgyraulic circuit design,high efficiency,less faults.
7.Easy to install,no need of floor foundation.
