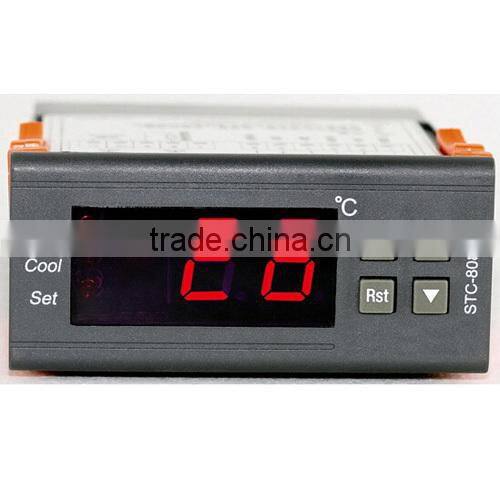

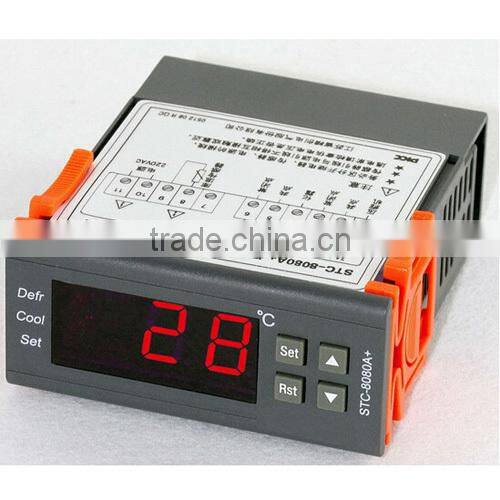

STC-8080A+ Digital Beverage Temperature Controller/food Freezer Digital Temperature Controller

STC-8080A+ Digital Beverage Temperature Controller/food Freezer Digital Temperature Controller photo-1
US$ 4 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
youkong
Model Number:
YK-8080A+
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name youkong
Model Number YK-8080A+
Protection Level IP67
Type Control Box
External Size The front panel size: 75 x width (mm) 34.5

Specifications

STC-8080A+ digital beverage temperature controller/food freezer digital temperature controller/seafood digital temperature cont

pid temperature controller STC-8080A+

STC-8080A+ is a universal temperature controller with single sensor, specify all the functions as refrigerating, defrosting, alarming when temperature exceeds setting limit. Compressor delay protection time is solidified as 3 mimutes, controller start up and close according to the solidified proportional time when sensor error, which can be applied to the industries such as cold storage, refrigerator car, etc.
color grey
control range  -40~50°C
tempeature range  -50~99°C
resolution 1°C
accuracy 1°C

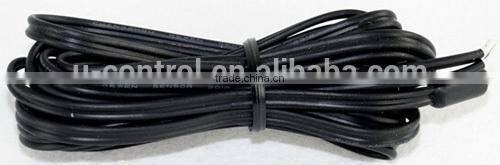

sensor wire length 2 meters including the porbe (Customized support)
material of the probe plastic
display lcd display, celsius
safe level IP 64
style internal, nonwaterproof
working voltage AC220V ±10% 50HZ/60HZ
output load 10A/220VAC  (0.5HP)
power consumption less than 3W
temperature sensor one NTC sensor
machine size 75*34.5*85mm
hole size 71*29mm
packing standard exporting carton
shipment Fedex, DHL, TNT, UPS, TOLL, EMS
paymnet T/T, MoneyGram, PayPal, Western Union, Cash, Escrow
