Specifications
To measure, display and control temperature;Defrosting cycle and defrosting time is adjustable;
Over temperature alarm
Digital temperature controller STC-8080A+
Specifications
STC-8080A+ Temperature Controller for middle-low temperature cold storageaaTo measure, display and control temperature;
Defros
About U-Control
We're the manufacturer and has been customizing digital thermometer and temperature controller for heating and refrigeration equipment manufacturers since 2004.
The products are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.
Technical supply free, one year guarantee and whole life long maintenance.

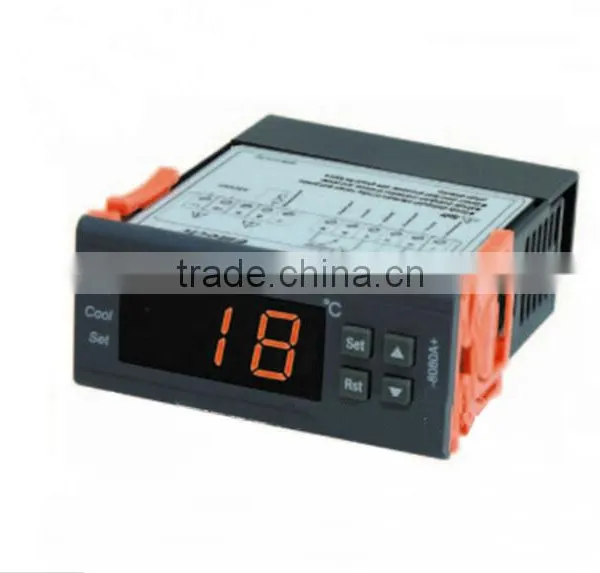

STC-8080A+ Temperature Controller
Features
Temperature measure, display and control;
defrosting control;
Temperature upper and lower limit setting;
defrosting cycle and time setting;
compressor delay;
temperature calibration;
beyond temperature limit alarm.
Universal model.
Suitable for middle-low temperature cold storage,wind cooling cabinet,
kitchen cabinet,operating console,refrigerating display cabinet
Technical Data
panel size: 75×34.5(mm)
Mounting size: 71×29(mm)
Product size: 75×34.5×85(mm)
Technical Parameters:
Power supply:12VAC/DC±10% (24VDC optional)
Power consumption:3W
Temperature measuring and controlling range:-40∼+50
Resolution: 1
Accuracy: ±1
Compressor delay time: 3 minutes (1 minute solidification optional)
Temperature calibration: -5∼+5
Defrosting cycle:0-99 hours adjustable
Defrosting time: 0-99 minutes adjustable
Compressor output contact capacity: 10A/240VAC
Exceeding temperature limit alarm adjustable range: 0∼20

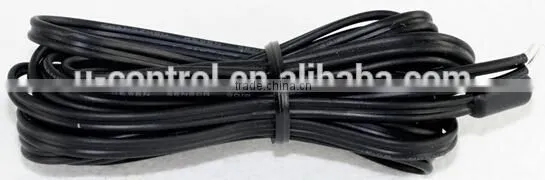

Sensor: NTC
Our Factory
Packing
Payment
T/T, MoneyGram, PayPal, Western Union, Cash, Escrow
To find your target product
Thank you for your interest to our product.
* If you feel confused that our items do not meet your require, contact us, tell us your require, we can do it.
* If you do not really understand the specification, contact us, tell us, we can explain it.
* Any questions, any details, let us communicate.
Service
1. Professional technical team, technical supply free,
2. Customized options
3. Custom product
4. one year guarantee and whole life long maintenance.
There is always a suitable one for you!
U-Controll Electric, your best choice!!
We look forward to hear from you!!!
Nice and lucky day!
