Specifications:
UD1812LB good price in China digital printing TEXTILE MACHINE
Pheaton stable & high quality printer UD-1812LB
1, Equipped with one DX5 print heads 1440 dpi.
2, 4 color printing, vivid color & Eco-friendly.
3, AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, Anti-clogged flash function and capping syste
6, Bearing rail is stable and long durability
| MODEL | UD-1812LB | |
|---|---|---|
| Printhead | Epson DX5 | |
| Number of printhead | 2 Heads | |
| Maximum print width | 1,800mm | |
| Print Speed (m2/h) | Print mode | Standard output(m2/h) |
| RD | 2 PASS 55 | |
| D | 3 PASS 38 | |
| S | 4 PASS 28 | |
| Q | 6 PASS 19 | |
| HQ | 8 PASS 14 | |
| BL | 12 PASS 9 | |
| Ink | Type: | Disperse Dye |
| Color : | 4 Color (C,M,Y,K) | |
| Capacity: | 1L per Main Tank of Each Color | |
| Ink Supply System | Auto Ink Supply System | |
| Media Width | Maximum 1,880mm | |
| MODEL | UD-1812LB |
|---|---|
| Media Type | Polyester |
| Auto Media Feeding System | Equipped (Max. Media Weight 25kg) |
| Auto Cleaning System | Anti-clogged Flash Function & Capping System |
| Pre-heating & Drying System | Equipped |
| Clamp | Equipped |
| Print Interface | USB 2.0 |
| Printhead Height | 2 to 6 mm Above Media Adjustable |
| RIP Software | Ultraprint, Maintop, Photoprint, Wasatch, Ergosoft |
| Input Power | AC 220V, 50Hz/60Hz |
| Machine Dimension / N.W | L3,080 x W990 x H1,260mm / 204KG |
| Package Dimension / G.W | L3,190 x W1,100 x H845mm / 390KG |
Application
This printer can print on different media: country flags, world flags, beach flags, car flags, tent, curtain, table clothes, bags, shop window background printing, etc.
Product Features
1.Competitive to the Japanese eco solvent printers;
2.Equippedwithdouble printheads design, double printing speed compared with single printhead;
3.Automatic feeding and take-up structure;
4.Three ways heating system for fast drying.
5.1440dpi overturns the highest resolution,ensure the best quality.
Pictures to reference:

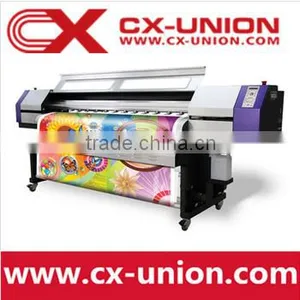

Full looking of the printer UD181LB

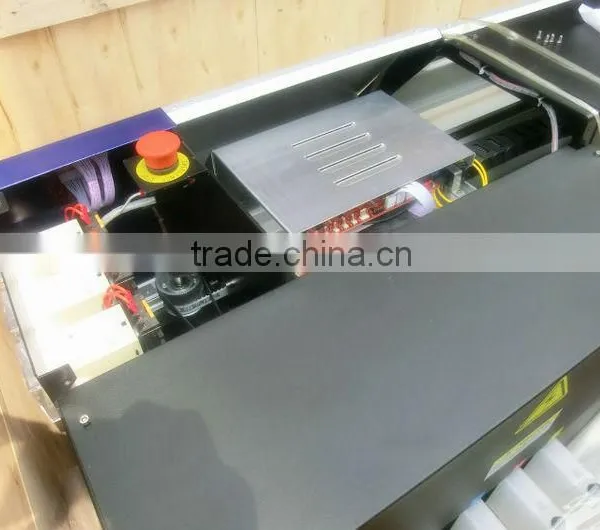

Printing panel and emergency switch
More details
Special design table for textile printing
Print head position , this is with one print head . printer intall 2 print head is avaiable.

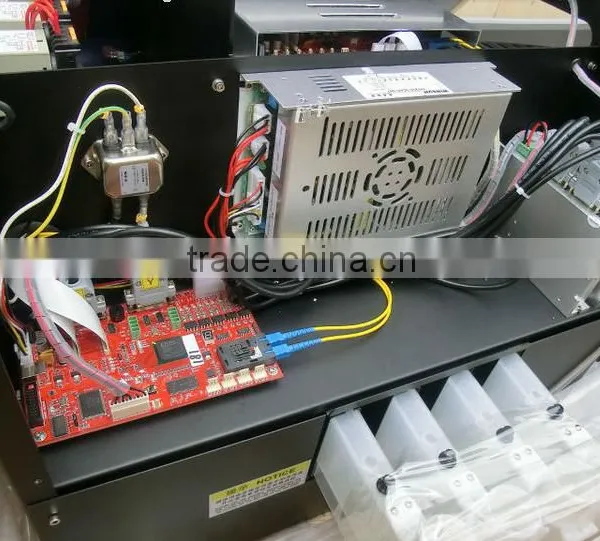

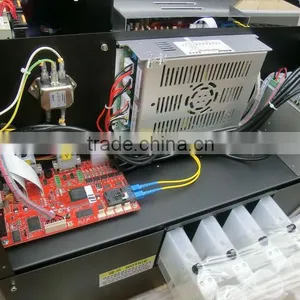

Inside looking
We always keep stcoking all kinds model of printer
