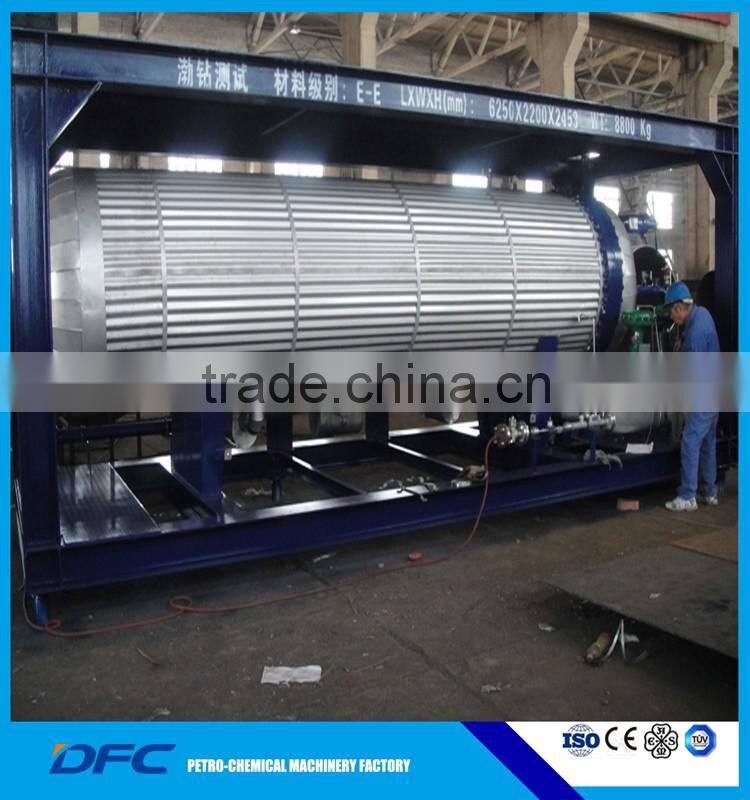

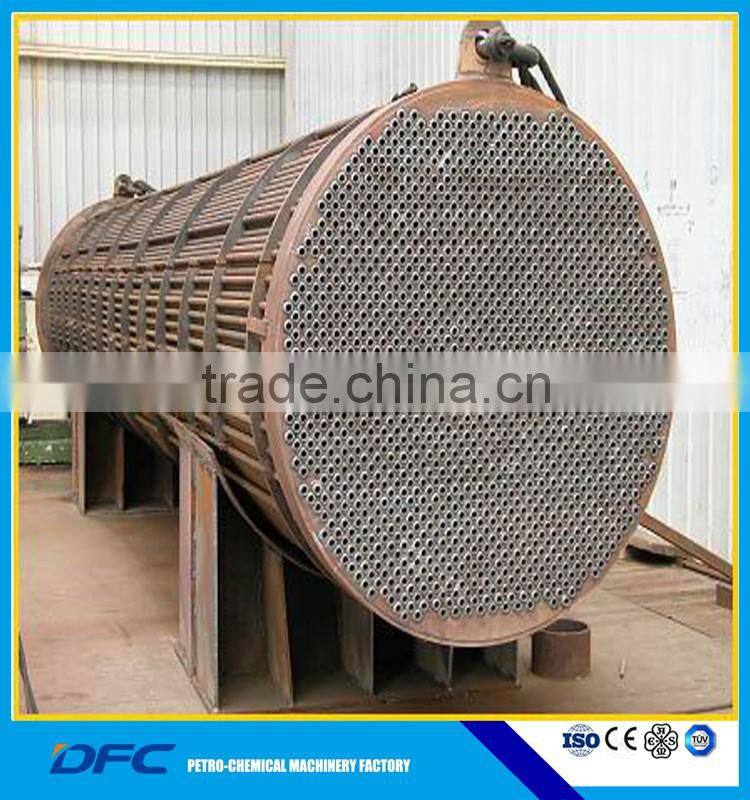

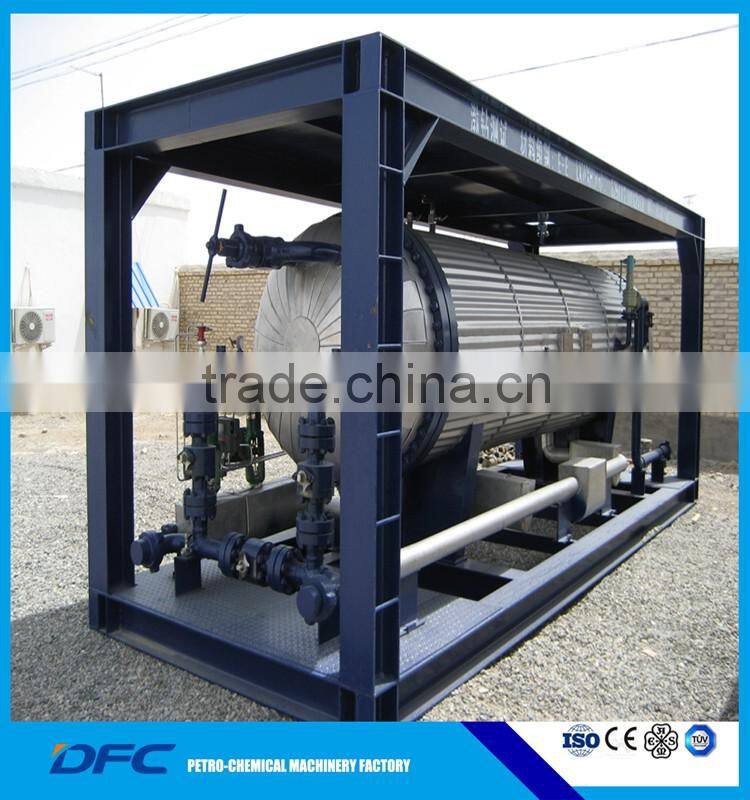

ASME fin tube steam heat exchanger
- 20 Set / Sets per Month
- Tianjin Port
- T/T
- New Aluminum 15L Capapity air oil cooler for concrete mixer truck
- 12L Capapity air oil cooler for concrete mixer truck
- Standard New Oil Cooler for concrete mixer truck
- Standard Hydraulic Oil Cooler for Concrete Mixer Truck
- Aluminum Plate and Bar Hydraulic Oil Cooler for Concrete Mixer Truck
- Hydraulic Oil Cooler for Concrete Mixer Truck
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | leqian |
Model Number: | leqian-102 | Structure: | Tube Heat Exchanger | Liquid Flow Rate: | 2.5m/s |
Maximum Working Pressure: | 10mpa | Voltage: | 3600v | Weight: | 9000kgs |
Dimension(L*W*H): | 4000*4000*20 | Power(W): | 3.5KW | Certification: | CE |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1. Product name: titanium heat exchanger
2. Heat exchange capacity: 4mmbtu/hr
3.Pressure class:
Upstream coil of choke: 5,000 psig (35 MPa)
Downstream coil of choke: 2,000 psig
Shell:150 psig
4.Temperature class:
Coil: -20 ~ 400 deg F (-29 ~ 200℃)
Shell: 400 deg F (200℃)
5. Steam pressure: 0.8Mpa
6. Heat transfer area: 23m2
7. Net weight: 9000kg
8. Overall dimension: 6,650×2,200×2,400 (length x width x heigh)
Hebei Leqian oilfiled machinery Co., Ltd, which obtained the design and manufacture permit for class - D2 and D1 pressure vessels in 1988, manufacture permit for class-A2 pressure vessel in 1998, ASME Boiler and Pressure Vessel Code "U" stamping authorization
