Model Number

Part Number

Audio SRC

HDMI to SDI

Model A

8ch

Model B

2ch

Model C

No SRC

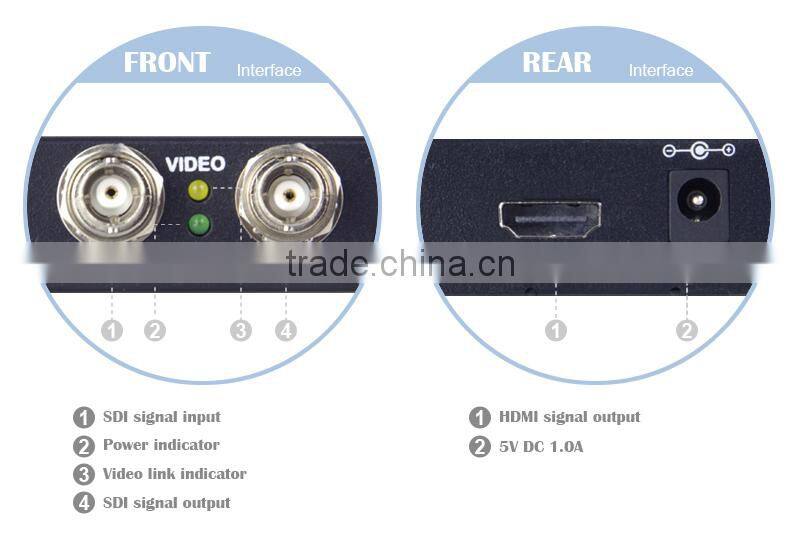

Interface

1 HDMI input port (female type A with holes); 2 SDI outputs (female type-BNC); 5V DC in (Ø3);

Power consumption

<1.85W

Dimension

(L x W x H): 82 x 55 x 30mm

Net weight

0.15kg per unit

Input video formats

HDMI v1.3a, 30/36 bits per pixel,RGB or YUV,

SD, HD,525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60

HDMI Standard Type A connector

Output video formats

3G, HD, and SD-SDI (auto-selected),

SMPTE-259/274/292/296/372/424/425,

2x BNC

Input audio formats

HDMI embedded audio,24 bit/48KHz or any frequency HDMI audio input (SRC function). Maximum 8 channels

Output audio formats

SDI embedded audio,24 bit/48KHz, 8 channels max

Indicators

Power-Green, Video link-Yellow

Temperature range

0~40°C (operation), -20~60°C(stock)

Compliance

FCC; CE
