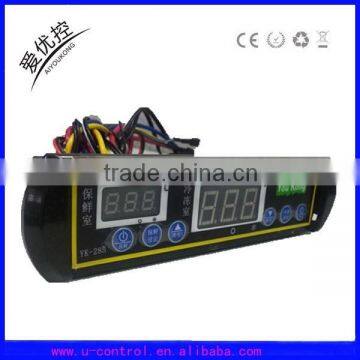

smart thermostat temperature controller/pid digital temperature controller YK-285/ digital temperature controller thermostat
Specifications:
- Working voltage: AC220V ±10% 50HZ/60HZ
- Output load: 30A/250V/AC (Can be applied directly to a load, over to connect AC connector)
- Power consumption:≤3W
- Working environment: -10℃~50℃,RH≤90%
- Display/control range: -45℃~45℃
- Control range : -45℃~80℃
- Resolution: 1℃, accurancy: ±1℃
- Input signal: two channel temperature measuring sensor(fresh/refrigeration control), 10K×2Meter
- Machine size:176(W) ×41(H) ×43(D)mm
- Hole size:138(W) ×32.5(D)mm
- Light: 10A/250VAC
Features:
1.Integrative control;
pressor delay protection;
3.power switch;
mory set;
5.dual window/temperature display;
6.light control
Functions:
*dual window display and control temperature, lighting control, power switch, set memory* restore factory
*settings, set memory, self-diagnosis.
*Input signal: two channel temperature measuring sensor(fresh,frozen,control), 10K X 2 meters.
*Refrigeration compressor relay: normally open 30A/250VAC
(can be used for 1P compressor, beyond the converter)
*Refrigeration compressor relay: normally open 30A/250VAC
(can be used for 1P compressor, beyond the converter)
*Lighting1: normally open 10A/250VAC
*Lihgting 2: normally open 10A/250VAC
