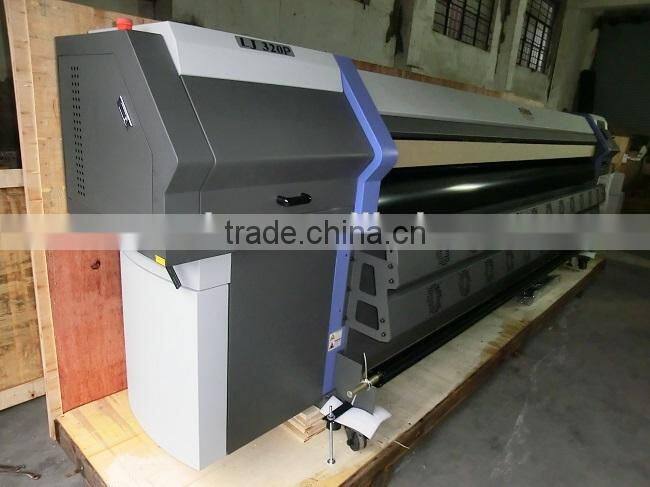

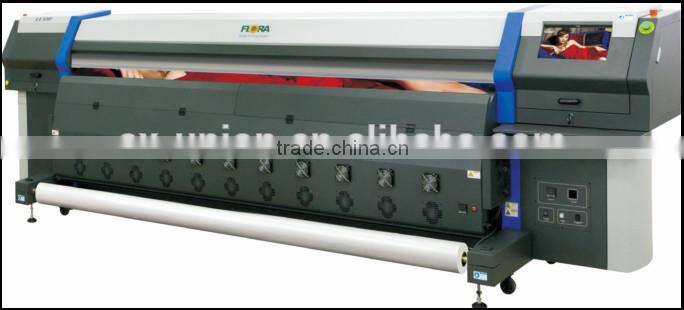

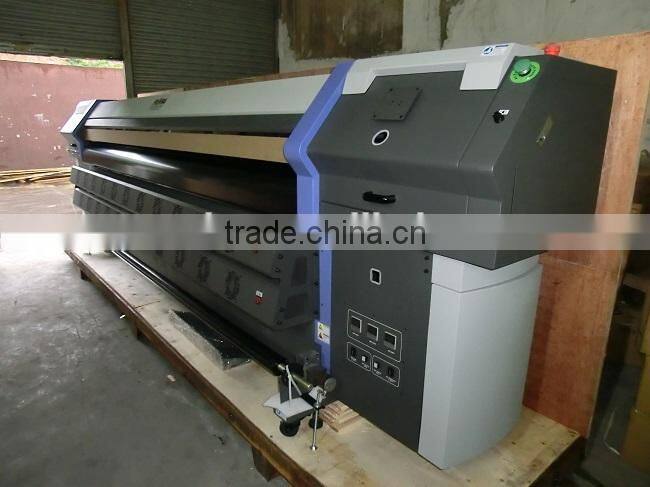

Flora LJ320p Spectra Polaris Printhead Industrial Photo Solvent Inkjet Plotter Printer

Spectra Polaris LJ320P Solvent Printer General Information

Printing methods:

Drop-on-demand piezo electric

Ink reservoirs:

Refillable on the fly while printing / 4000ml per color

Ink characteristics:

Solvent-based pigments

Printhead controls:

Print head temperature and voltage are software adjustable

Media feeding system:

Free spin / motor-driven lazy loop for optimal banner tension

Media take-up system:

Automatic motor-driven spool capacity

Media handling options:

Roll to roll

Drying system:

Digitally controlled heater and front-mounted fans

RIP software:

Photoprint 6.1 (Windows 2000, Windows Xp Pro Sp2)

Color management:

ICC based color, adjustment curves, density adjustment

File formats:

Bitmaps, TIFF , JPEG , Postscript 3 , EPS , PDF etc.

Electrical requirements:

50Hz/60Hz , 220V(± 10%)> 20A

Environmental requirements:

Ambient temperature : 20-30 oC , Relative humidity : 40-70%

Warranty:

1 year (please consult your local dealer for details)

Technical Specification

Model:

LJ 320P

Printing heads:

Spectra Polaris printheads

No. of Print heads:

4/6/8 heads

Color:

4 colors (CMYK) or 6colors(CMYK, LC, LM)

Resolution options:

300x400, 300x600, 400x600, 600x600, 600x800, 800x1200

Printing Speed: Draft Quality: Standard Quality: High Quality: Ultra Quality:

Up to 110sqm/hr Up to 75sqm/hr Up to 55sqm/hr Up to 35sqm/hr

Maximum media width:

330 cm

Maximum printing width:

320 cm

Maximum roll dimensions:

Φ 35 cm

Media Types:

Paper, advertising banner, PVC, mesh fabrics, adhesive vinyl etc.

Outdoor durability:

2 years

Dimensions:

5.03mL x 1.07mW x 1.75mH

Weight(Net):

700 kg
