Specifications
planetary concrete mixers1. planetary cocrete mixers for brick, precast and bridge
2. CE, ISO9001
3. high quality
Planetary concrete mixer

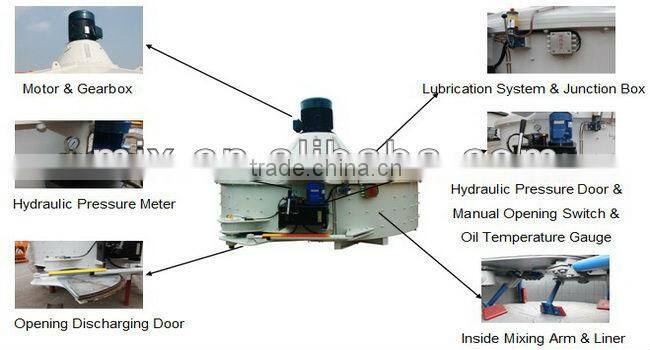

MX 500/750 Planetary Concrete Mixer Performance Advantages:
1. There is no shaft end leakage.
2. Besides mixing ordinary concrete, it can also mix colour concrete, steel fiber concrete, foamed concrete, glass, ceramics and fireproof materials.
3. According to client’s requirements, it can open three discharging door at the most.
4. High chrome alloy and steel castings are used as the wear-resistant parts to extend the machine’s service life.
5. Advanced hydraulic pressure system is adopted to open and close the discharging door. Under the situation of sudden power failure, the manual pump can be used to open the discharging valve for emergency discharge to avoid agglomeration.
6. Advanced planetary motor and gearbox is adopted to make the whole machine run stably, durably, in low noise and with large output torque.
Main Parameters of MX Series Concrete Mixers
For detailed technical data and configuration kindly inquire us.
Item |
Type |
|||||||
MX330 |
MX500 |
MX750 |
MX1000 |
MX1500 |
MX2000 |
MX2500 |
MX3000 |
|
Output capacity |
330L |
500L |
750L |
1000L |
1500L |
2000L |
2500L |
3000L |
Input capacity |
500 L |
750 L |
1125 |
1500 |
2250 |
3000 |
3750 |
4500 |
Diameter of mixing trough mm |
1540 |
1900 |
2196 |
2496 |
2796 |
3100 |
3400 |
3400 |
Mixing power Kw |
15 |
18.5 |
30 |
37 |
55 |
75 |
90 |
110 |
Discharging power Kw |
2.2 |
2.2 |
2.2 |
3 |
3 |
4 |
4 |
4 |
Scraper nr |
1/2 |
1/2 |
1/3 |
2/4 |
2/4 |
3/6 |
3/6 |
3/9 |
Paddle nr |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Discharging paddle nr |
-- |
-- |
1 |
1 |
1 |
2 |
2 |
2 |
Weight Kg |
1700 |
2000 |
3500 |
6000 |
7000 |
8500 |
10500 |
11000 |
Dimension (L*W*H) mm |
1910 *1590 *1747 |
2270 *1955 *1832 |
2520 *2280 *2450 |
2858 *2590 *2370 |
3250 *2916 *2530 |
3424 *3217 *2790 |
3690 *3528 *2790 |
3690 *3528 *3070 |
Lifting power Kw |
4 |
4 |
7.5 |
11 |
15 |
18.5 |
-- |
-- |
Skipper capacity L |
580 |
870 |
1300 |
1740 |
2610 |
3480 |
-- |
-- |
Skipper capacity Kg |
870 |
1305 |
1950 |
2610 |
3915 |
5220 |
-- |
-- |
Skipper speed m/s |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
-- |
-- |
Apply
Our Advantages:
1. Trade directly with factory who has 10 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. Best manufacturer in North of China.
Related Keywords:
concrete mixer, dry mortar /cement mixer, concrete mixing/batching plant, screw conveyor.
