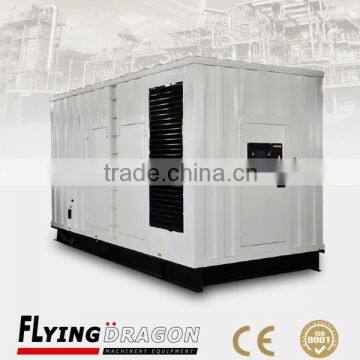

Worryfree 400KW 500kva container diesel generator powered by 2506A-E15TAG2 engine

Diesel Generator

Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA

Perkins Engine(UK) 8KVA - 2000KVA

Volvo Engine(Sweden) 85KVA - 700KVA

Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA

Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA

Shanghai Engine (China)  60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA

Diesel generator set   Silent / Soundproof type – Open type

Safety – Stability – Economy - Sufficient power

1. Powered by famous diesel engine – Cummins, Deutz, Doosan,Perkins, Weichai, MTU, Lister Petter

2. Brushless alternator -- Stamford, Leroy Somer, Marathon, Hengtong.

3. Solid steel outer skin – 2MM to 4MM steel

4. High density sound-absorbing material -- sound insulation, fireproofing

5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.

6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet

7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4standards

Prime output power: 8kw-1600 kw (10kva-1600kva)

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Engine Feature

1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section

4.Engine driven cooling fan with protection guard

5.Steel wire braided fuel lines, vent and rain fittings

6.Set mounted acid battery installed with leads and terminals

7. Noise level: 65dB to 75DB from 7meter away

Alternator Feature

1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating

5.Automatic voltage regulator (AVR)

6. Phase: 3-phase, 4-wire

7. Connection: Y or other type connection

8. Rated speed: 1,500rpm / 1,800rpm

9. Excitation: harmonic excitation or phase compound or brushless

10. Voltage regulation: automatic

11. 1.0% voltage regulation (max.) in static conditions

12.Protection class: IP 22 or IP23

13. Connect with engine:Direct coupled with flywheel

Control System

1.manual / auto start and protection module
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.

3.New integrated controllers in manual and remote start application.

4.Featuring full gen-set monitoring and protection.

5.Powerful graphic display, Icons, symbols and bar graphs

6. High functionality set new standards in gen-set control.

7.Special low temperature version is also available.

8. With AMF control panel or with ATS (automatic transfer system)

9. With EPA certification

Packing

Wooden case or plywood case

Warranty

Warranty:Guarantee for one year or 1200hours from ex-factor date.During the repair time,we will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material.After expiration,we will supply cost spare part for you to repair it

400kw 500kva perkins container generator more details,pls consult MS yuanyuan.

Q1: How is your Warranty?
Warranty: All FLYING DRAGON MERCHANDISE are warranted in accordance with our warranty terms

for a period of 12 months from date of dispatch or 1,000 running hours from date of commissioning whichever comes earlier.

Q2: Any advantages about your company?
 -- Fast delivery time
 -- Good design and high quality
 -- Good service after sale
 -- High quality with good price help you get more benefit and beat your competitors

Q3: Can you supply OEM service?
Yes, we can offer OEM service

Q4: How about the service after sale?
We have agents spread all over the world, our service network spanning more than 50 countries so we can ensure fast and good service for our clients. We are recruiting agents, welcome you to be our friend and get a win-win cooperation .
