LIYU PZR-KM series Inkjet Printer
Highlight Features:
1,The PZR series grand format line is ideal for high-volume production printing in excellent quality with industrial Konica Minolta KM512/14PL printhead, Max. Resolution up to 1440dpi, professional indoor quality, high durability.
2,Flash-lamp has been adopted in the station side to facilitate head cleaning Led-lamp has been equipped under the cover to facilite checking print quality.

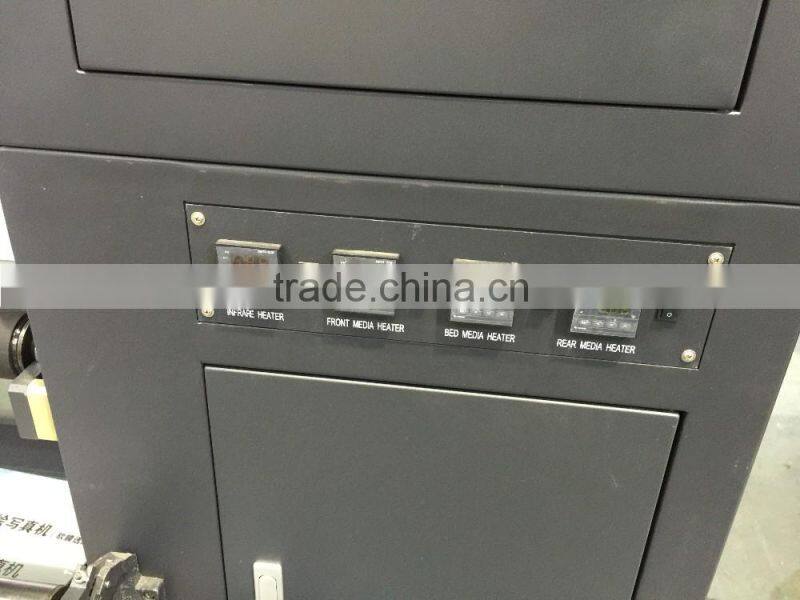

3,Front/middle/rear three sections of heating adjustable, more smooth feeding with high quality print.
4,Front/ Rear pinch roller lift handle, more easier to load media.
5,Enhanced vacuum fans, force adjustable, three-sections of vacuum control individually by 3.2m.
6,Front/rear Telfon heating plate, broadbanding printing platform, plus the powerful infrared heating system amazing fast drying ink and media for high speed applications.
7,With high quality silent linear guider and noiseless synchronous belt enables a smooth and silent carriage movement.
8,Optional functions:Print-head plate heating system.
9,Applications:Restaurant,Super Market,Art&entertainment halls, Airport,stations,soft film light box,soft film ceiling decoration,etc.
Technical Specifications:
Mdel | PZR3204 /PZR3206-KM | PZR3208-KM | |
Print Tech | Piezo continuous drop-on demand(DOD) | ||
Printhead | 4/6 x KM512MN | 8 x KM512MN | |
Max.Resolution | 720 x 1440dpi | ||
Image Size | 3.2m/126in. | ||
Media Size | 3.29m/130in. | ||
Media Type | wallpaper, light box cloth, vinyl, single transparent, body paste | ||
Media Transmission | Roll to Roll | ||
Printing Speed | Draft mode | 60sq.m/h | 120sq.m/h |
Production mode | 30sq.m/h | 60sq.m/h | |
High quality mode | 11sq.m/h | 22sq.m/h | |
Ink Type | K/C/M/Y or K/C/M/Y/Lc/Lm | ||
Interface | USB2.0 | ||
Auto.take-up and feeding system | Standard: front/back tension system Optional single/double roller feeding | ||
Table Pressure | 50kg/ | ||
Packing Size(L×W×H) | 4.57m*1.0m*1.6m | ||
(L×W×H) | 4.6m*0.85m*1.4m | ||
G.Weight | 650Kg | ||
Power requirement | AC 110/220V±10% >10A 60/50Hz | ||
Environment | Temperature:10℃~30℃,Humidity :40%~70%RH | ||
Outdoor Durability | two years | ||

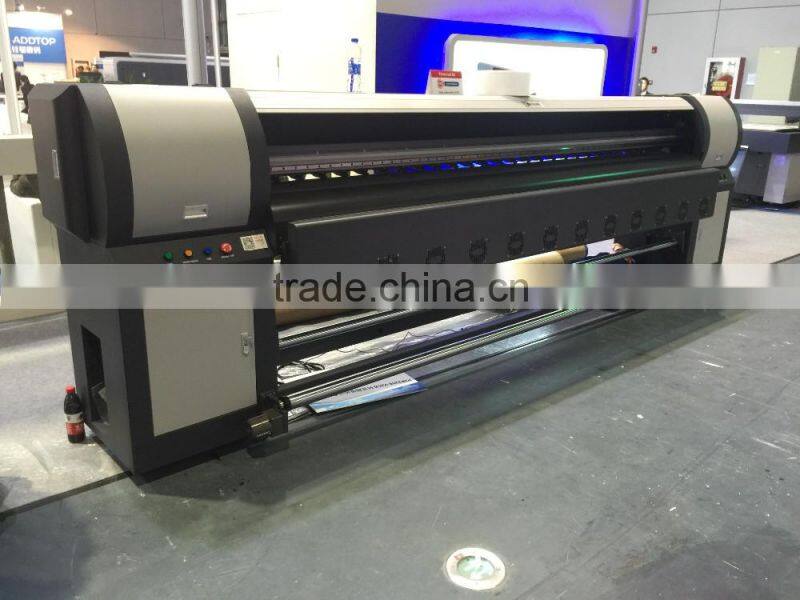

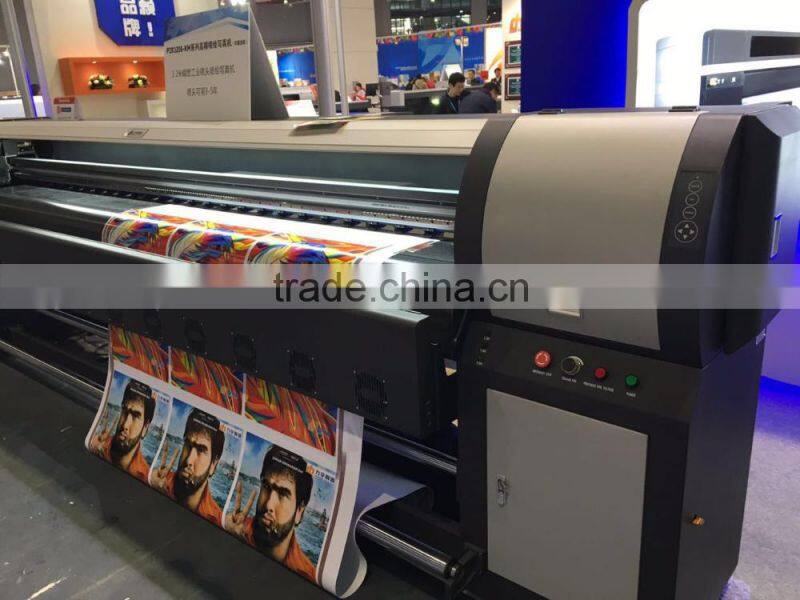

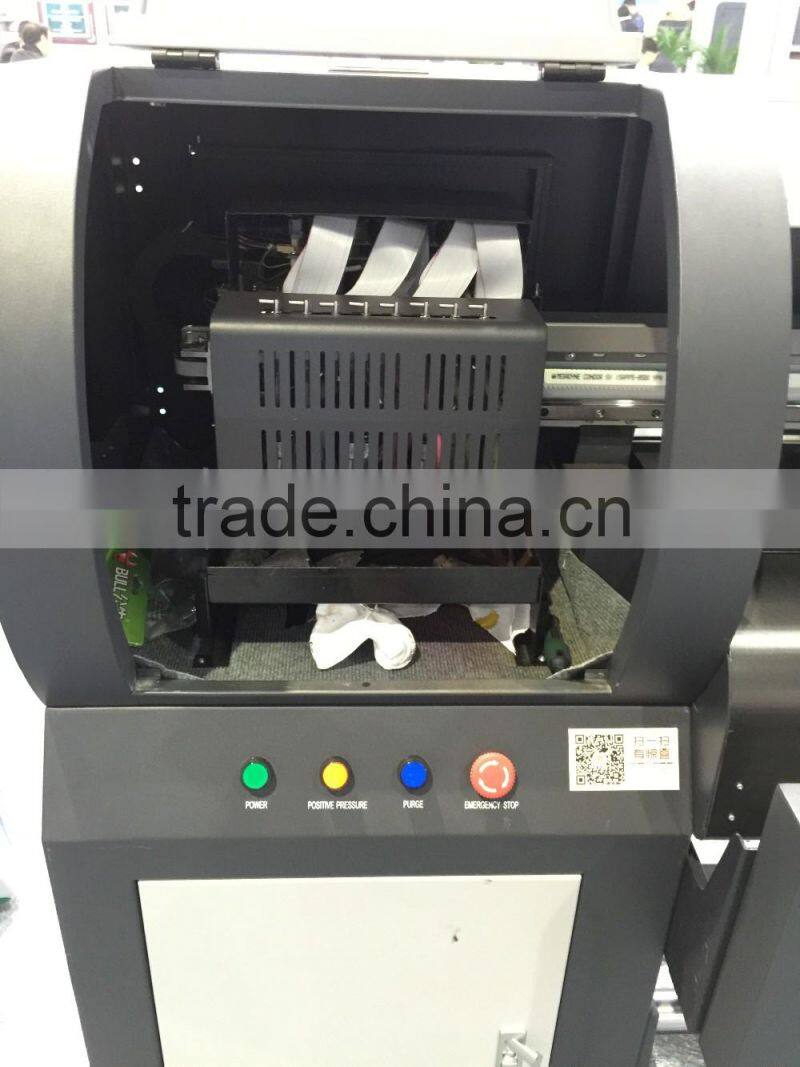

Picture for reference:
Printer was packed by the wooden box with great protection and send to customers .
You may interesting in this print heads . We provide 100% original and brand new products.
Technical Support :
1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .
2. All kinds of original spare parts for the machine to ensure your machine running smoothly .
What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .
This month our company has discount for the machine . And the shipping cost will be 30% off. Please feel feel to contact us.
How to order?
Step 1. Contact with me about the details and product you need.
Step 2. Confirm the order to us, provide the following information, then we will send you Proforma Invoice (PI) for your reference.
Order Details ( Items and Quantity), Company Name, Contact Person, Address, Telephone, Sea port of destination
Step 3. Send payment T/T in advance and notify us (send Bank Slip to us)
Step 4. We will deliver the goods within 5 working days after receipt of your payment, and keep you informed about the order status.
Balance payment should be paid upon copy of B/L.On receipt of balance payment, we will send you original shipping documents by DHL and let you know the tracking number.
Step 5. Confirm to us upon receipt of order.
Contacting information :
Name : Gary Huang
Tel: 0086 020 32053300
Cellphone and whatsapp : +0086 15521034362
Skype: Gary Huang
