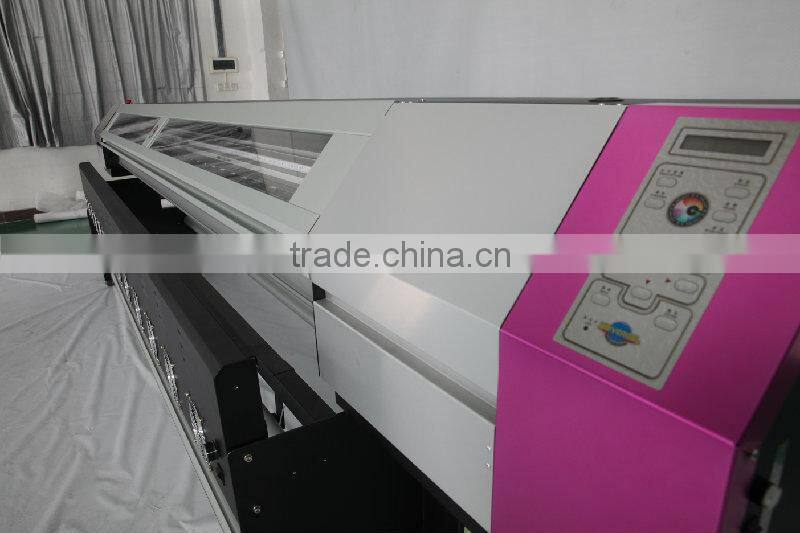

Galaxy UD-3212LD Large Format inkjet digital vinyl eco solvent printing machine for sale

MODEL

UD-3212LD

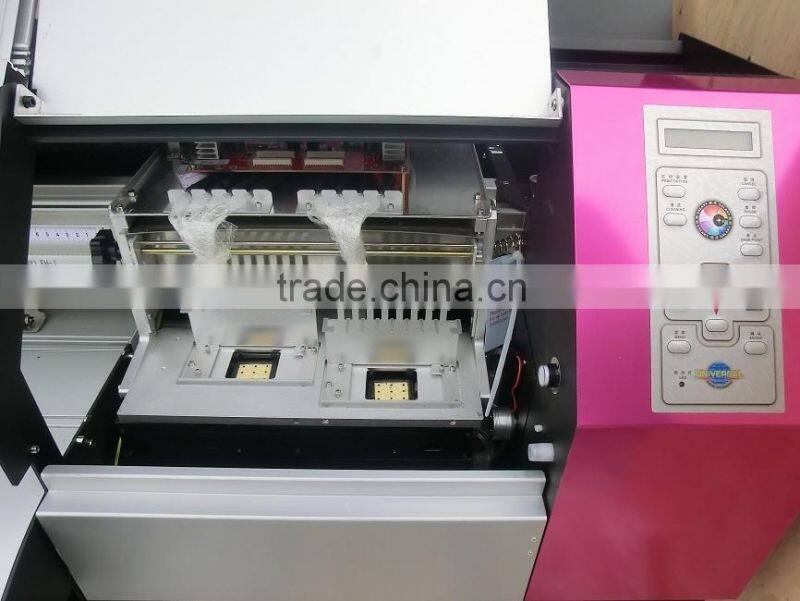

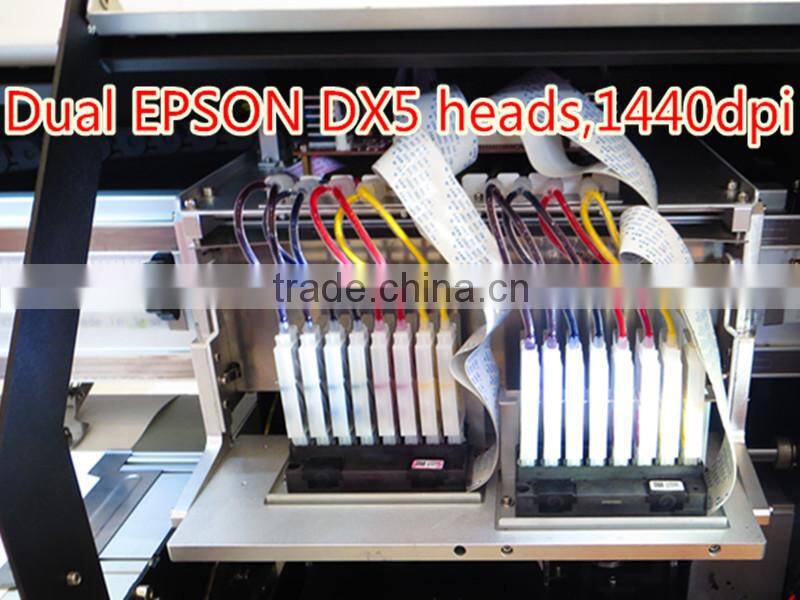

Printhead

Epson DX5

Number of printhead

2 Heads

Maximum Print Width

3,200mm

Maximaum Media Width

3,300mm

Print Speed (m2/h)

Print mode

Standard output(m2/h)

D

3 PASS 44

S

4 PASS 33

Q

6 PASS 22

HQ

8 PASS 16

BL

12 PASS 11

Ink

Type:

Water based/ECO Solvent Ink

Color :

4 Color (C,M,Y,K)

Capacity:

1L per Main Tank of Each Color

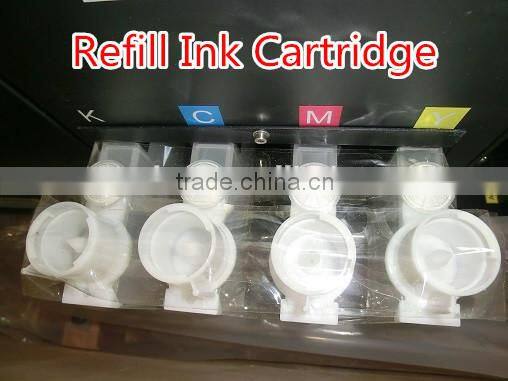

Ink Supply System

Auto Ink Supply System

MODEL

UD-3212LD

Media Type

Ceilling film, Vinyl, PS Board, KT Board, PVC Foam Board, Window Flim, Polyester, Flex, Back-lit Film, etc.

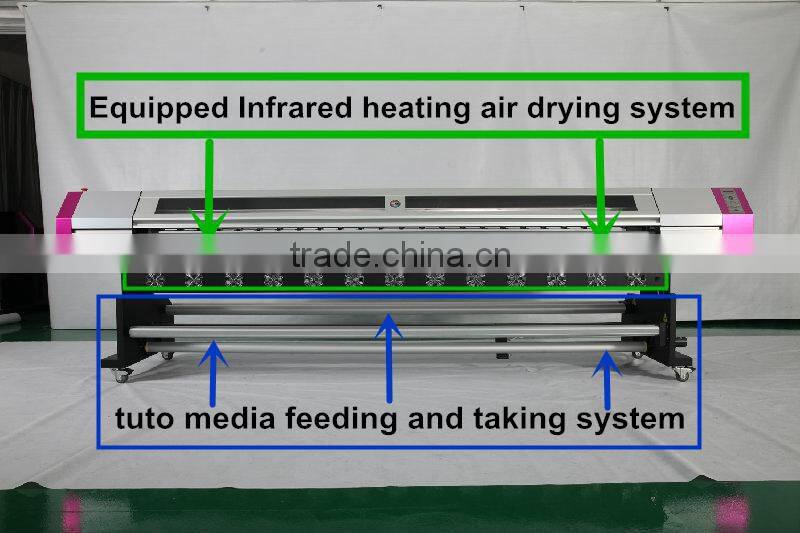

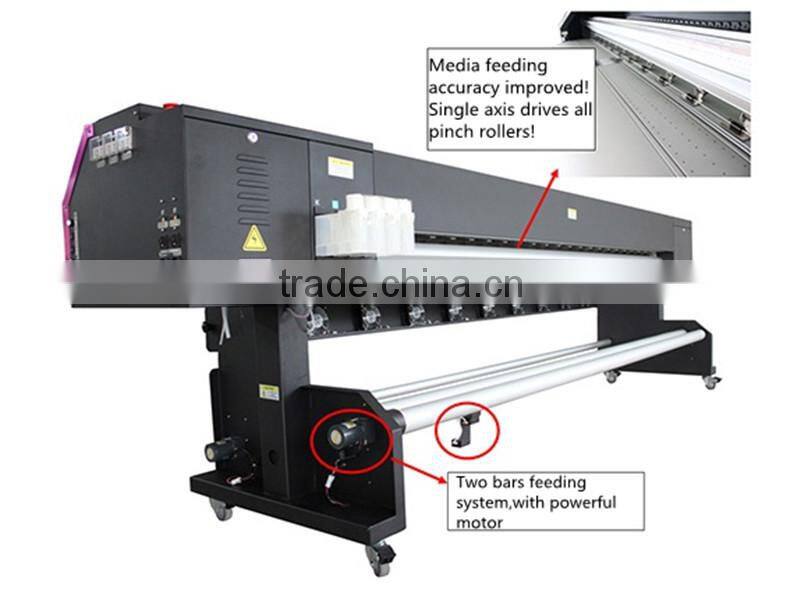

Auto Media Feeding System

Equipped (Max. Media Weight 40kg)

Auto Cleaning System

Anti-clogged Flash Function & Capping System

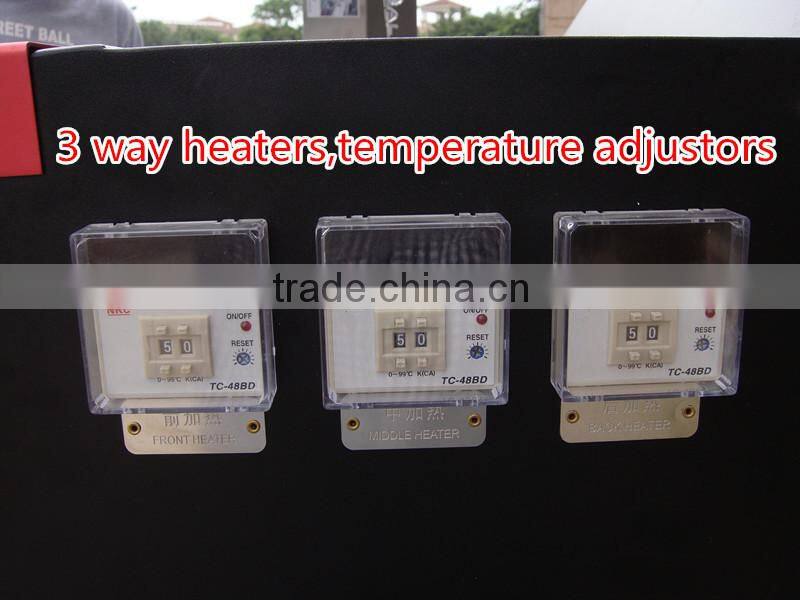

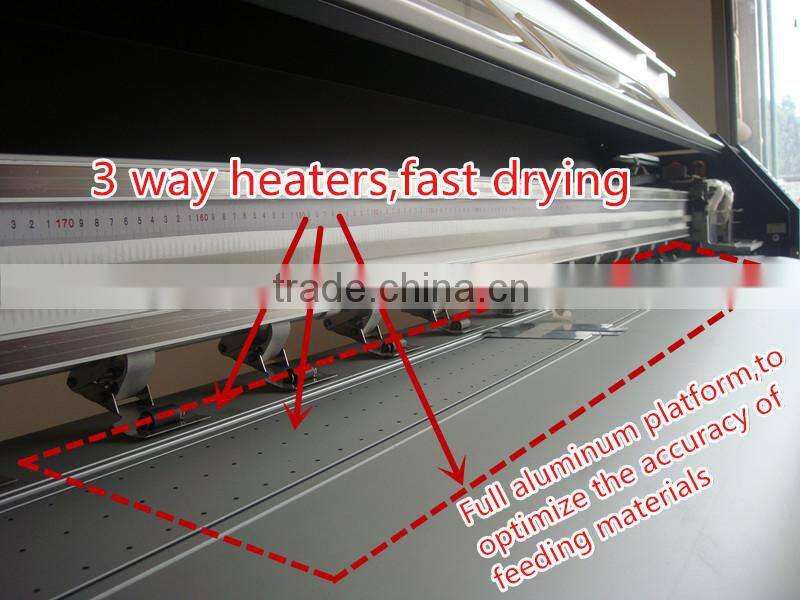

Pre-heating & Drying System

Equipped

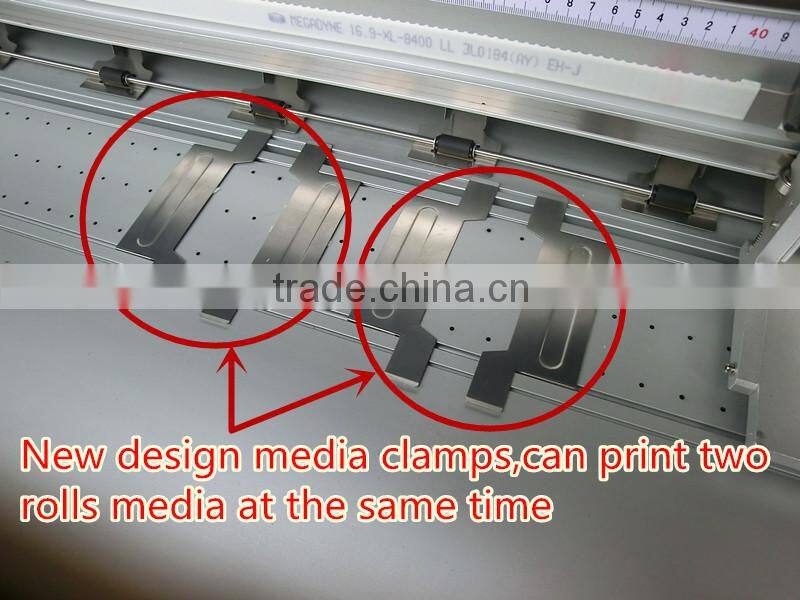

Clamp

Equipped

Print Interface

USB 2.0

Printhead Height

2 to 10 mm from Media

RIP Software

Ultraprint, Maintop, Photoprint, Wasatch, Onyx

Input Power

AC 220V, 50Hz/60Hz

Operating Environment

Humidity: 20-80% (Recommend 40-60%)

Temperature: 15-35C(Recommend 20-32C)

Machine Dimension / N.W

L4,500 x W905 x H1,260mm / 304KG

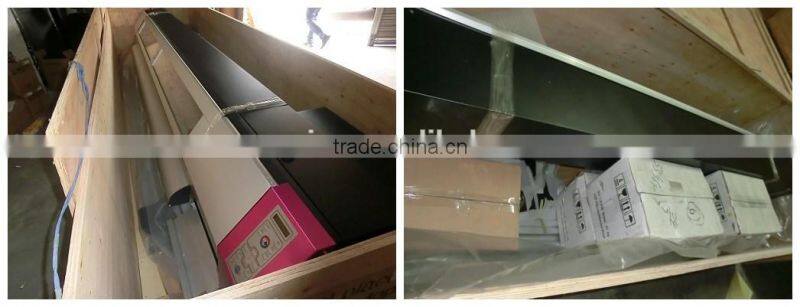

Package Dimension / G.W

L4,590 x W1,100 x H940mm / 547KG
